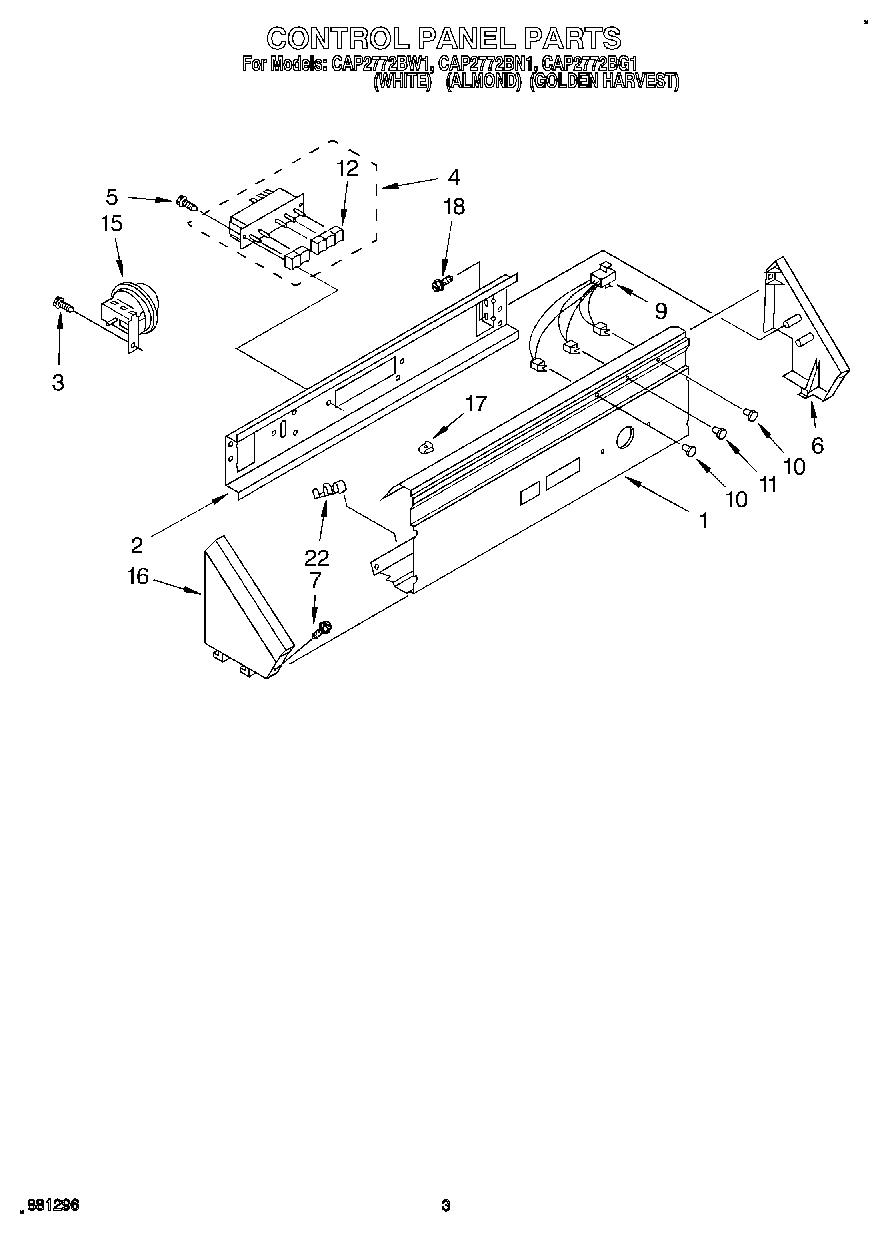

CAP2772BN1 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Console (For White & Almond & Golden Harvest Models)
2	Bracket, Control
3	WP90767 Whirlpool Screw
4	Switch, Cycle Selector (Includes Illus. No. 12)
5	WP965173 Whirlpool Dishwasher Screw
6	End Cap (R.H.)
7	WPL 64211
10	WP3348109 Whirlpool Light Lens
11	WP3348110 Whirlpool Light Lens
12	Button (4)
15	Switch, Water Level
16	Cap, End (L.H.)
17	WP689559 Whirlpool Nut
18	WPW10109200 Whirlpool Screw
22	W10113937 Whirlpool Clamp
