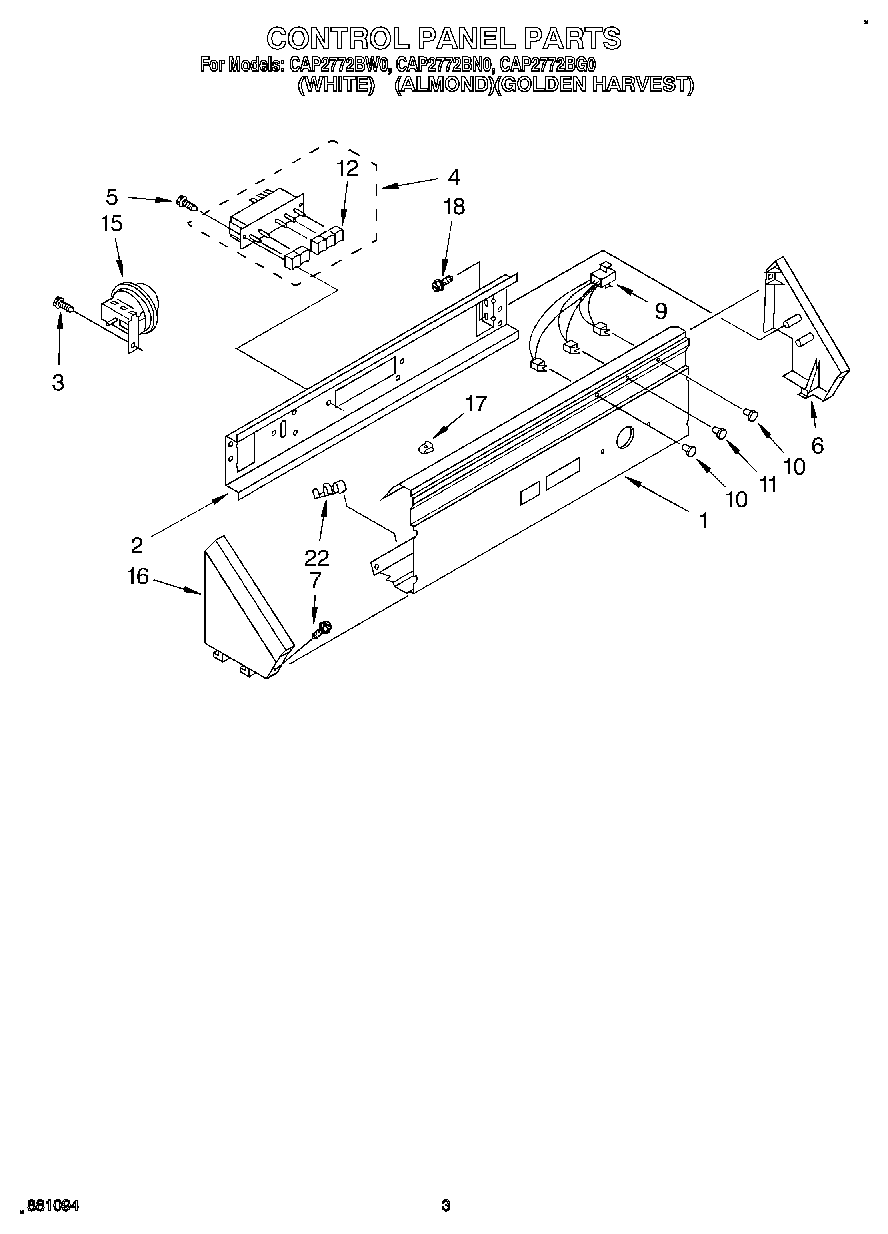

CAP2772BW0 02 – CONTROL PANEL

CAP2772BW0 02 – CONTROL PANEL

Written by

in

CAP2772BW0 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Console (For White & Almond & Golden Harvest Models)
2Bracket, Control
3WP90767 Whirlpool Screw
4Switch, Cycle Selector (Includes Illus. No. 12)
5WP965173 Whirlpool Dishwasher Screw
6End Cap (R.H.)
7WPL 64211
10WP3348109 Whirlpool Light Lens
11WP3348110 Whirlpool Light Lens
12Button (4)
15Switch, Water Level
16Cap, End (L.H.)
17WP689559 Whirlpool Nut
18WPL 355326
22W10113937 Whirlpool Clamp
