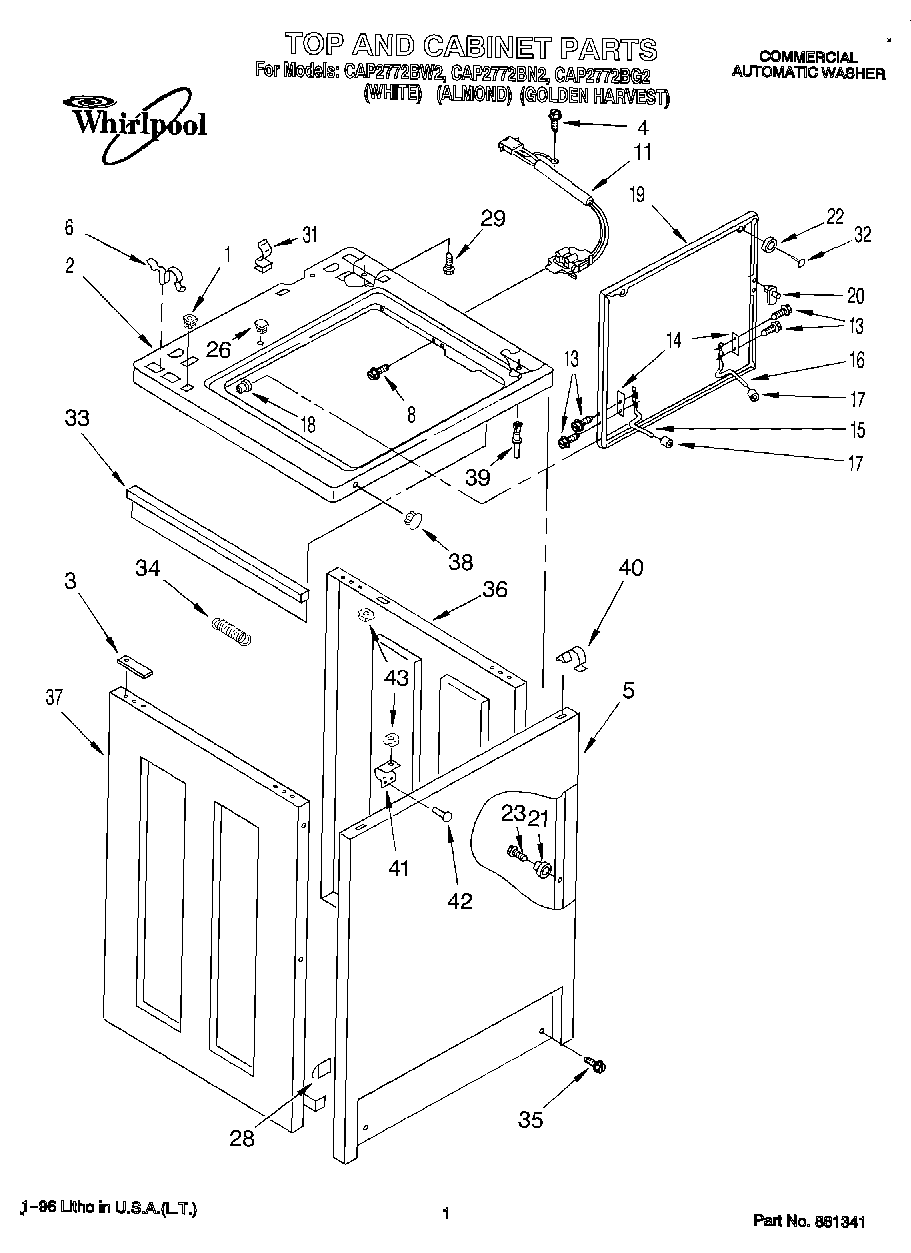

CAP2772BW2 01 – TOP AND CABINET, LIT/OPTIONAL

CAP2772BW2 01 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

CAP2772BW2 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3356054
	WPL LIT3360613
	WP285195 Whirlpool Sealer Assembly
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WPL LIT881341
	Shipping Kit
	Golden Harvest (Uncut)
	Golden Harvest
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	Almond (Uncut)
	350572 Whirlpool Oil Transmission 15 Oz
1	Nut, Push-In (2)
2	Top (For Almond Model)
2	Top (For Golden Harvest Model)
2	Top (White)
3	Spacer, Cabinet To Top (4)
4	SCREW
5	WP3358500 Whirlpool Panel
5	Panel, Front (For Golden Harvest Model)
5	Panel, Front (For Almond Model)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (For Almond Model)
19	Lid (For White Model)
19	Lid (For Golden Harvest Model)
20	WP358684 Whirlpool Strike Assembly
21	Locator (4)
22	BUMPER
23	WP9741232 Whirlpool Dishwasher Screw
26	Stop, Push-In Top
28	WP98234 Whirlpool Nut
29	Screw (2)
31	WP90016 Whirlpool Clip
32	WP356907 Whirlpool Rivet
33	Sheild, Slotted
34	Spring, Tension
35	WP3373329 Whirlpool Dishwasher Screw
36	Panel, R. H. (White)
36	Panel, R. H. (Almond)
36	Panel, R. H. (Golden Harvest)
37	Panel, L. H. (White)
37	Panel, L. H. (For Golden Harvest Model)
37	Panel, L. H. (Almond)
38	WP387371 Whirlpool Plug
39	Pin, Locator (2)
40	WP18776 Whirlpool Lock
41	Bracket, Lock
42	Rivet (2)
43	WP90406 Whirlpool Nut
