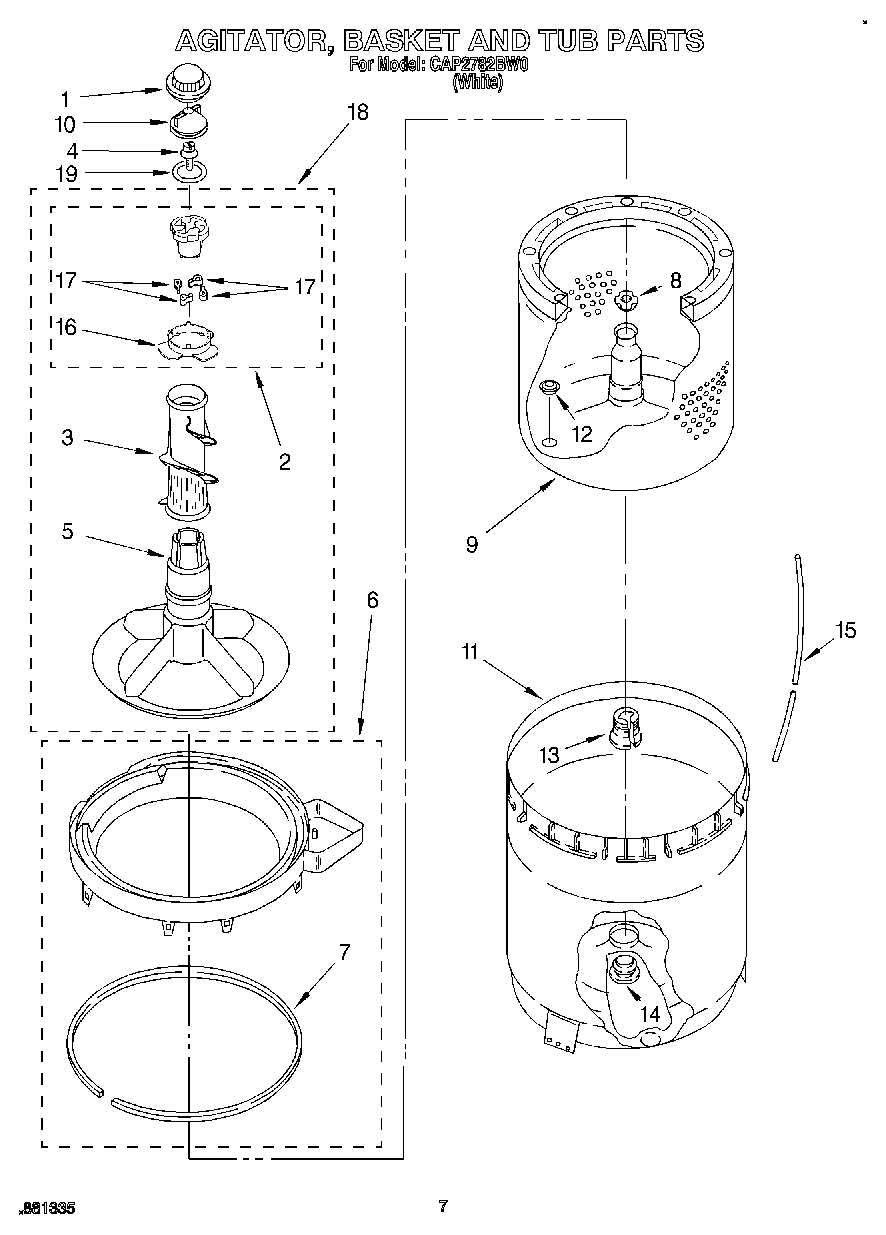

CAP2782BW0 05 – AGITATOR, BASKET AND TUB

CAP2782BW0 05 – AGITATOR, BASKET AND TUB

Written by

in

CAP2782BW0 05 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2285811 Whirlpool Washer Agitator Repair Kit
3WP3363003 Whirlpool Agitator Mover
4WP358237 Whirlpool Agitator Bolt
5AGITATOR
6W10880720 Whirlpool Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389328 Whirlpool Basket
10WPW10074580 Whirlpool Agitator Inner Cap and Seal
1163849 Whirlpool Outer Tub Primary Assembly
12Snap-In-Plugs (4)
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
16WP3363661 Whirlpool Bearing Cam
1780040 Whirlpool Washer Agitator Dog Kit
18Agitator, Asy (Complete)
19WPW10072840 Whirlpool Seal Assembly
