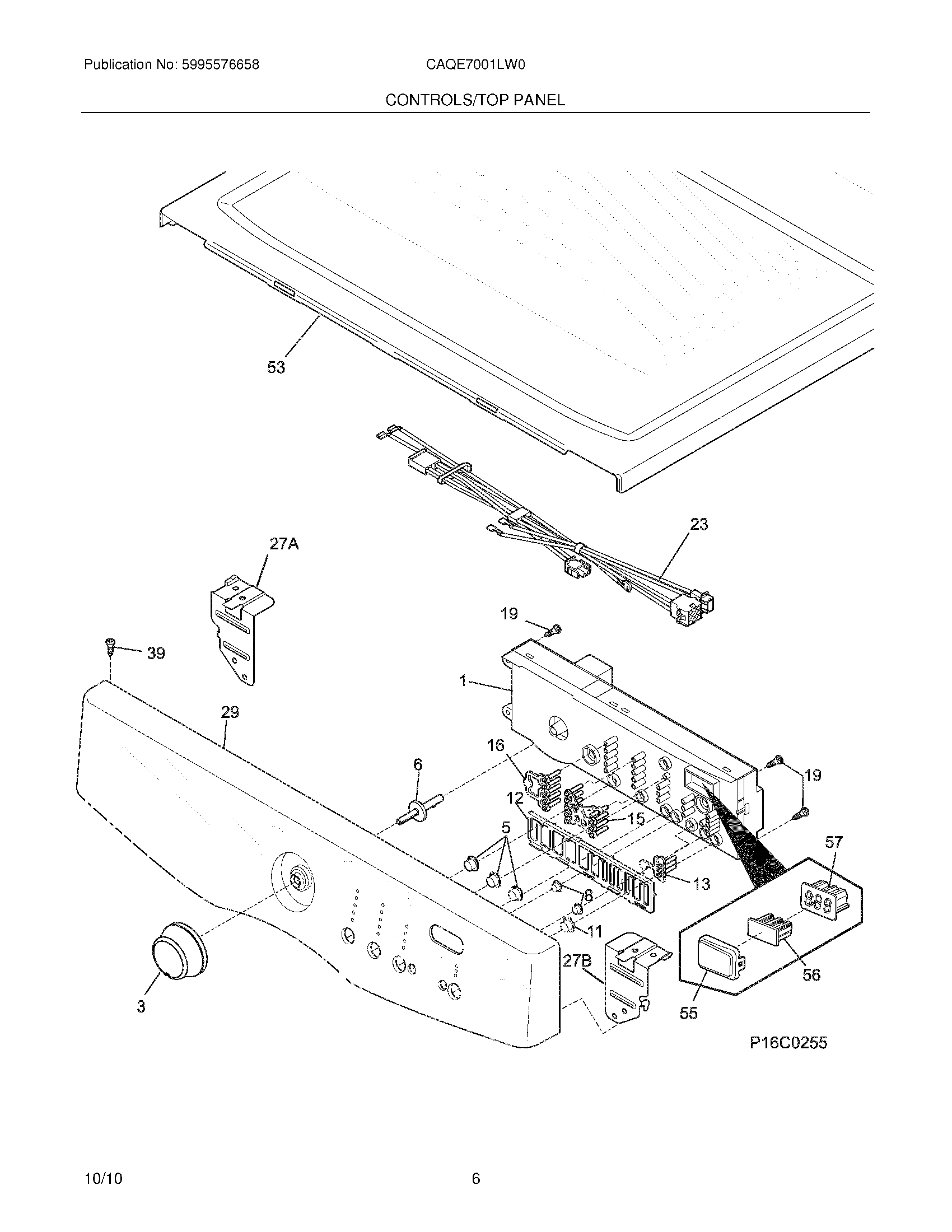

CAQE7001LW0 07 – CONTROLS/TOP PANEL

CAQE7001LW0 07 – CONTROLS/TOP PANEL

Written by

in

CAQE7001LW0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NI137150200 Frigidaire Terminal
NI134926600 Frigidaire Damper
1137070890NH Frigidaire Dryer Main Control Board (No Housing)
3KNOB, CONTROL, WHITE
5PUSH BUTTON, ROUND #3
6WCI 134347700
8PUSH BUTTON, ROUND #1
11PUSH BUTTON, ROUND #4
12WCI 137320500
13WCI 134557501
15WCI 134552800
16WCI 134600000
19134402900 Frigidaire Screw
23WCI 137033500
23WCI 134910200
27B134711000 Frigidaire Bracket
27A134710900 Frigidaire Bracket Assembly
29WCI 137345410
39131205100 Frigidaire Screw
53137371700 Frigidaire Panel
55WCI 137320700
56WCI 134557300
57WCI 134503300
