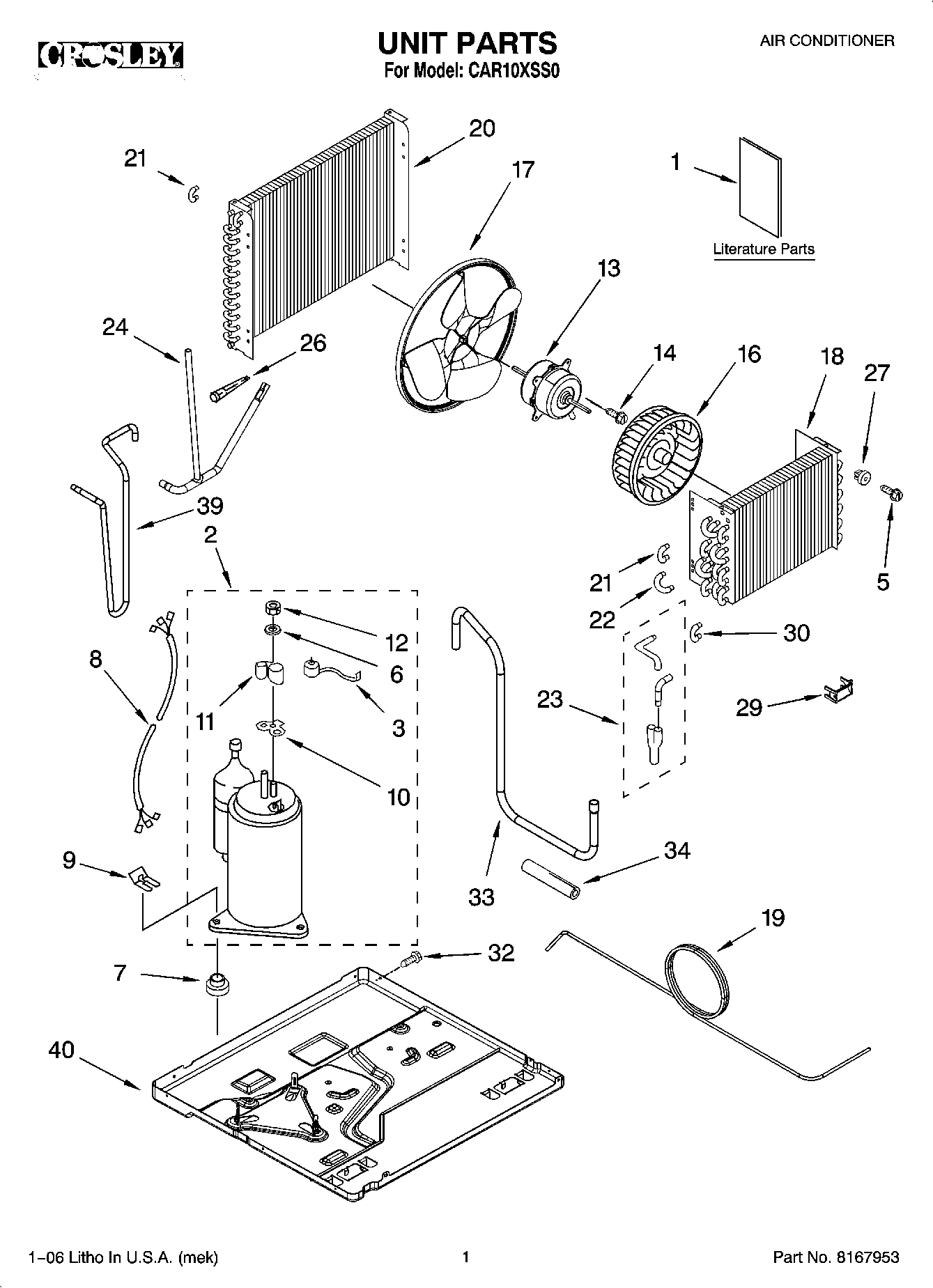

CAR10XSS0 01 – UNIT PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
2	Compressor
3	WP8209236 Whirlpool Overload Relay
5	WP98165 Whirlpool Screw
6	Gasket, Nut
7	Grommet
8	Wiring Harness, Compressor
9	Clip, Compressor
10	Gasket, Terminal Cover
11	Cover, Terminal
12	W10833054 Whirlpool Air Conditioner Mounting Nut
13	Motor, Fan
14	Screw
16	Wheel, Blower
17	Blade, Fan
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return
22	Bend, Return
23	Manifold Assembly
24	Tube, Outlet
26	WP1162526 Whirlpool Air Conditioner Strainer
27	Grommet, Screw
29	Clip, Temperature Anticipator
30	Bend, Return
32	WP489464 Whirlpool Refrigerator Screw
33	Tube, Suction (Includes Item 34)
34	Seal, Suction Tube
39	Tube, Discharge
40	Base
40	REFRIGERANT CHARGE 21.00 oz.
