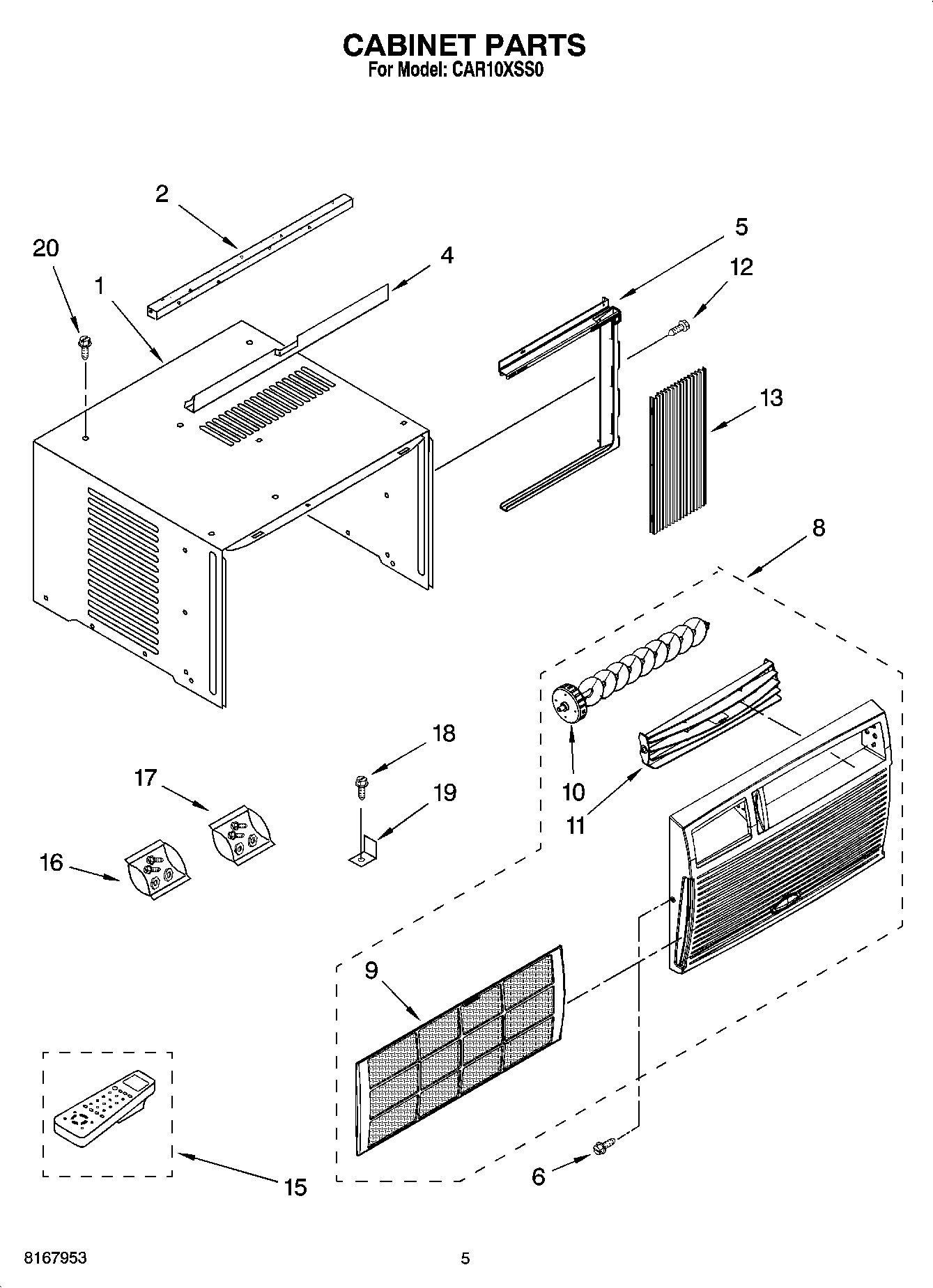

CAR10XSS0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Seal, Meeting Rail
4	Channel, Top
5	Frame, Curtain (Right Side)
5	Frame, Curtain (Left Side)
6	WP3196557 Whirlpool Screw
8	Front, Assembly
9	Filter
10	Louver, Vertical
11	Louver, Horizontal
12	WP90767 Whirlpool Screw
13	Curtain
15	Control, Remote
16	Bag, Accessory
17	Bag, Accessory For Curtains
18	Screw
19	Bracket, Window Lock
20	WP489478 Whirlpool Refrigerator Screw
