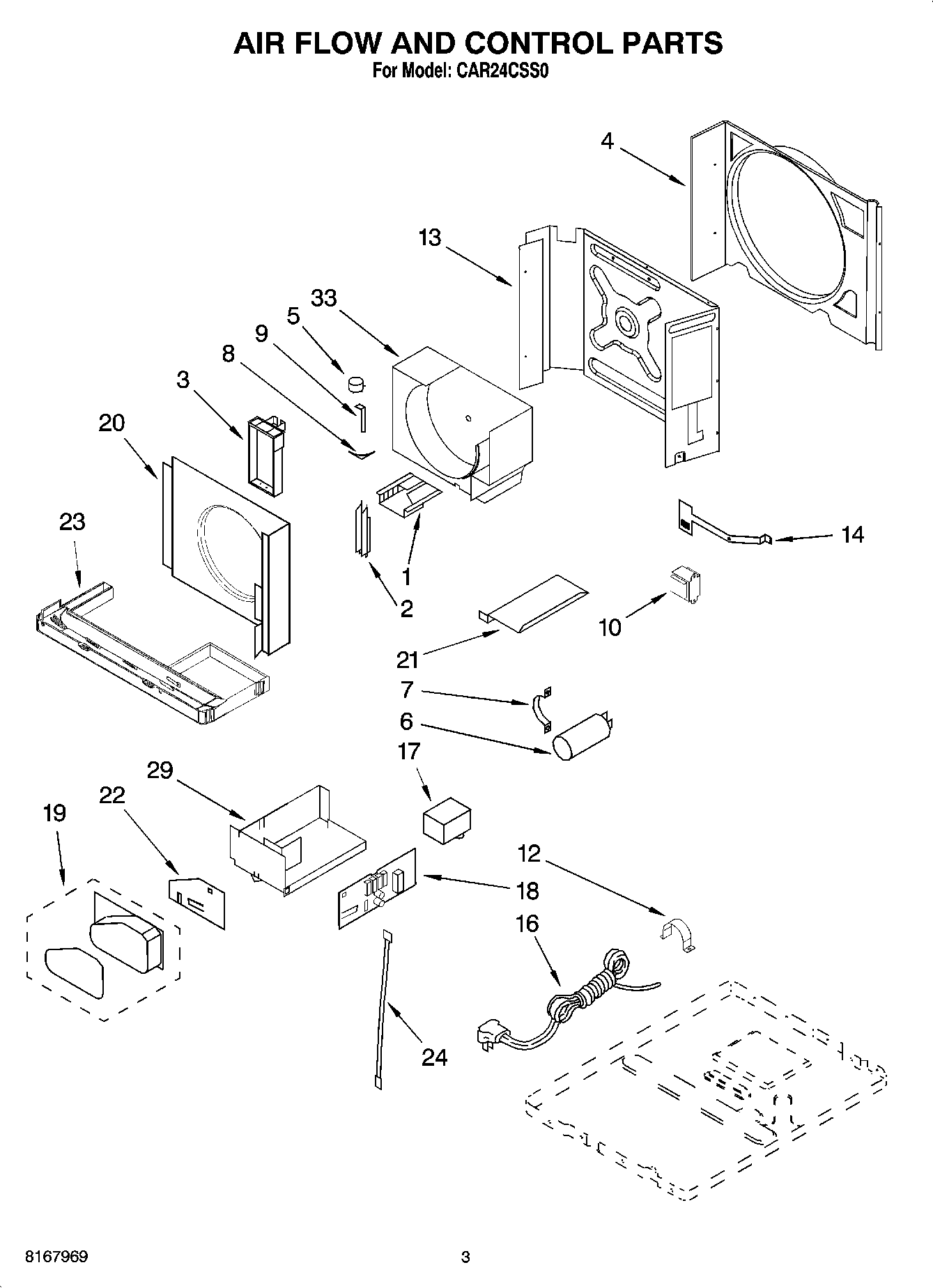

CAR24CSS0 02 – AIR FLOW AND CONTROL PARTSadmin2025-04-26T10:56:37+00:00CAR24CSS0 02 – AIR FLOW AND CONTROL PARTS
Products
| Position | Product |
|---|
| 1 | Housing, Air |
| 2 | Louver |
| 3 | Cartridge, Louver |
| 4 | Shroud, Condenser |
| 5 | Motor, Louver |
| 6 | Capacitor, Running |
| 7 | Bracket, Capacitor |
| 8 | Linkage, Louver |
| 9 | Linkage, Louver |
| 10 | Transformer |
| 12 | Wire Clamp |
| 13 | Wall, Dividing |
| 14 | Door, Exhaust |
| 16 | Cord, Appliance |
| 17 | CAPACITOR |
| 18 | Microcomputer |
| 19 | Escutcheon |
| 20 | Shroud, Condenser |
| 21 | Cover, Air Duct |
| 22 | Display Board |
| 23 | Pan, Evaporator |
| 24 | Thermistor |
| 29 | Box, Control |
| 33 | Housing, Air |
