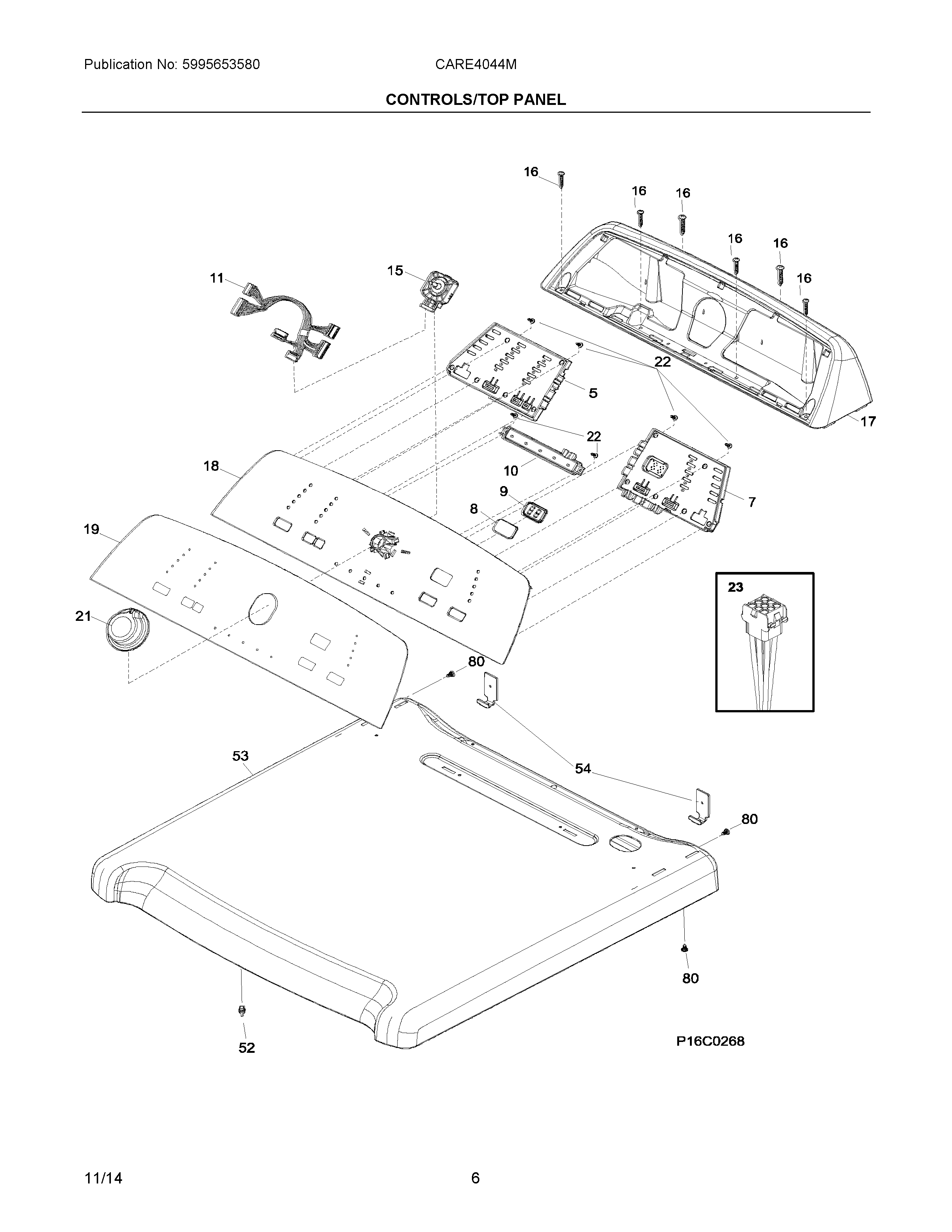

CARE4044MW0 04 – CONTROLS/TOP PANEL

CARE4044MW0 04 – CONTROLS/TOP PANEL

Written by

in

CARE4044MW0 04 – CONTROLS/TOP PANEL

Products

PositionProduct
5WCI 137363801
7WCI 5304496068
8WCI 137347700
9WCI 137367700
10137363900 Frigidaire Control Board
11137203500 Frigidaire Harness
15137493700 Frigidaire Switch
16131302800 Frigidaire Drum Vane Screw
17CONSOLE, SHELL J, WHITE
18WCI 137490800
19WCI 137518370
21KNOB, CYCLE SELECTOR
22SCREW (2)
23WCI 137415600
52137362600 Frigidaire Pin
53PANEL, TOP PANEL, WHITE
54BRACKET, HINGE, REAR
80131168200 Frigidaire Dryer Screw
