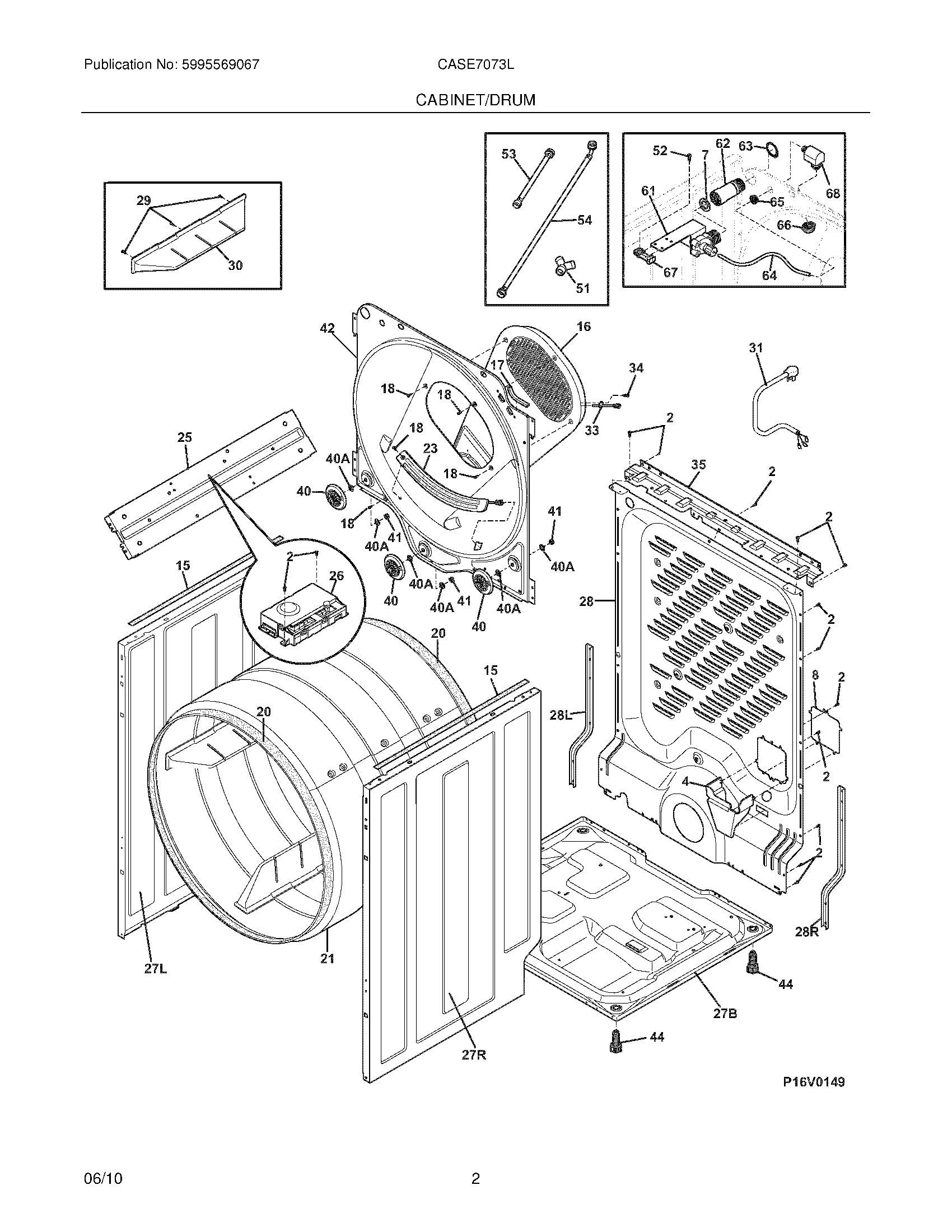

CASE7073LR0 03 – CABINET/DRUM

Products

Position	Product
NI	134930800 Frigidaire Harness
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	WCI 137240400
NI	Strain relief,240 ,pwr cord
NI	134716200 Frigidaire Retainer
4	WCI 134792200
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
8	134694400 Frigidaire Cover
15	137031800 Frigidaire Cushion
16	5304508449 Frigidaire Washer Dryer Air Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
20	WCI 134705900
21	WCI 134711910
23	134786100 Frigidaire Moisture Sensor
25	WCI 134912100
26	809160802 Frigidaire Control Assembly
27L	WCI 134690340
27R	WCI 134690440
27B	134690203 Frigidaire Base
28	WCI 134713213
28L	WCI 137029900
28R	WCI 137066800
29	131205100 Frigidaire Screw
30	WCI 137116810
31	5304505408 Frigidaire Cord
33	SAFETY THERMSTAT
34	131243700 Frigidaire Screw
35	WCI 134959000
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
42	WCI 134712813
44	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
51	5304500709 Frigidaire Y Hose Adapter Fitting
52	131202300 Frigidaire Screw
53	137471800 Frigidaire Hose
54	5304503984 Frigidaire Kit Assembly
61	WCI 137016600
62	WCI 134935410
63	WCI 137016500
64	WCI 137016300
65	137017200 Frigidaire Grommet
66	5304529773 Frigidaire Nozzle Assembly
67	WCI 137017400
