CAV2000AKW 04 – CABINET (SERIES 16) – Aparts

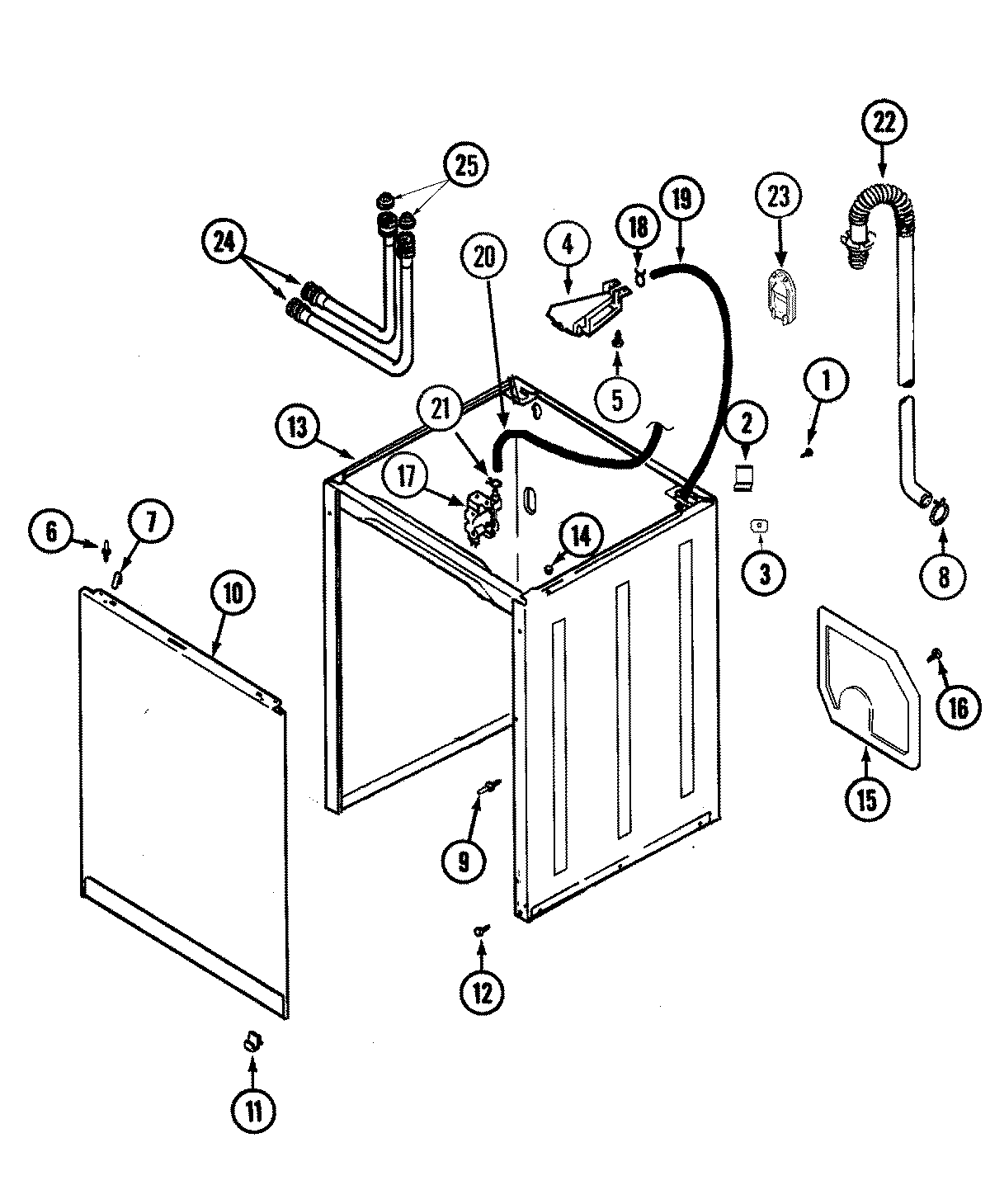

CAV2000AKW 04 – CABINET (SERIES 16)

Products

Position	Product
1	WP25-7893 Whirlpool Screw
2	35-2846 Whirlpool Hinge
3	MAY 35-4128
4	MAY 21001760
5	WP90767 Whirlpool Screw
6	MAY 53-0643
6	MAY 25-0224
6	MAY 53-0200
7	WP25-7220 Whirlpool Cabinet Clip
8	WP285655 Whirlpool Hose Clamp
9	MAY 21001829
10	MAY 35-2084
10	MAY 21002011
10	MAY 21001281
11	WP53-0120 Whirlpool Clip
12	MAY 35-4129
13	MAY 21001871
14	MAY 33-2653
15	MAY 21001876
16	SCREW
17	WP22001196 Whirlpool Valve Water
19	12002749 Whirlpool Flume Hose Kit
20	WP21001748 Whirlpool Hose
21	WP596669 Whirlpool Hose Clamp
22	WP21001872 Whirlpool Hose
23	MAY 21001874
24	FILL HOSE 5' W/WASHER
25	MAY 33-4264N
