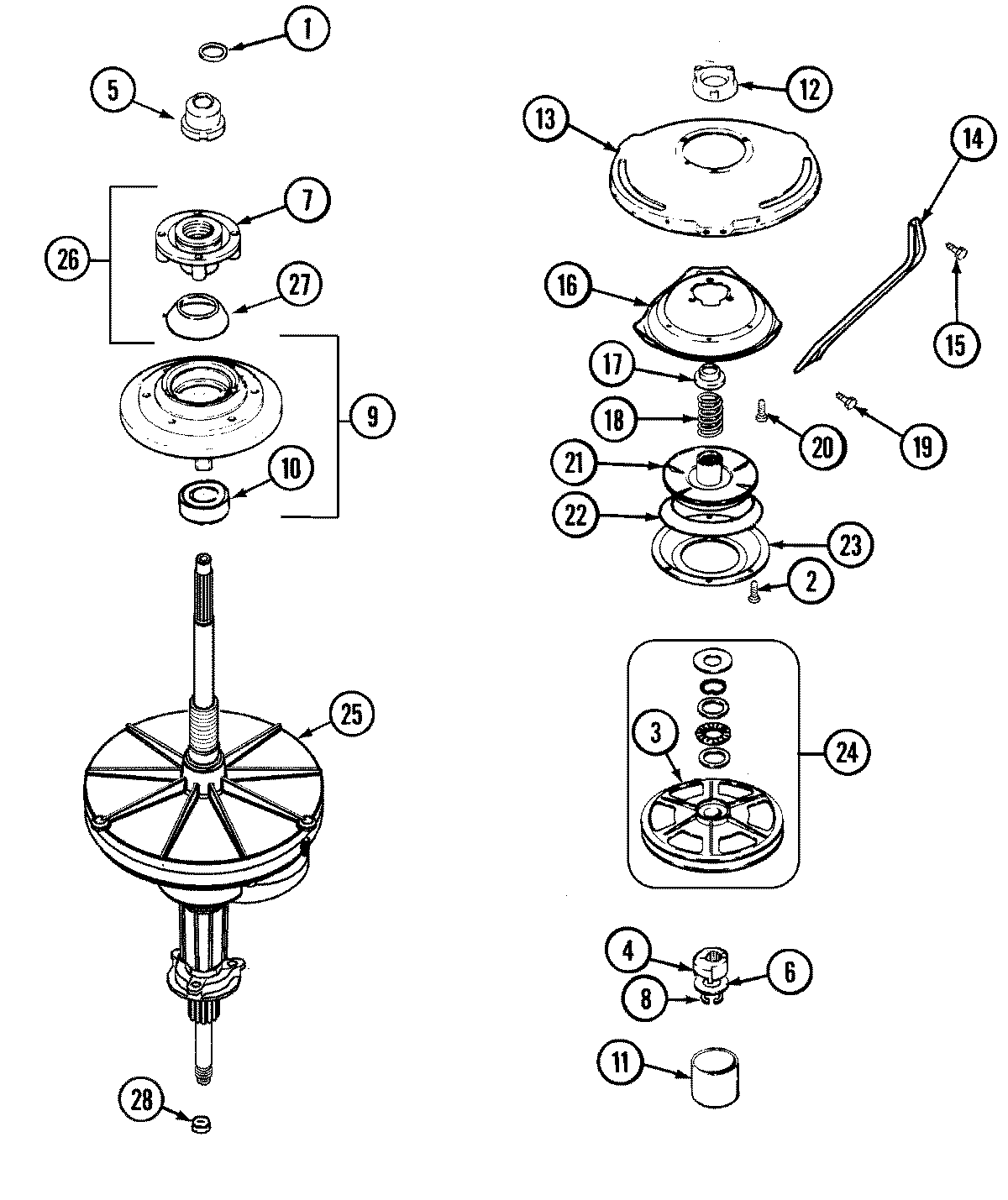

CAV2000AWA 05 – TRANSMISSION

Products

Position	Product
1	MAY 25-7941
2	WP21001065 Whirlpool Screw
3	MAY 35-3829
3	12002213 Whirlpool Washer Pulley and Thrust Bearing Kit
5	MAY 21001533
6	MAY 35-2082
6	MAY 35-2132
7	MAY 21001515
8	WP25-7854 Whirlpool Clip
9	MAY 21001508
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 35-2007
12	MAY 35-2205
12	MAY 21001511
13	MAY 21001518
14	MAY 21001532
16	MAY 21001163
17	MAY 35-2017
18	WP21001910 Whirlpool Spring
19	MAY 25-7930
20	WP21001509 Whirlpool Screw
21	MAY 35-2948
22	WP21002026 Whirlpool Snubber Assembly
23	MAY 21001761
25	TRANSMISSION ASSY.(DUAL DRIVE) COMPONENTS OF THIS ASSEMBLY
26	TUB SEAL ASSEMBLY--W (INCL TUB SEAL, TUB GASKET
27	MAY 35-2974
28	207843 Whirlpool Seal Repair Kit
