CAV2000AWQ 07 – TRANSMISSION

CAV2000AWQ 07 – TRANSMISSION

Written by

in

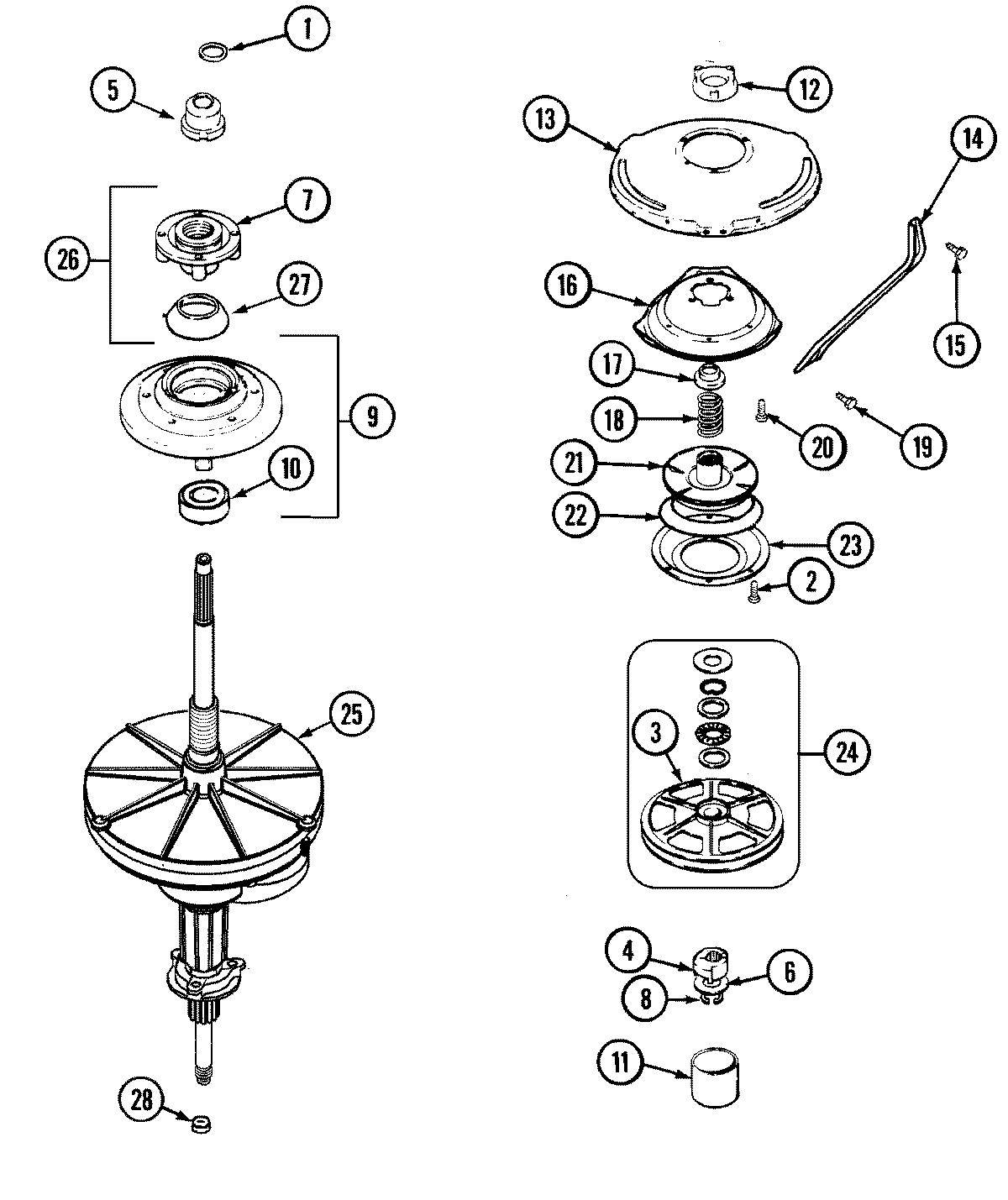

CAV2000AWQ 07 – TRANSMISSION

Products

PositionProduct
1MAY 25-7941
2WP21001065 Whirlpool Screw
312002213 Whirlpool Washer Pulley and Thrust Bearing Kit
5MAY 21001533
6MAY 35-2132
6MAY 35-2082
7MAY 21001515
8WP25-7854 Whirlpool Clip
9MAY 21001508
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12MAY 21001511
12MAY 35-2205
13MAY 21001518
14MAY 21001532
16MAY 21001163
17MAY 35-2017
18WP21001910 Whirlpool Spring
19MAY 25-7930
20WP21001509 Whirlpool Screw
21MAY 35-2948
22WP21002026 Whirlpool Snubber Assembly
23MAY 21001761
25TRANSMISSION ASSY.(DUAL DRIVE) COMPONENTS OF THIS ASSEMBLY
26TUB SEAL ASSEMBLY–W (INCL TUB SEAL, TUB GASKET
27MAY 35-2974
28207843 Whirlpool Seal Repair Kit
