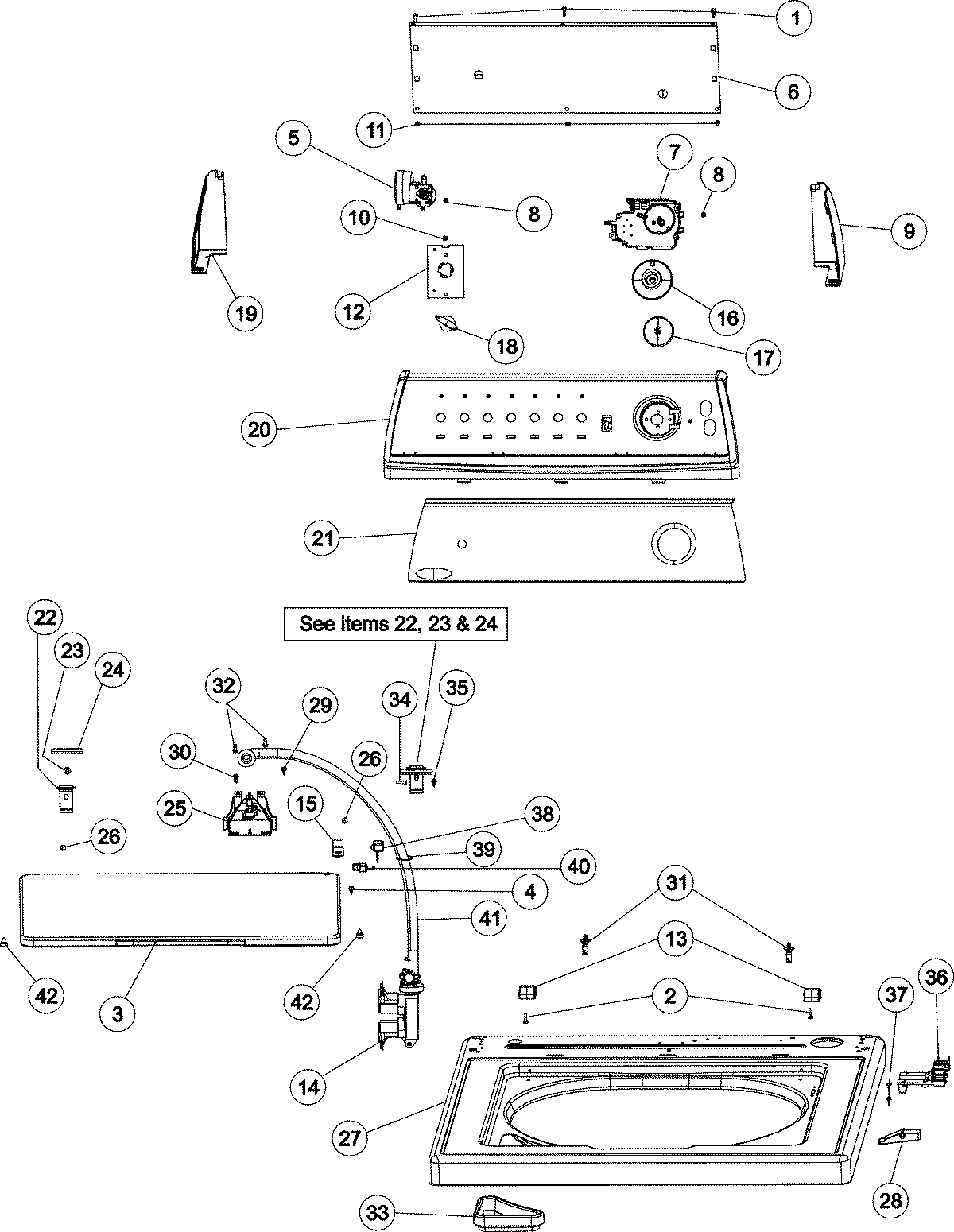

CAV2005AWW 03 – CONTROL PANEL & TOP

Products

Position	Product
1	MAY 21002224
3	MAY 35-2026
5	MAY Y2201474
6	MAY 21001527
7	MAY 21002056
9	MAY 21001547
12	MAY 21002077
13	HINGE-LID
14	WP21001932 Whirlpool Dishwasher Water Valve
15	MAY 21001148
16	MAY 21001520
17	MAY 21001526
18	MAY 21001544
19	MAY 21001546
20	MAY 21001552
21	MAY 21002154
22	35-2846 Whirlpool Hinge
23	SCREW
24	MAY 35-4128
25	MAY 21001760
26	WP25-7893 Whirlpool Screw
27	MAY 21001602
28	MAY 21001134
29	WP90767 Whirlpool Screw
30	MAY 31001560
31	MAY 21001857
33	MAY 21001597
34	MAY 25-7438
36	WP21001135 Whirlpool Housing
37	MAY 21001136
38	WP43-0057 Whirlpool Lid Switch Actuator
39	MAY 25-7430
40	WP35-2045 Whirlpool Hinge Pin
41	12002749 Whirlpool Flume Hose Kit
42	MAY 35-0581
