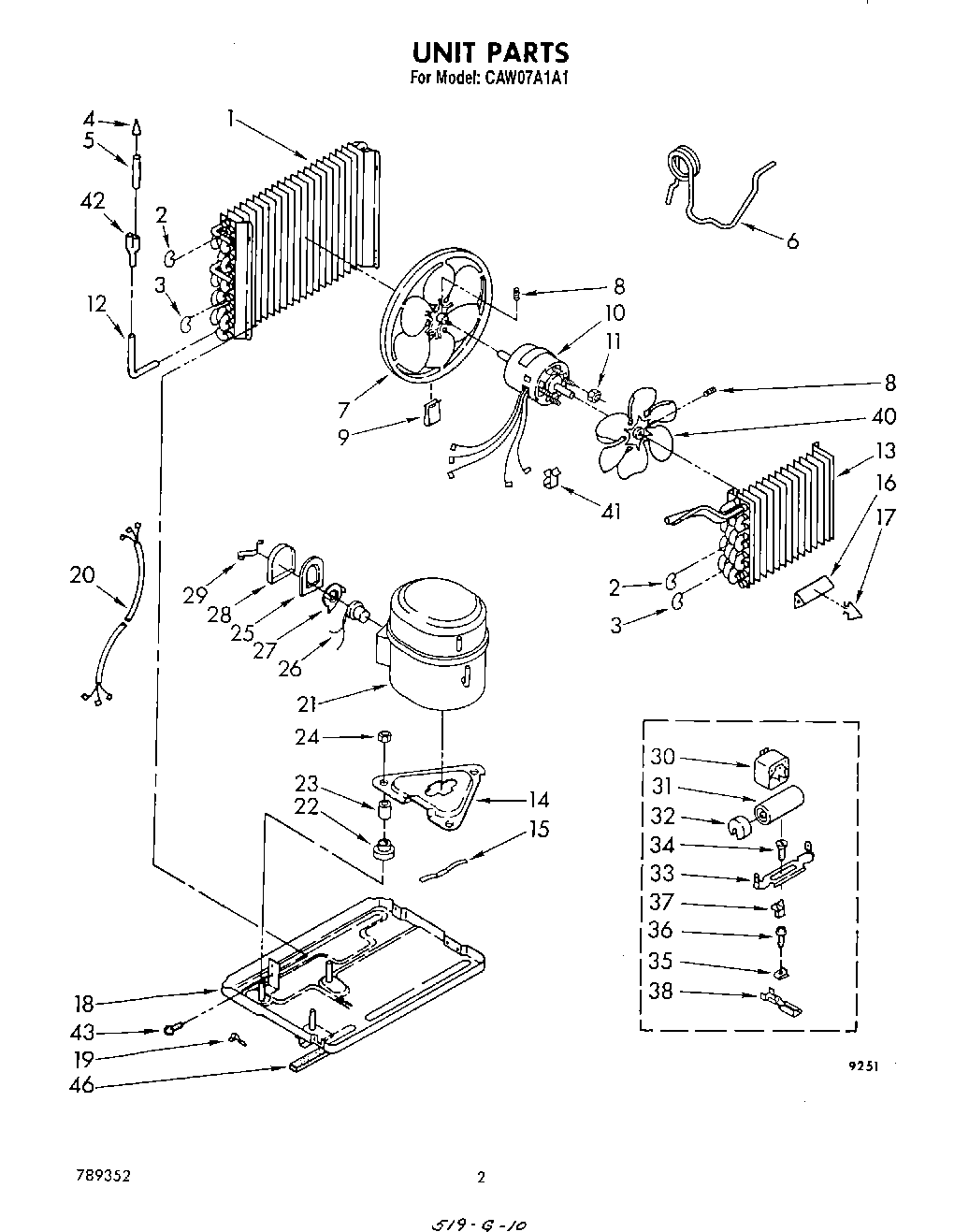

CAW07A1A1 02 – SECTION

Products

PositionProduct
1WPL 950844
3Bend, Return Evaporator (4)
4Strainer
5Tube & Strainer (Includes Item 23)
6WPL 950843
7WPL 997885
8Setscrew, 5/16 x 1/4
9Clip, Balancing
10WPL 949678
11WP488130 Whirlpool Air Conditioner Nut
12Tube, Outlet
13WPL 950840
14WPL 646497
15Spring, Clip
16Anticipator, Temperature
17Clip, Anticipator
18Base
19Clamp, Tube (2)
20Harness, Wiring
21WPL 4853971
22Grommet (4)
23Sleeve (3)
24Locknut (3)
25Gasket, Terminal Cover
26WPL 950834
27Spring, Overload
28Cover, Terminal
29Retainer, Terminal Cover
30Relay (Component Of Start Kit)
31Capacitor, Start
32Cap, Capacitor (Component Of Start Kit)
33Bracket, Capacitor (Component Of Start Kit)
34Screw, 10 x 5/8 (Component Of Start Kit)
35488660 Whirlpool Refrigerator Nut
36WP965173 Whirlpool Dishwasher Screw
37Multiplier, Terminal (Component Of Start Kit)
38Clip, Terminal (Component Of Start Kit)
40Blade, Fan (Evaporator)
41Clamp, Wiring
42Tube, Flow Divider
43WP489069 Whirlpool Compactor Screw
43Screw, Repair
46WPL 484220
46Seal, Base (R.S.)
46978026 Whirlpool Refrigerator Primary Valve
46978027 Whirlpool Refrigerator Primary Valve
46WP978025 Whirlpool Refrigerator Valve
46978030 Whirlpool Refrigerator Valve
46VALVE, ACCESS (1/2“)
46VALVE, ACCESS (5/8“)
46Kit, Evaporator Repair (Aluminum Epoxy)
46Cover, Winter (19“x12“x14“)
46Hard Start Kit (Use With 485595 Compressor)
