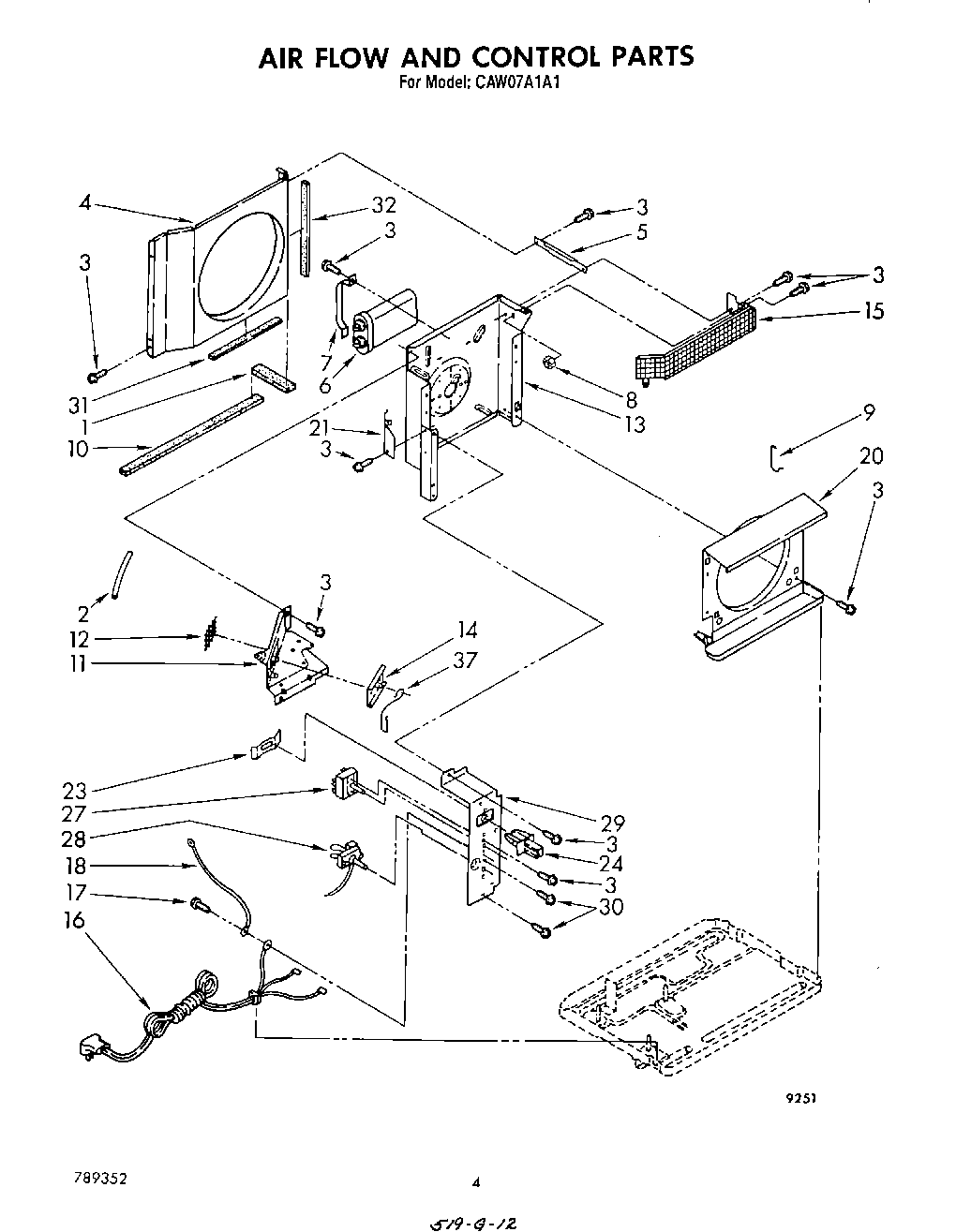

CAW07A1A1 03 – SECTION

Products

Position	Product
3	WP489069 Whirlpool Compactor Screw
3	Screw, Repair
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Nut, Speed No.8A
9	Clip, Shroud (2)
10	Seal, Strip
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
12	Screen, Exhaust Door
13	Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14	Door, Exhaust
15	Guard, Evaporator Impeller
16	Cable, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
20	Shroud, Evaporator
21	WPL 859955
23	WPL 853365
24	Actuator, Door
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
31	Seal, Condenser
32	Seal, Condenser (R.S.)
37	212643 Whirlpool Refrigerator Permagum Sealer
37	Arm, Exhaust Door
37	No Drip Tape (For Sweating Tubes)
37	Lacquer, Starlight Gray (1/2 Pt. Uncut)
37	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
37	Insulation, Fiberglass (1/4“ x 24“ x 48“)
37	WPL 649939
37	Oil, Turbine 1 Fl. Oz.
37	Wire, 25“ Roll (White 12 GA.)
37	Wire, 25“ Roll (Black 12 GA.)
37	Wire, Red, (25 Ft.)
