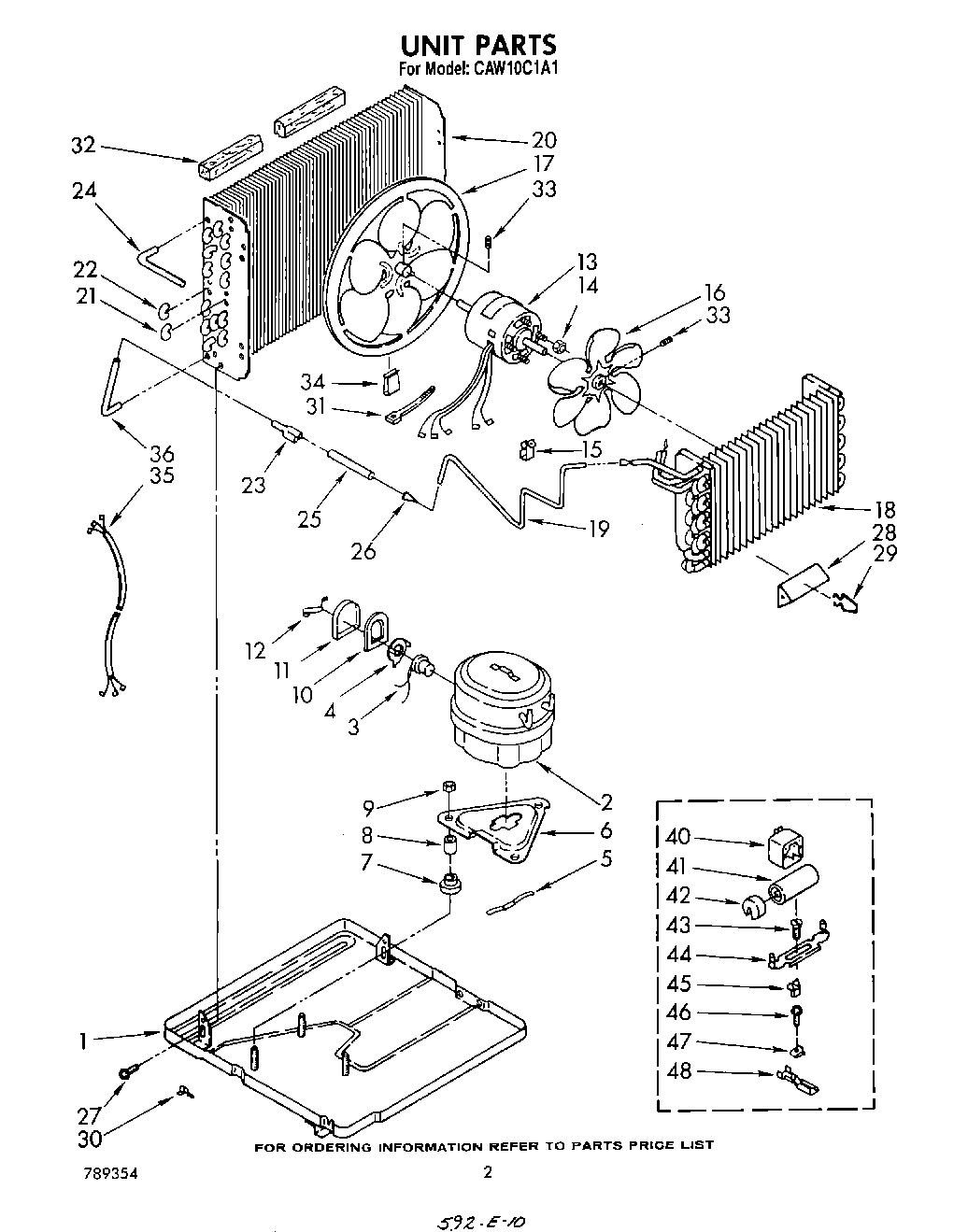

CAW10C1A1 02 – SECTION

Products

Position	Product
1	Base
2	Compressor
3	WPL 950834
4	Spring, Overload
5	Spring, Clip
6	Plate, Compressor
7	Grommet, Compressor (3)
8	Sleeve, Compressor Mounting (3)
9	Locknut (3)
10	Gasket, Terminal Cover
11	Cover, Terminal
12	Retainer, Terminal Cover
13	WPL 995303
14	WP488130 Whirlpool Air Conditioner Nut
15	Clamp, Wiring
16	Blade, Fan (Evaporator)
17	Blade, Condenser Fan
18	WPL 948367
19	Inlet, Water
20	Condenser
21	Bend, Return Evaporator (4)
22	Bend, Return Evaporator (11)
23	Tube, Flow Divider
24	Tube, 90~ Bend
25	Tube & Strainer (Includes Item 23)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Tube (2)
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
33	Setscrew, 5/16 x 1/4
34	Clip, Fan Balancing
35	Harness, Wiring
36	Tube, Outlet
40	Relay (Component Of Start Kit)
41	Capacitor, Start
42	Cap, Capacitor (Component Of Start Kit)
43	Screw, 10 x 5/8 (Component Of Start Kit)
44	Bracket, Capacitor (Component Of Start Kit)
45	Multiplier, Terminal (Component Of Start Kit)
46	WP965173 Whirlpool Dishwasher Screw
47	488660 Whirlpool Refrigerator Nut
48	WPL 484220
48	978026 Whirlpool Refrigerator Primary Valve
48	978027 Whirlpool Refrigerator Primary Valve
48	978030 Whirlpool Refrigerator Valve
48	Hard Start Kit (Use With 485595 Compressor)
48	VALVE, ACCESS (1/2“)
48	Oil, Turbine 1 Fl. Oz.
48	WP978025 Whirlpool Refrigerator Valve
48	Kit, Evaporator Repair (Aluminum Epoxy)
48	No Drip Tape (For Sweating Tubes)
48	484184 Whirlpool Air Conditioner Winter Cover
48	Clip, Terminal (Component Of Start Kit)
48	VALVE, ACCESS (5/8“)
