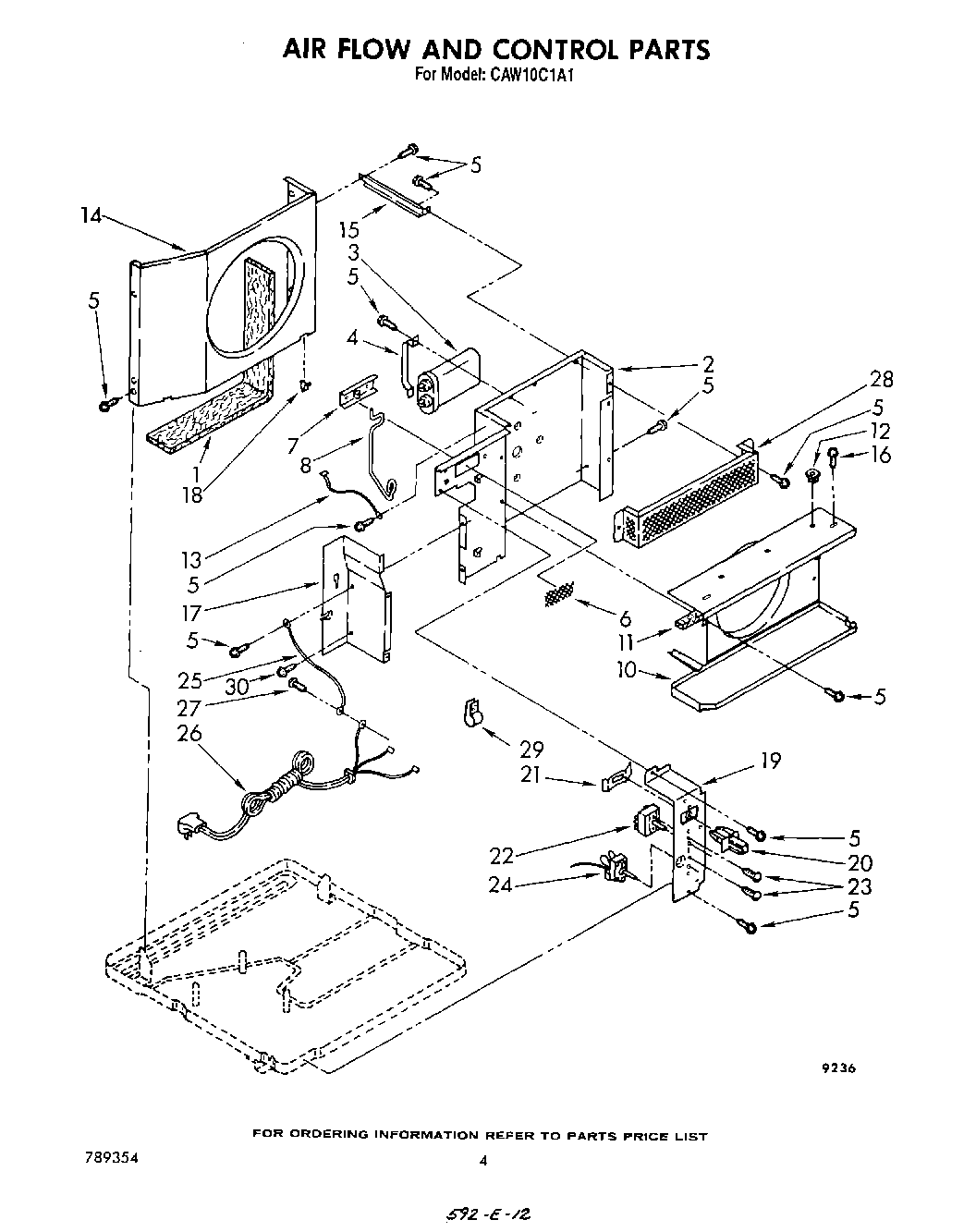

CAW10C1A1 03 – SECTION

Products

Position	Product
	WPL LIT953076
	WPL LIT953083
	WPL LIT952616
	WPL LIT789354
1	WP854334 Whirlpool Air Conditioner Sealing Strip
2	Wall, Dividing (Requires Insulation Part No. 469938)
3	WPL 950931
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	Screen, Exhaust Door
7	WPL 644209
8	Arm, Door
10	Shro\ud,\ Evaporator (Includes Item 11)
11	Insulation, Evaporator Cover
12	Fastener, snap (2)
13	Wire, Ground
14	Shroud, Condenser
15	support, unit (2)
16	WP488729 Whirlpool Refrigerator Door Screw
17	Extension, Dividing Wall (Requires Insulation Part No. 469938)
18	Clip, Retainer
19	Panel, Control
20	Actuator, Exhaust Door
21	Spring, Retainer
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Control, Tempetature
25	Wire, Ground
26	Cable, Appliance
27	WPW10141604 Whirlpool Screw
28	Guard, Evaporator Impeller
29	Clip, Wiring
30	Lacquer, Starlight Gray (1/2 Pt. Uncut)
30	WPL 649939
30	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
30	Wire, 25“ Roll (White 12 GA.)
30	Screw, 8 x 3/8
30	Wire, 25“ Roll (Black 12 GA.)
30	Insulation, Fiberglass (1/4“ x 24“ x 48“)
30	Wire, Red, (25 Ft.)
30	212643 Whirlpool Refrigerator Permagum Sealer
