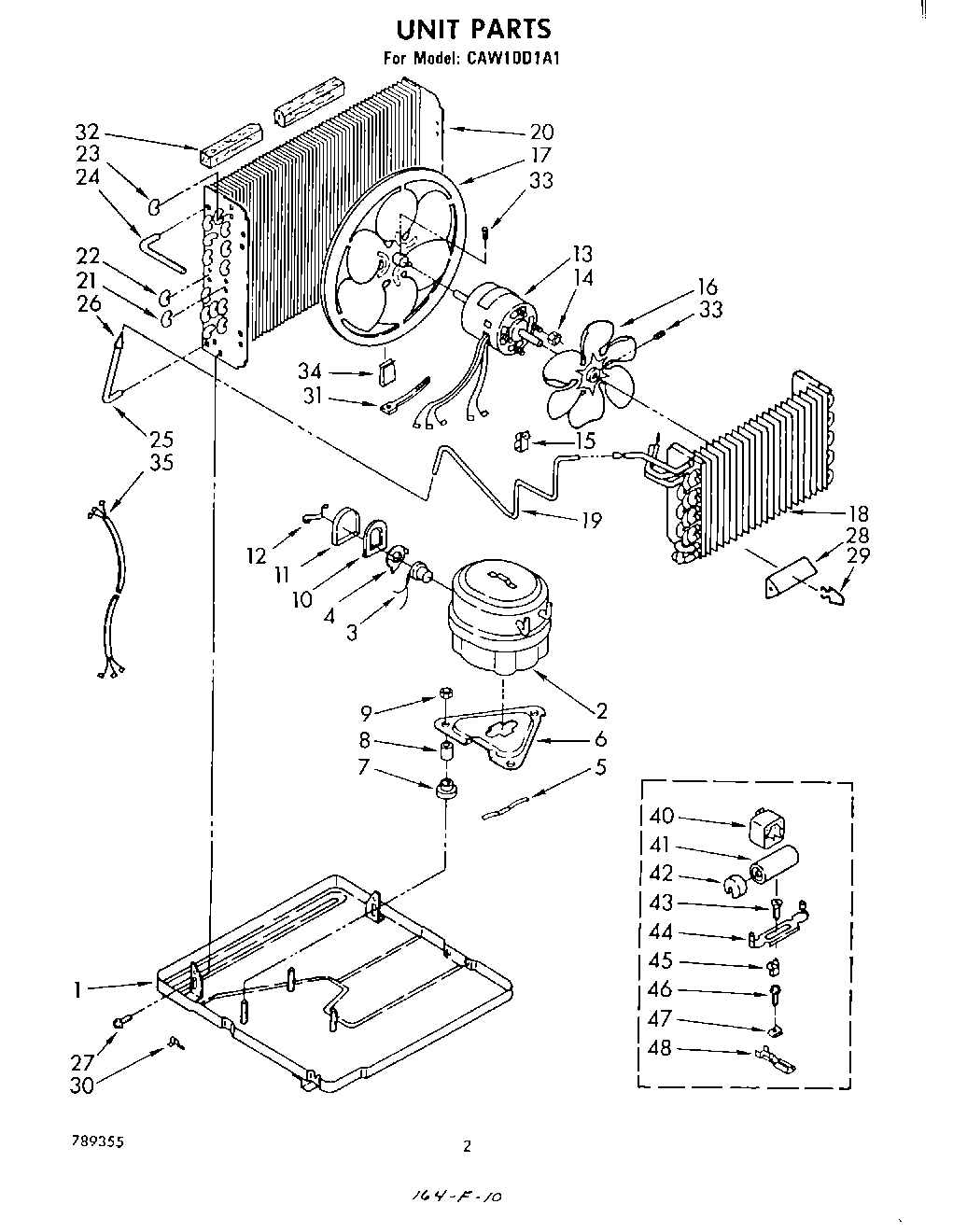

CAW10D1A1 02 – SECTION

Products

Position	Product
1	Base
2	Compressor
3	WP1161170 Whirlpool Air Conditioner Overload
4	Spring, Overload
5	Spring, Clip
6	Plate, Compressor
7	Grommet, Compressor (3)
8	Sleeve, Compressor (3)
9	Locknut (3)
10	Gasket, Terminal Cover
11	Cover, Terminal
12	Retainer, Terminal Cover
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Clamp, Wiring
16	Blade, Fan (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Evaporator (4)
22	Bend, Return Evaporator (11)
23	Return Bend (2)
24	Tube, 90~ Connect
25	Tube & Strainer (Includes Item 23)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Tube (2)
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
33	Setscrew, 5/16 x 1/4
34	Clip, Balancing
35	Harness, Wiring
40	Relay, Start
42	Capacitor, Start
43	Cap, Capacitor (Component Of Start Kit)
43	Screw, 10 x 5/8 (Component Of Start Kit)
44	Bracket, Capacitor (Component Of Start Kit)
45	Multiplier, Terminal (Component Of Start Kit)
46	WP965173 Whirlpool Dishwasher Screw
47	488660 Whirlpool Refrigerator Nut
48	WP978025 Whirlpool Refrigerator Valve
48	Hard Start Kit (Use With 484395 Compressor)
48	978026 Whirlpool Refrigerator Primary Valve
48	978027 Whirlpool Refrigerator Primary Valve
48	978030 Whirlpool Refrigerator Valve
48	VALVE, ACCESS (1/2“)
48	Oil, Turbine 1 Fl. Oz.
48	Kit, Evaporator Repair (Aluminum Epoxy)
48	No Drip Tape (For Sweating Tubes)
48	484184 Whirlpool Air Conditioner Winter Cover
48	WPL 484220
48	Clip, Terminal (Component Of Start Kit)
48	VALVE, ACCESS (5/8“)
