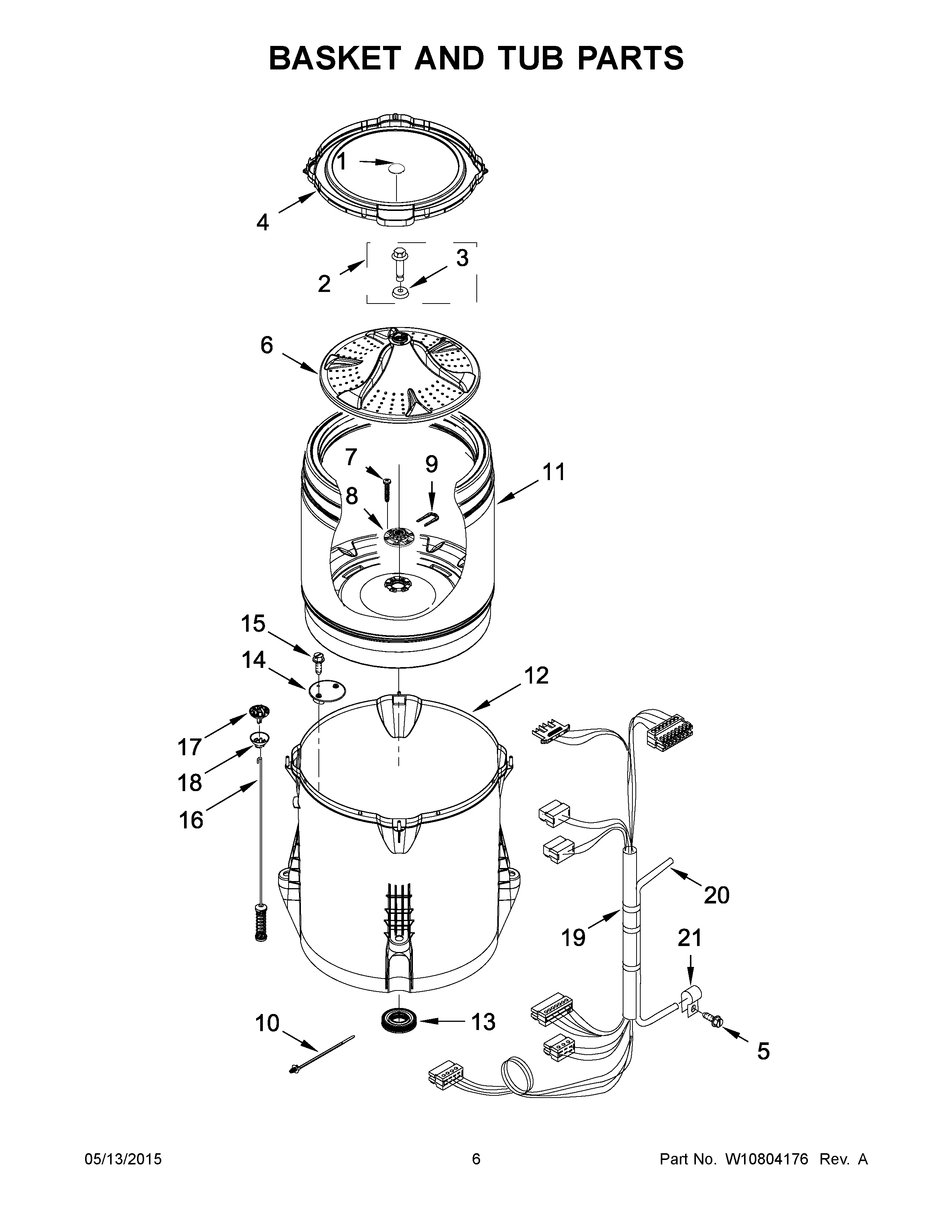

CAW11544EW1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	W10743560 Whirlpool Dispenser
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	WPW10556325 Whirlpool Tub Ring
5	WPW10109200 Whirlpool Screw
6	W10739039 Whirlpool Washplate
7	WP8533953 Whirlpool Screw
8	W10528947 Whirlpool Washer Drive Hub Assembly
9	RETAINER
10	WPW10339879 Whirlpool Wire Tie
11	W10521298 Whirlpool Basket
12	W10324648 Whirlpool Outer Tub
13	W10324647 Whirlpool Seal Tub
14	WPW10215093 Whirlpool Filter
15	WP8533928 Whirlpool Refrigerator Screw
16	W10780044 Whirlpool Suspension Assembly
17	W10780046 Whirlpool Suspension Rod Kit
18	W10440729 Whirlpool Suspension
19	W10678688 Whirlpool Wire Harness
20	W10846364 Whirlpool Hose
21	W10005430 Whirlpool Clamp
