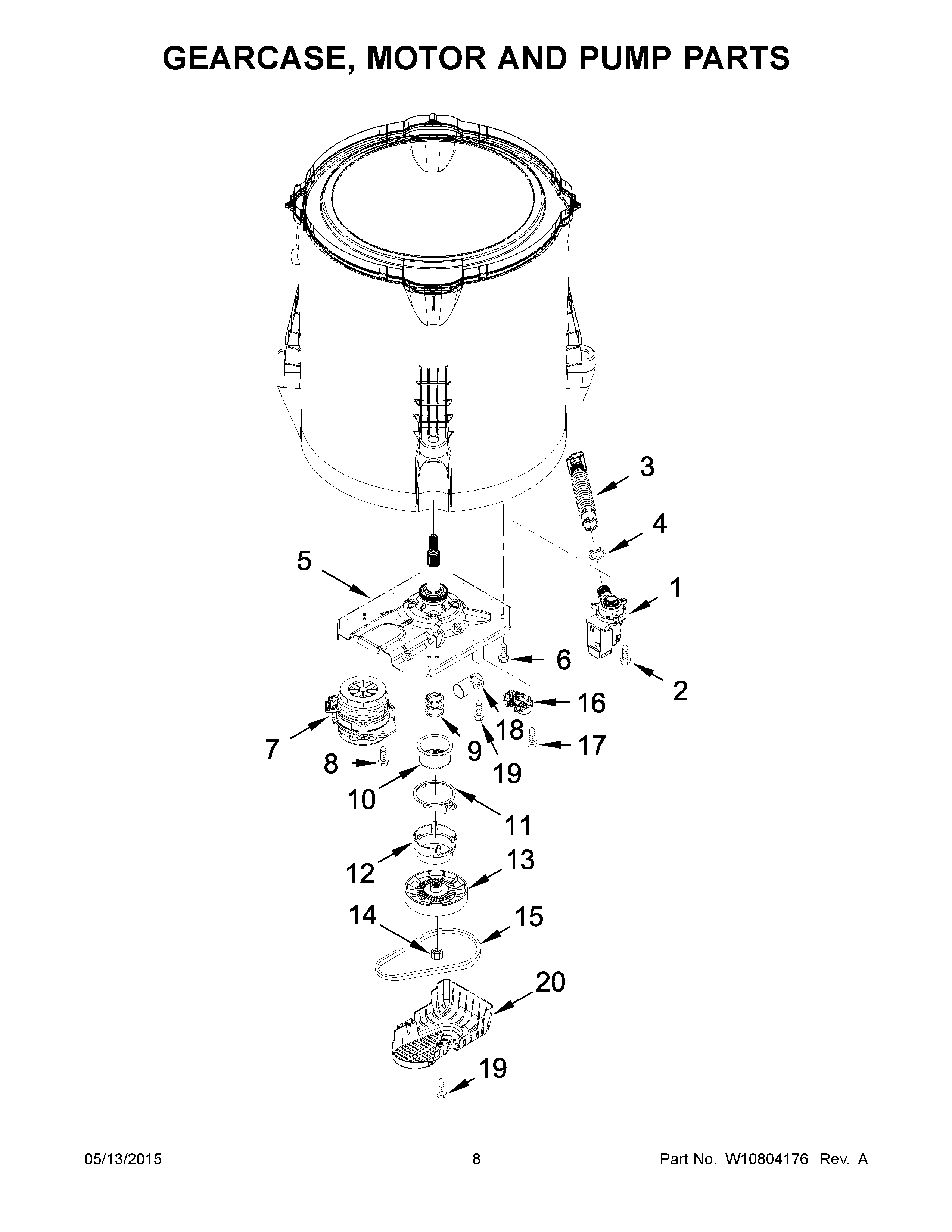

CAW11544EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

CAW11544EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

CAW11544EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10661045 Whirlpool Washer Water Drain Pump
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W10832724 Whirlpool Motor Drive
8W11685857 Whirlpool Screw Assembly
9SPRING, SPLUTCH
10SLIDER, SPLUTCH
11CAM RING, SPLUTCH
12CAM, SPLUTCH
13W10721967 Whirlpool Washer Cam Kit
14W10759923 Whirlpool Washer Pulley Nut
15WPW10006384 Whirlpool Washer Drive Belt
16ACTUATOR
17W11596033 Whirlpool Microwave Screw
18CAPACITOR (WASHER)
19W11573574 Whirlpool Screw
20WPW10550173 Whirlpool Shield Assembly
