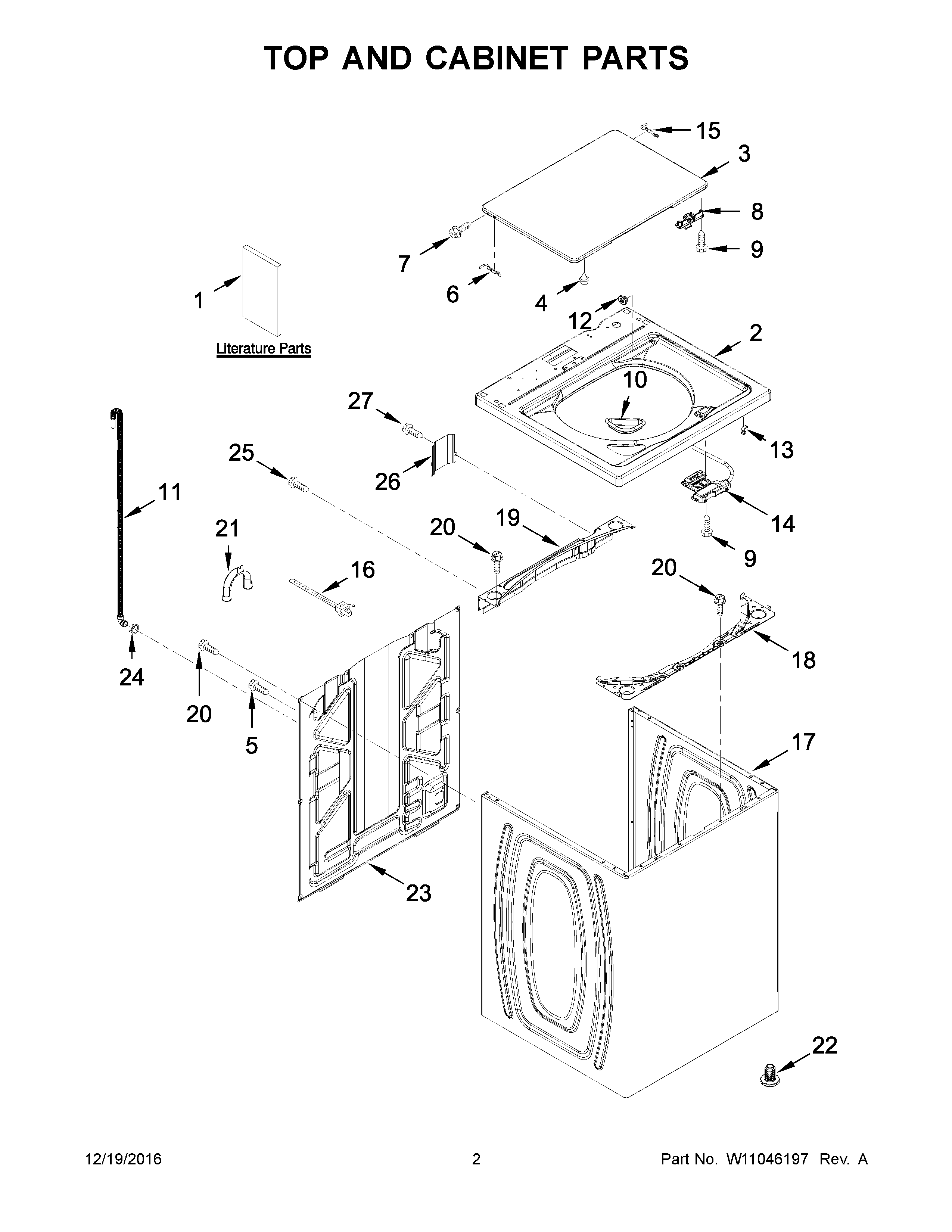

CAW11544EW2 02 – TOP AND CABINET PARTS

CAW11544EW2 02 – TOP AND CABINET PARTS

Written by

in

CAW11544EW2 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1BTECH SHEET
1INSTALLATION INSTRUCTIONS
1AOWNERS MANUAL
2W11210992 Whirlpool Top
3W10860912 Whirlpool Lid
4WP9724509 Whirlpool Bumper
5WP9740848 Whirlpool Dishwasher Screw
6WP91770 Whirlpool Hinge
7SCREW
8W10837741 Whirlpool Washer Lid Strike
9WPW10273971 Whirlpool Screw
10WPW10192089 Whirlpool Washer Bleach Dispenser
11W11244231 Whirlpool Hose
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP90016 Whirlpool Clip
14LATCH-WASHER LID
15WP54583 Whirlpool Hinge
16WPW10339879 Whirlpool Wire Tie
17W10596395 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20WP489069 Whirlpool Compactor Screw
21WPW10280024 Whirlpool Retainer
22W11213957 Whirlpool Dishwasher Leveling Leg
23W11486091 Whirlpool Rear Panel
24WP356138 Whirlpool Hose Clamp
25WP489128 Whirlpool Refrigerator Screw
26W10676061 Whirlpool Cover Assembly
27W10846509 Whirlpool Screw
