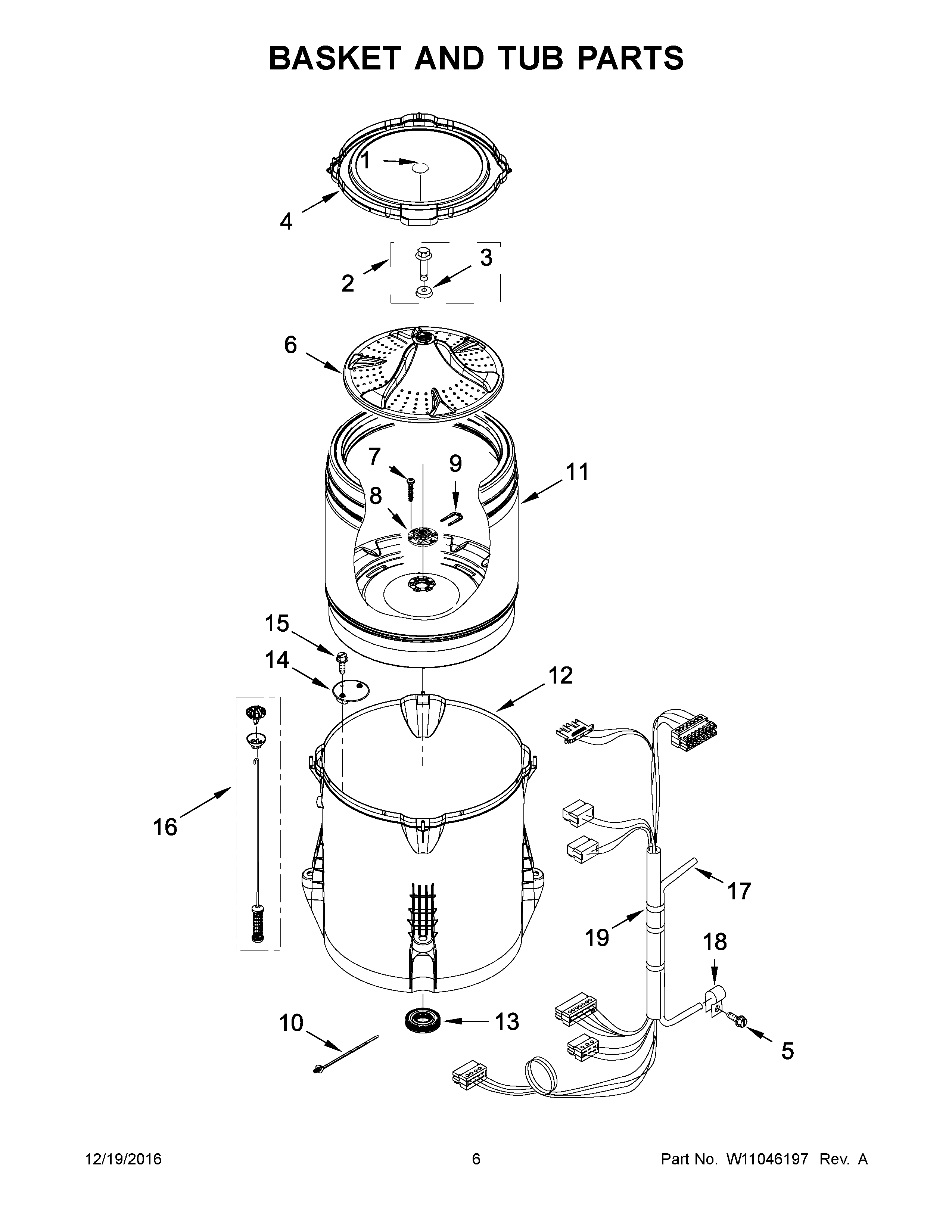

CAW11544EW2 04 – BASKET AND TUB PARTS

CAW11544EW2 04 – BASKET AND TUB PARTS

Written by

in

CAW11544EW2 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10743560 Whirlpool Dispenser
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4WPW10556325 Whirlpool Tub Ring
5WPW10109200 Whirlpool Screw
6W10739039 Whirlpool Washplate
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10WPW10339879 Whirlpool Wire Tie
11W10521298 Whirlpool Basket
12W10324648 Whirlpool Outer Tub
13W10324647 Whirlpool Seal Tub
14WPW10215093 Whirlpool Filter
15WP8533928 Whirlpool Refrigerator Screw
16W11682068 Whirlpool Suspension Assembly
17W10846364 Whirlpool Hose
18W10005430 Whirlpool Clamp
19W10903243 Whirlpool Wire Harness
