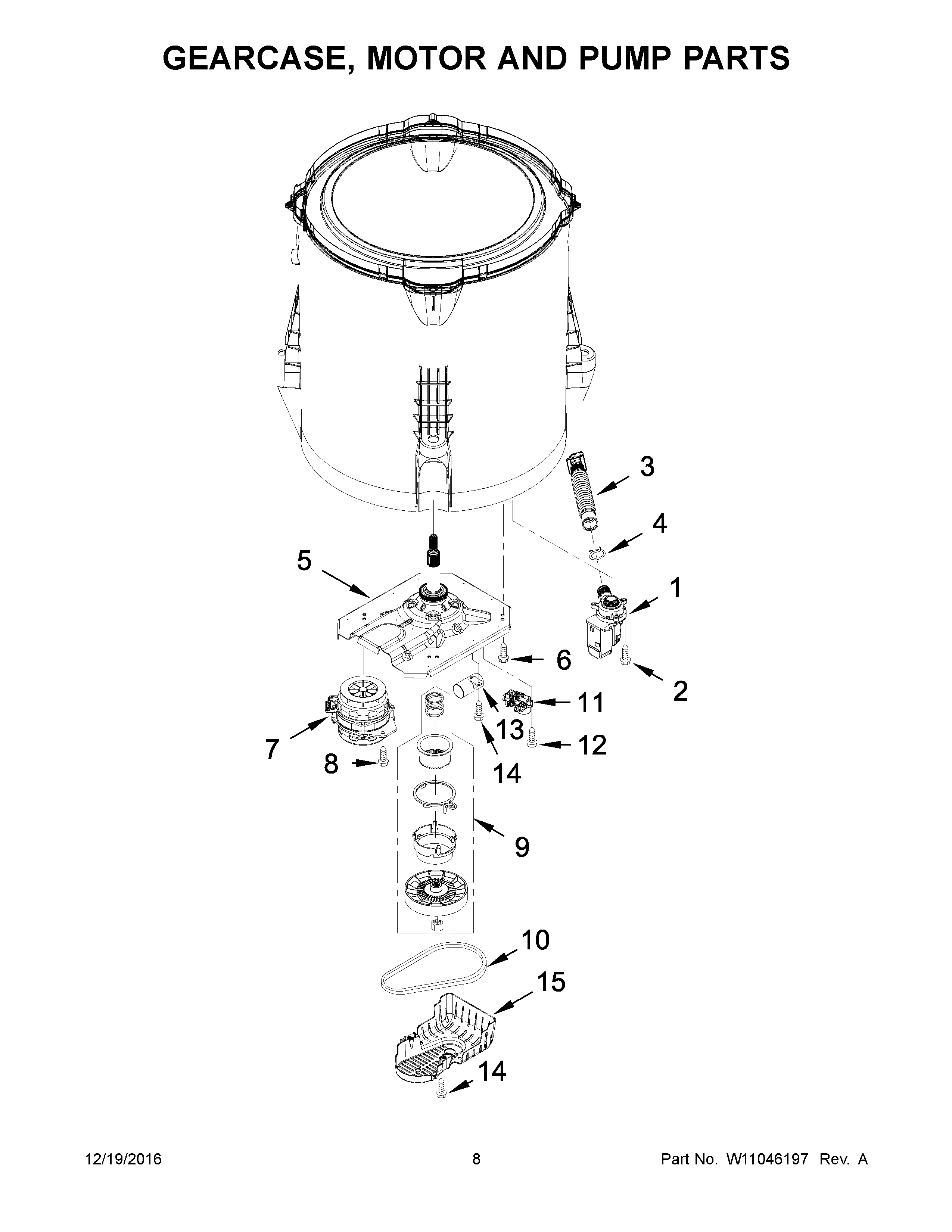

CAW11544EW2 05 – GEARCASE, MOTOR AND PUMP PARTS

CAW11544EW2 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

CAW11544EW2 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1PUMP-WATER
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W10832724 Whirlpool Motor Drive
8W11685857 Whirlpool Screw Assembly
9W10721967 Whirlpool Washer Cam Kit
10W11239857 Whirlpool Washer Belt
11W10913953 Whirlpool Washer Shift Actuator
12W11596033 Whirlpool Microwave Screw
13CAPACITOR (WASHER)
14W11573574 Whirlpool Screw
15WPW10550173 Whirlpool Shield Assembly
