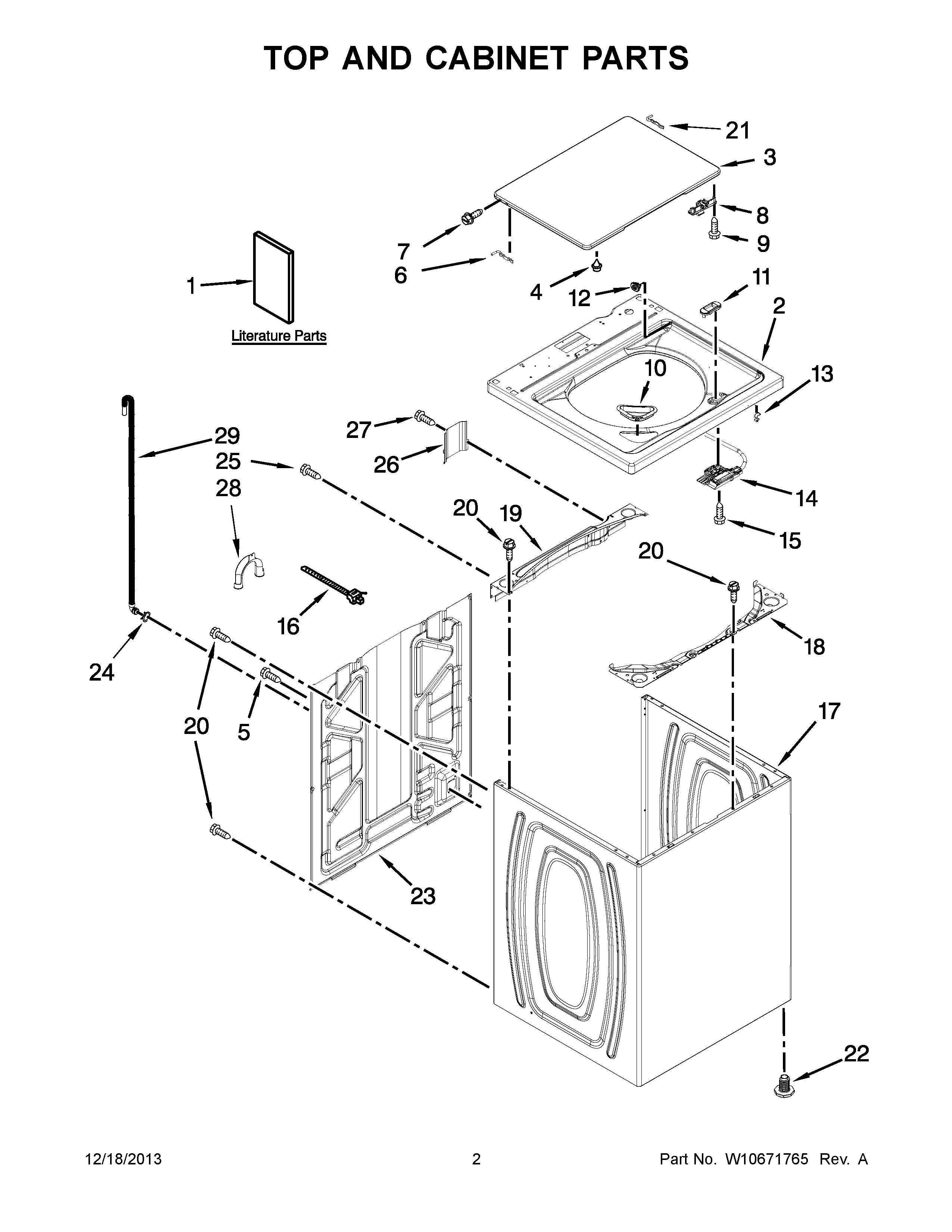

CAW12444BW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	OWNERS MANUAL
1	TECH SHEET
1	INSTALLATION INSTRUCTIONS
1	QUICK START GUIDE
1	ENERGY GUIDE
2	WPW10251319 Whirlpool Top Assembly
3	W10860912 Whirlpool Lid
4	WP9724509 Whirlpool Bumper
5	WP9740848 Whirlpool Dishwasher Screw
6	WP91770 Whirlpool Hinge
7	SCREW
8	WPW10240513 Whirlpool Strike
9	WPW10273971 Whirlpool Screw
10	WPW10192089 Whirlpool Washer Bleach Dispenser
11	WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12	WP21258 Whirlpool Washer Lid Hinge Bearing
13	WP90016 Whirlpool Clip
14	W10404050 Whirlpool Washer Door Lid Lock and Latch Assembly
15	WP8281163 Whirlpool Refrigerator Screw
16	WPW10339879 Whirlpool Wire Tie
17	W10596395 Whirlpool Cabinet
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21	WP54583 Whirlpool Hinge
22	W11213957 Whirlpool Dishwasher Leveling Leg
23	W11486091 Whirlpool Rear Panel
24	WP356138 Whirlpool Hose Clamp
25	WP489128 Whirlpool Refrigerator Screw
26	W10676061 Whirlpool Cover Assembly
27	W10846509 Whirlpool Screw
28	WPW10280024 Whirlpool Retainer
29	W11244231 Whirlpool Hose
