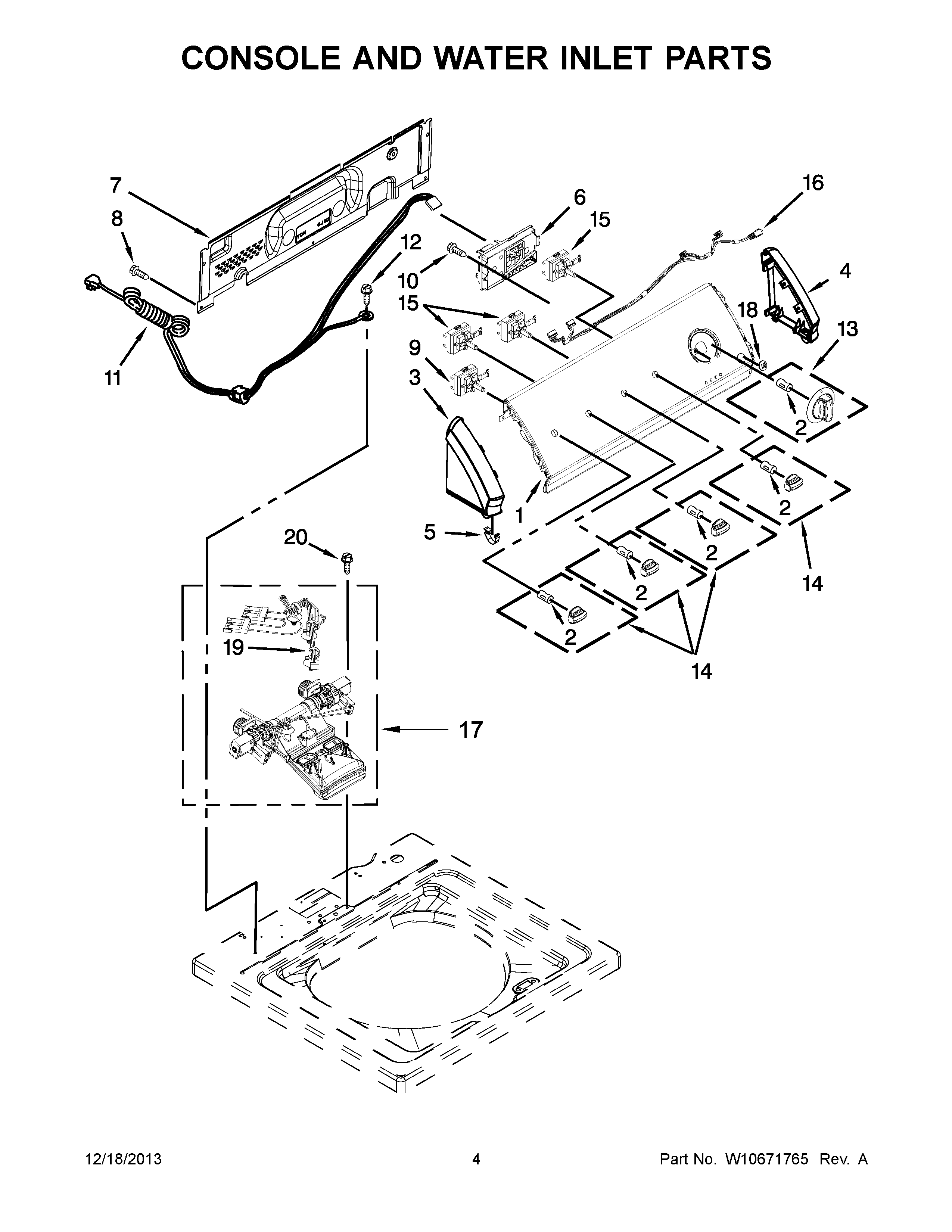

CAW12444BW0 03 – CONSOLE AND WATER INLET PARTS

CAW12444BW0 03 – CONSOLE AND WATER INLET PARTS

Written by

in

CAW12444BW0 03 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8559502 Whirlpool Endcap Assembly
4WP8559501 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10661845-includeCORE Whirlpool W10661845 Refrigerator Electronic Control Board
7WPW10461159 Whirlpool Rear Panel
8WPW10213953 Whirlpool Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10317457 Whirlpool Knob
14W10317458 Whirlpool Knob
15WPW10285511 Whirlpool Cycle Switch
16WPW10291176 Whirlpool Wire Harness
17WPW10683603 Whirlpool Dishwasher Water Inlet Valve
18W10272474 Whirlpool Push Button
19W10876654 Whirlpool Wire Harness
20WP8281163 Whirlpool Refrigerator Screw
