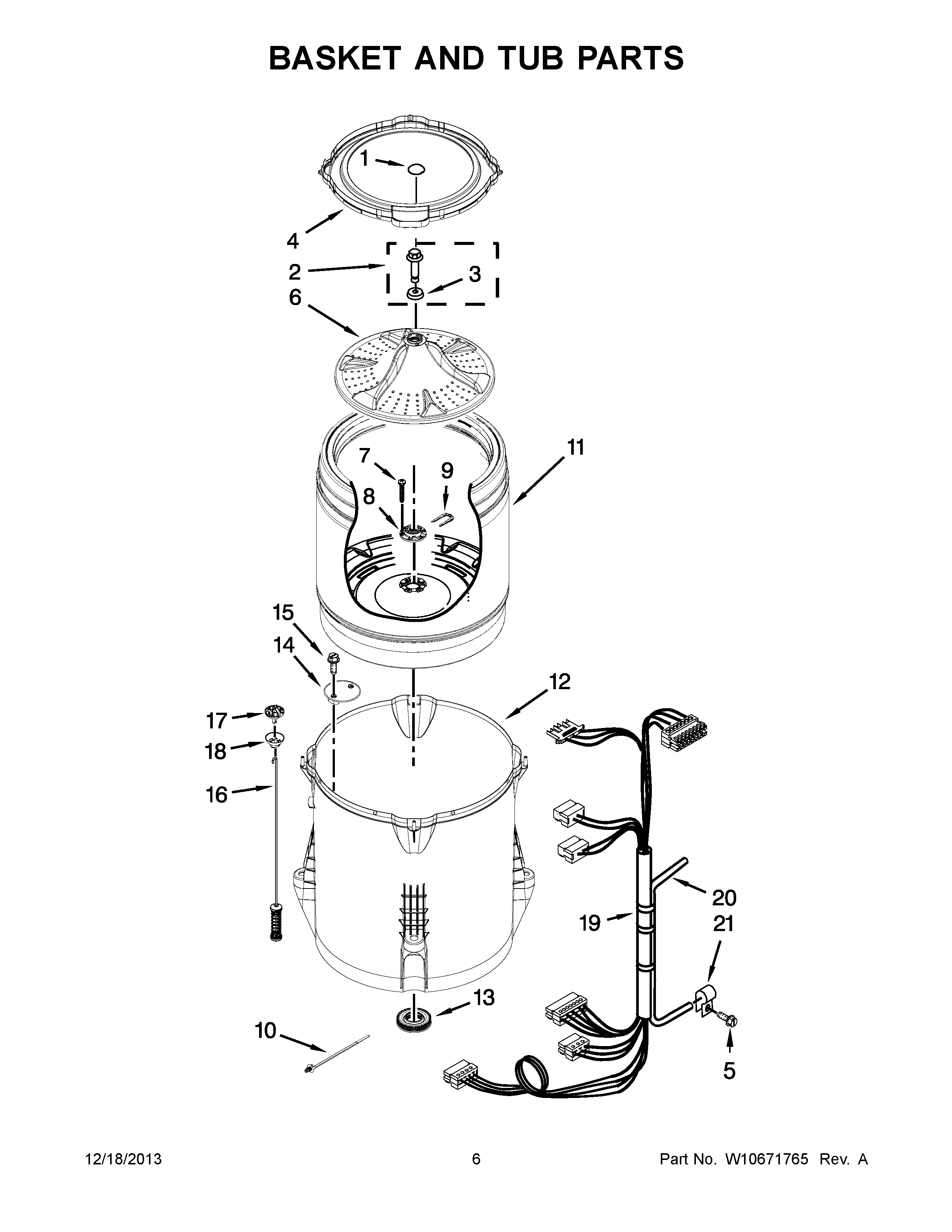

CAW12444BW0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	WPW10305259 Whirlpool Cap
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	WPW10556325 Whirlpool Tub Ring
5	WPW10109200 Whirlpool Screw
6	WPW10215115 Whirlpool Washplate
7	WP8533953 Whirlpool Screw
8	W10528947 Whirlpool Washer Drive Hub Assembly
9	RETAINER
10	WPW10339879 Whirlpool Wire Tie
11	W10521298 Whirlpool Basket
12	W10324648 Whirlpool Outer Tub
13	W10324647 Whirlpool Seal Tub
14	WPW10215093 Whirlpool Filter
15	WP8533928 Whirlpool Refrigerator Screw
16	W10780044 Whirlpool Suspension Assembly
17	BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
18	W10440729 Whirlpool Suspension
19	HARNESS, LOWER
20	W10846364 Whirlpool Hose
21	W10005430 Whirlpool Clamp
