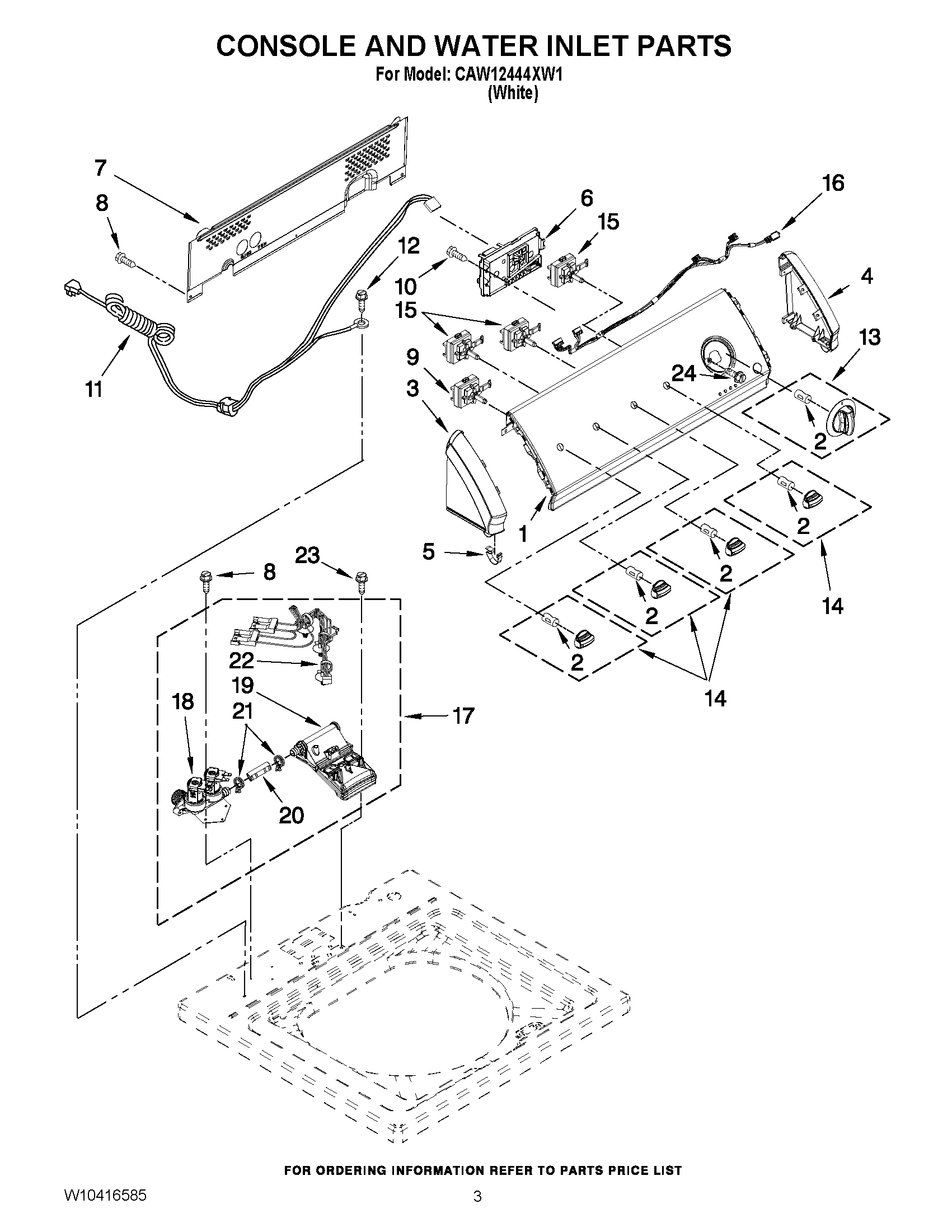

CAW12444XW1 02 – CONSOLE AND WATER INLET PARTS

CAW12444XW1 02 – CONSOLE AND WATER INLET PARTS

Written by

in

CAW12444XW1 02 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8559502 Whirlpool Endcap Assembly
4WP8559501 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6CONTROL UNIT ASSEMBLY, MACHINE & MOTOR
7WPW10420985 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10317457 Whirlpool Knob
14W10317458 Whirlpool Knob
15WPW10285511 Whirlpool Cycle Switch
16WPW10291176 Whirlpool Wire Harness
17WPW10432353 Whirlpool Valve Assembly
18WPW10356257 Whirlpool Valve
19WPW10441423 Whirlpool Vacuum Breaker
20W10238347 Whirlpool Hose Assembly
21WP596669 Whirlpool Hose Clamp
22WPW10344775 Whirlpool Wire Harness
23WP8281163 Whirlpool Refrigerator Screw
24WP3400818 Whirlpool Screw
