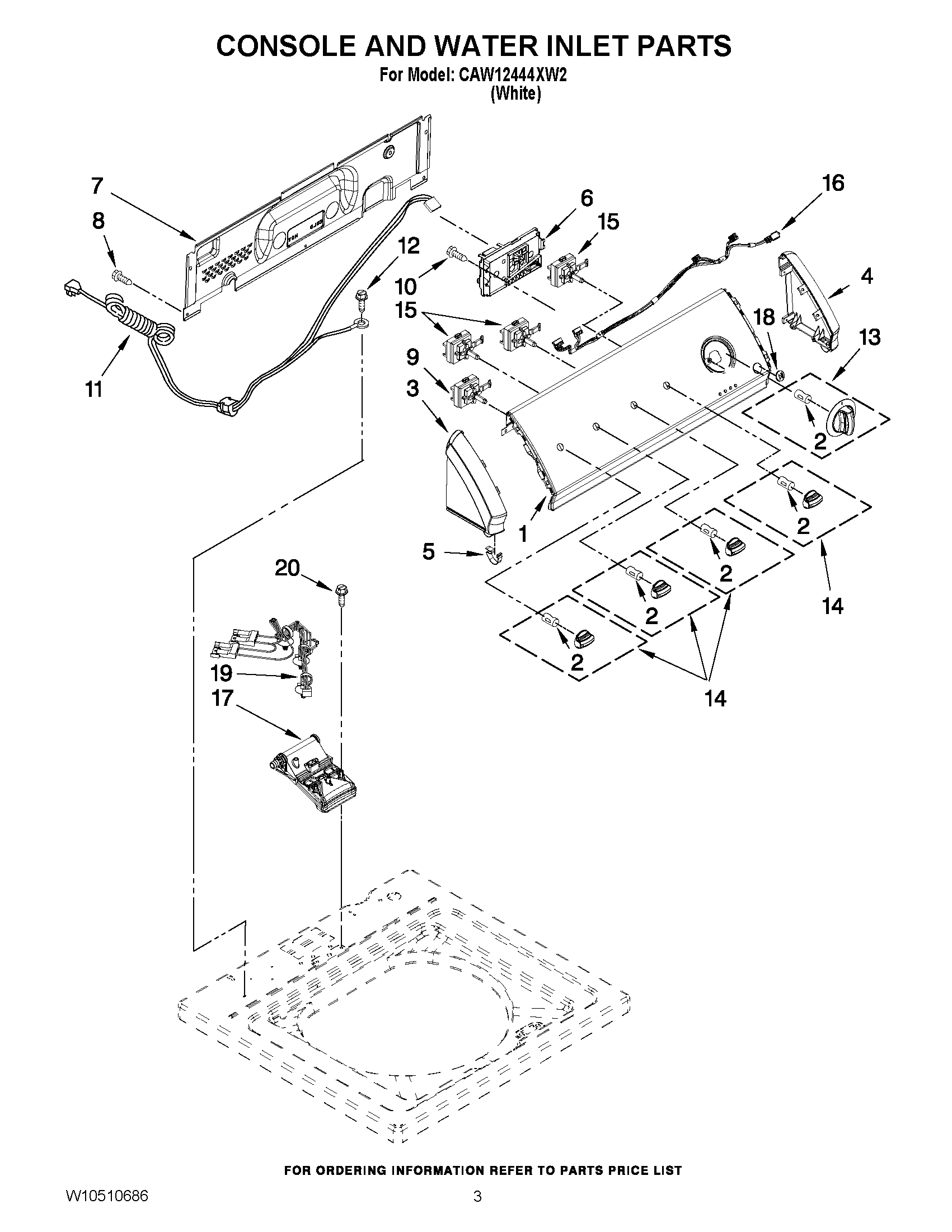

CAW12444XW2 02 – CONSOLE AND WATER INLET PARTS

Products

Position	Product
1	MAY W10317198
2	CLIP, SPRING
3	ENDCAP ASSEMBLY, LEFT HAND (WHITE)
4	ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
5	MAY 8312709
6	MAY W10480294
7	MAY W10461159
8	MAY 1157158
9	SWITCH, ROTARY ENCODER
10	SCREW,8-18 X 3/8
11	MAY W10276649
12	Screw, 10-32 x 5/8
13	KNOB ASSEMBLY, TIMER
14	KNOB ASSEMBLY, CONTROL
15	MAY W10285511
16	MAY W10291176
17	MAY W10423125
18	MAY W10272474
19	MAY W10423127
20	Screw
