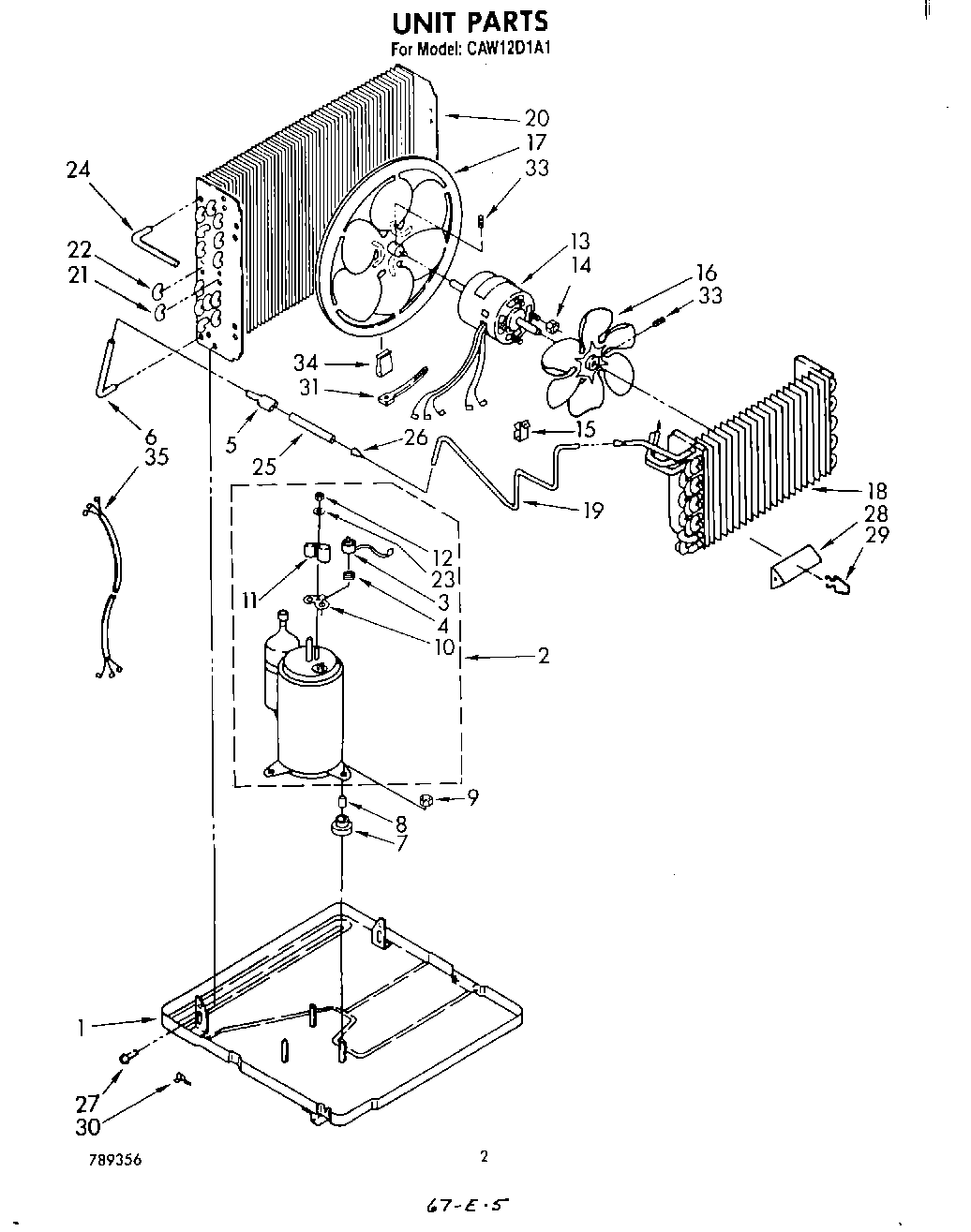

CAW12D1A1 02 – SECTION

Products

Position	Product
1	Base
2	Compressor
3	Overload
4	Spring, Overload
5	Tube, Flow Divider
6	Tube, Outlet
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Clamp, Wiring
16	Blade, Fan (Evaporator)
17	Blade, Condenser Fan
18	Evaporator
19	Tube, Restrictor (2)
20	WPL 951015
21	Bend, Return Evaporator (4)
22	Bend, Return Evaporator (11)
23	Gasket, Nut
24	Tube, 90~ Connect
25	Tube & Strainer (Includes Item 23)
26	Strainer
27	Screw, Repair
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Restrictor Tube
31	WPW10339879 Whirlpool Wire Tie
33	Setscrew, 5/16 x 1/4
34	Clip, Balancing
35	WP978025 Whirlpool Refrigerator Valve
35	VALVE, ACCESS (5/8“)
35	484184 Whirlpool Air Conditioner Winter Cover
35	No Drip Tape (For Sweating Tubes)
35	Kit, Evaporator Repair (Aluminum Epoxy)
35	978030 Whirlpool Refrigerator Valve
35	WPL 484220
35	VALVE, ACCESS (1/2“)
35	978026 Whirlpool Refrigerator Primary Valve
35	Oil, Turbine 1 Fl. Oz.
35	978027 Whirlpool Refrigerator Primary Valve
35	Harness, Wiring
