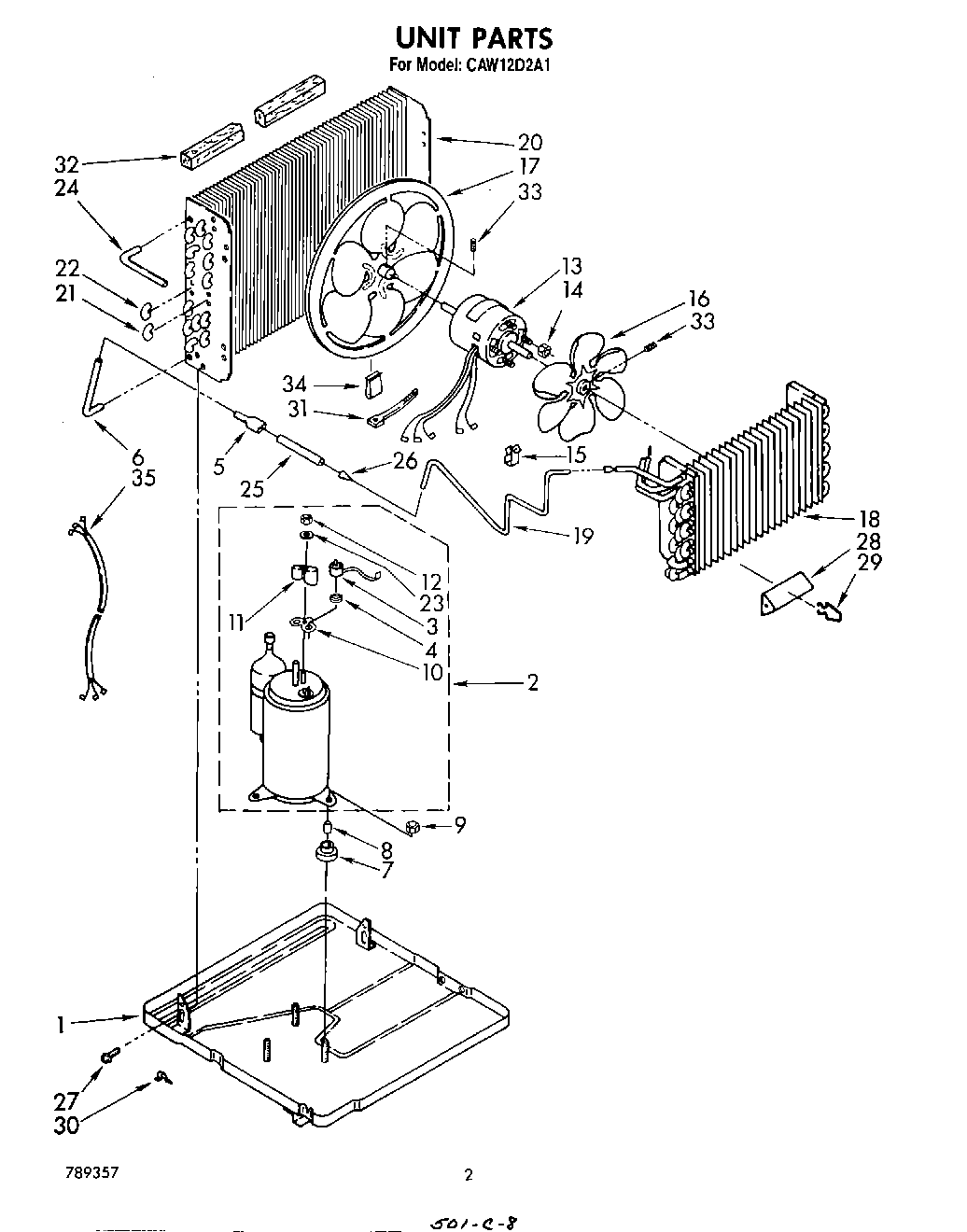

CAW12D2A1 02 – SECTION

Products

PositionProduct
1Base
2WPL 876798
3Overload
4Spring, Overload
5Tube, Flow Divider
6Tube, Outlet
7WP950021 Whirlpool Grommet
8Sleeve (3)
9Locknut (3)
10WP950035 Whirlpool Cover Gasket
11WP950036 Whirlpool Cover Assembly
12WP950027 Whirlpool Mounting Nut
13WPL 947651
14WP488130 Whirlpool Air Conditioner Nut
15Clamp, Wiring
16Blade, Fan (Evaporator)
17Blade, Condenser Fan
18Evaporator
19WPL 950577
20Condenser
21Bend, Return Evaporator (4)
22Bend, Return Evaporator (11)
23Gasket, Nut
24Tube, 90~ Bend
25Tube & Strainer (Includes Item 23)
26Strainer
27Screw, Repair
27WP489069 Whirlpool Compactor Screw
28Anticipator, Temperature
29Clip, Anticipator
30Clamp, Restrictor Tube
31WPW10339879 Whirlpool Wire Tie
32Seal, Condenser Top
33Setscrew, 5/16 x 1/4
34Clip, Balancing
35978030 Whirlpool Refrigerator Valve
35978027 Whirlpool Refrigerator Primary Valve
35978026 Whirlpool Refrigerator Primary Valve
35WP978025 Whirlpool Refrigerator Valve
35VALVE, ACCESS (1/2“)
35VALVE, ACCESS (5/8“)
35Harness, Wiring
35WPL 484220
35Oil, Turbine 1 Fl. Oz.
35Kit, Evaporator Repair (Aluminum Epoxy)
35No Drip Tape (For Sweating Tubes)
35484184 Whirlpool Air Conditioner Winter Cover
