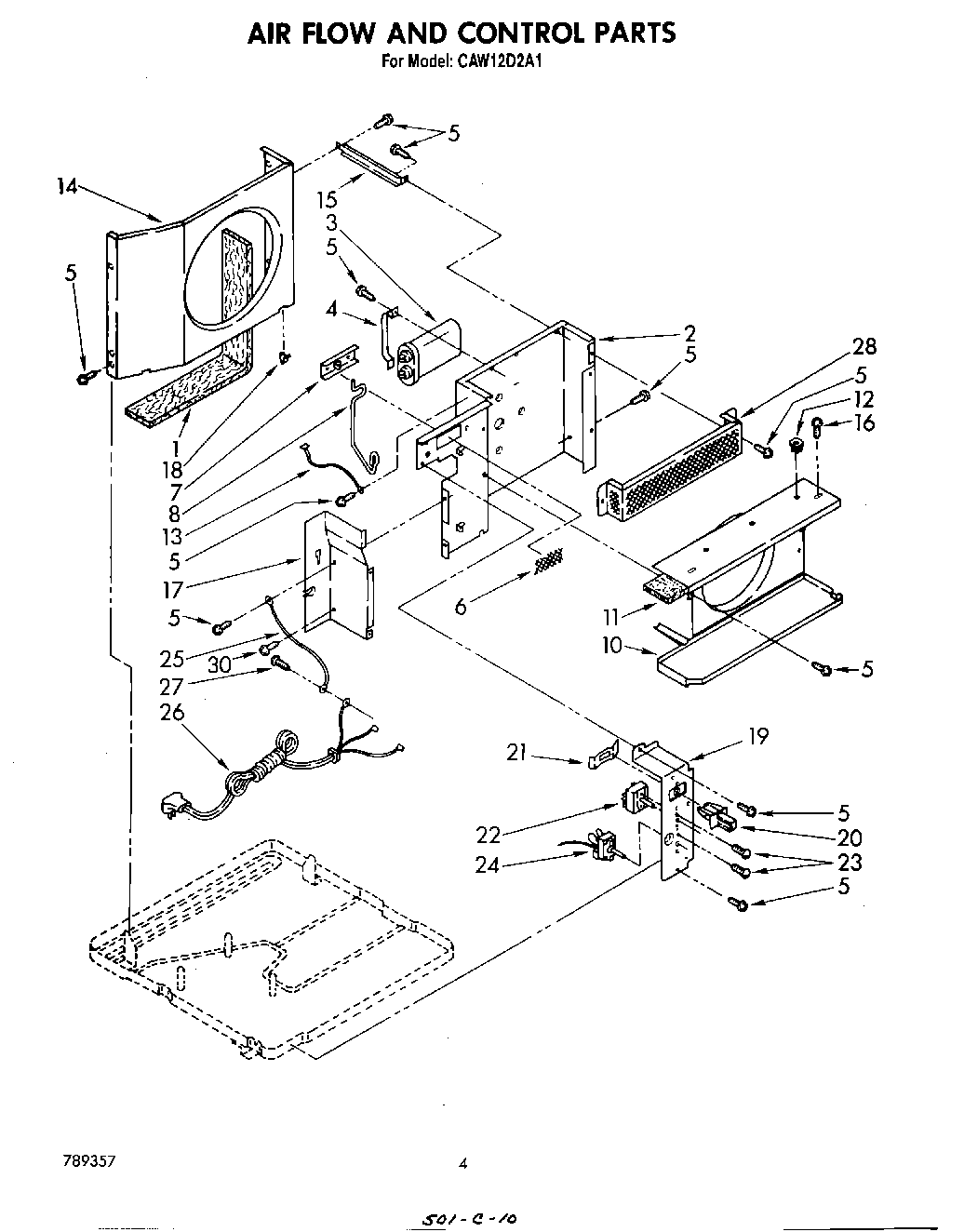

CAW12D2A1 03 – SECTION
Written by
in
CAW12D2A1 03 – SECTION
Products
Position
Product
WPL LIT953086
WPL LIT953076
WPL LIT950581
WPL LIT789357
1
WP854334 Whirlpool Air Conditioner Sealing Strip
2
Wall, Dividing (Requires Insulation Part No. 469938)
3
Capacitor, Running
4
Bracket (Upper)
5
WP489069 Whirlpool Compactor Screw
5
Screw, Repair
6
Screen, Exhaust Door
7
Door, Exhaust
8
Arm, Door
10
Shro\ud,\ Evaporator (Includes Item 11)
11
Insulation, Evaporator Cover
12
Fastener, snap (2)
13
Ground Wire
14
Shroud, Condenser
15
support, unit (2)
16
WP488729 Whirlpool Refrigerator Door Screw
17
Extension, Dividing Wall (Requires Insulation Part No. 469938)
18
Clip, Retainer
19
Panel, Control
20
Actuator, Door
21
Spring, Retainer
22
Switch, Rotary
23
Screw, 6-32 x .175
24
Control, Tempetature
25
Wire, Ground
26
WPL 854954
27
WPW10141604 Whirlpool Screw
28
Guard, Evaporator Impeller
30
Lacquer, Starlight Gray (1/2 Pt. Uncut)
30
Wire, Red, (25 Ft.)
30
WPL 649939
30
Wire, 25“ Roll (Black 12 GA.)
30
Screw, 8 x 3/8
30
Wire, 25“ Roll (White 12 GA.)
30
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
30
212643 Whirlpool Refrigerator Permagum Sealer
30
Insulation, Fiberglass (1/4“ x 24“ x 48“)
←
