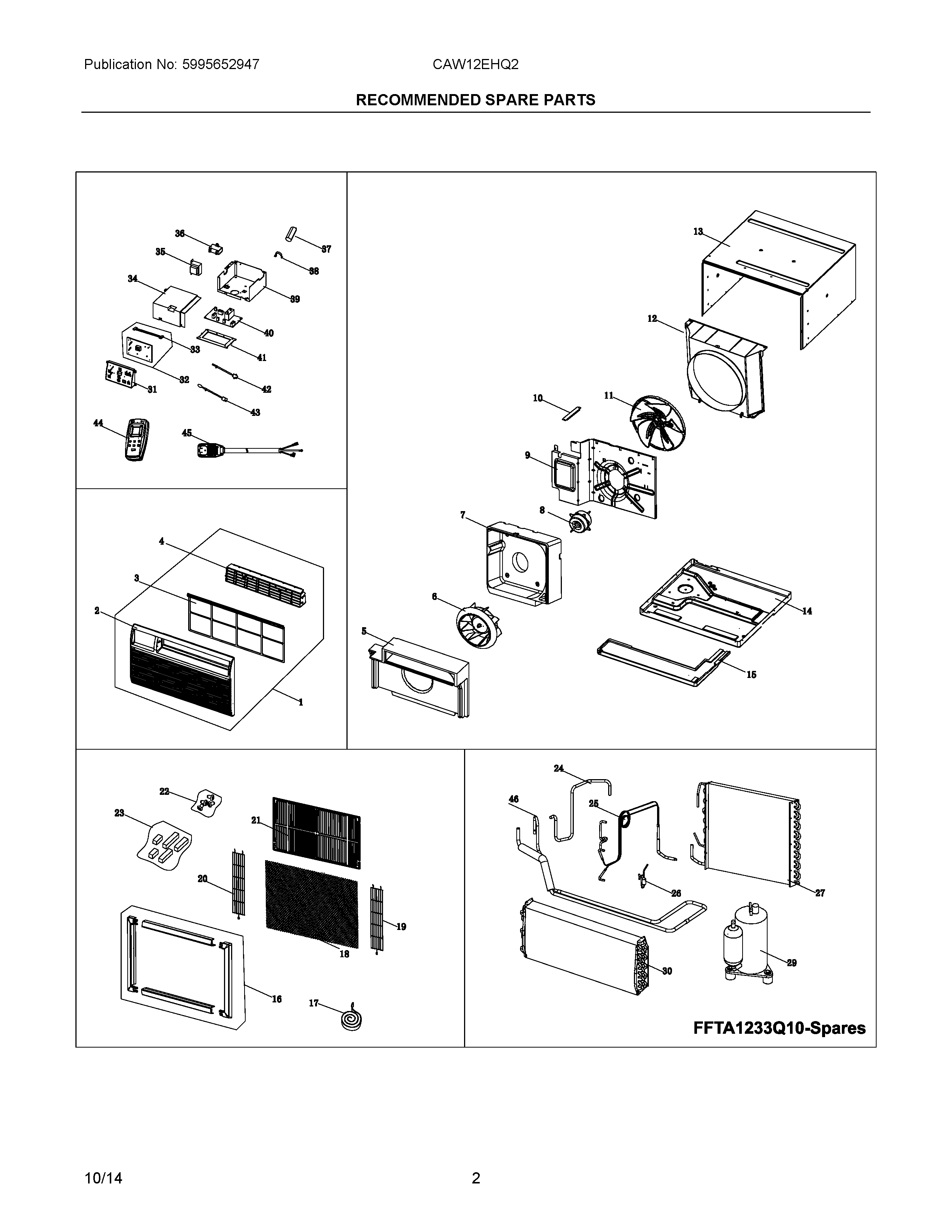

CAW12EHQ22 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476434
2	WCI 5304476435
3	5304528926 Frigidaire Air Conditioner Filter
4	5304476437 Frigidaire Air Conditioner Louver
5	Scroll,blower housing ,front
6	5304471193 Frigidaire Air Conditioner Blower Wheel
7	WCI 5304476439
8	WCI 5304475749
9	WCI 5304470964
10	WCI 5304470965
11	5304470971 Frigidaire Air Conditioner Fan Blade
12	WCI 5304492058
13	WCI 5304496447
14	WCI 5304495505
15	WCI 5304470961
16	5304535826 Frigidaire Trim
17	WCI 5304470974
18	5304470975 Frigidaire Grill
19	WCI 5304482547
20	WCI 5304482548
21	WCI 5304482549
22	WCI 5304470978
23	WCI 5304470979
24	5304495514 Frigidaire Tube
25	5304495515 Frigidaire Tube
26	5304476367 Frigidaire Air Conditioner Filter Drier
27	WCI 5304482555
29	5304493238 Frigidaire COMPRESSOR
30	WCI 5304495516
31	Control Panel,with overlay
32	WCI 5304483572
33	5304480400 Frigidaire Air Conditioner Wire
34	WCI 5304476448
35	5304471063 Frigidaire Air Conditioner Transformer
36	5304471103 Frigidaire Air Conditioner Capacitor
37	5304493239 Frigidaire Air Conditioner Capacitor
38	Strap,capacitor clamp
39	WCI 5304476617
40	5304495510 Frigidaire Air Conditioner PC Board
41	WCI 5304495029
42	5304495518 Frigidaire Sensor
43	5304512374 Frigidaire Air Conditioner Sensor
44	Remote Control,transmitter
45	Power Cord,electric ,LCDI
46	Tube,condensate evap ,drain pan
