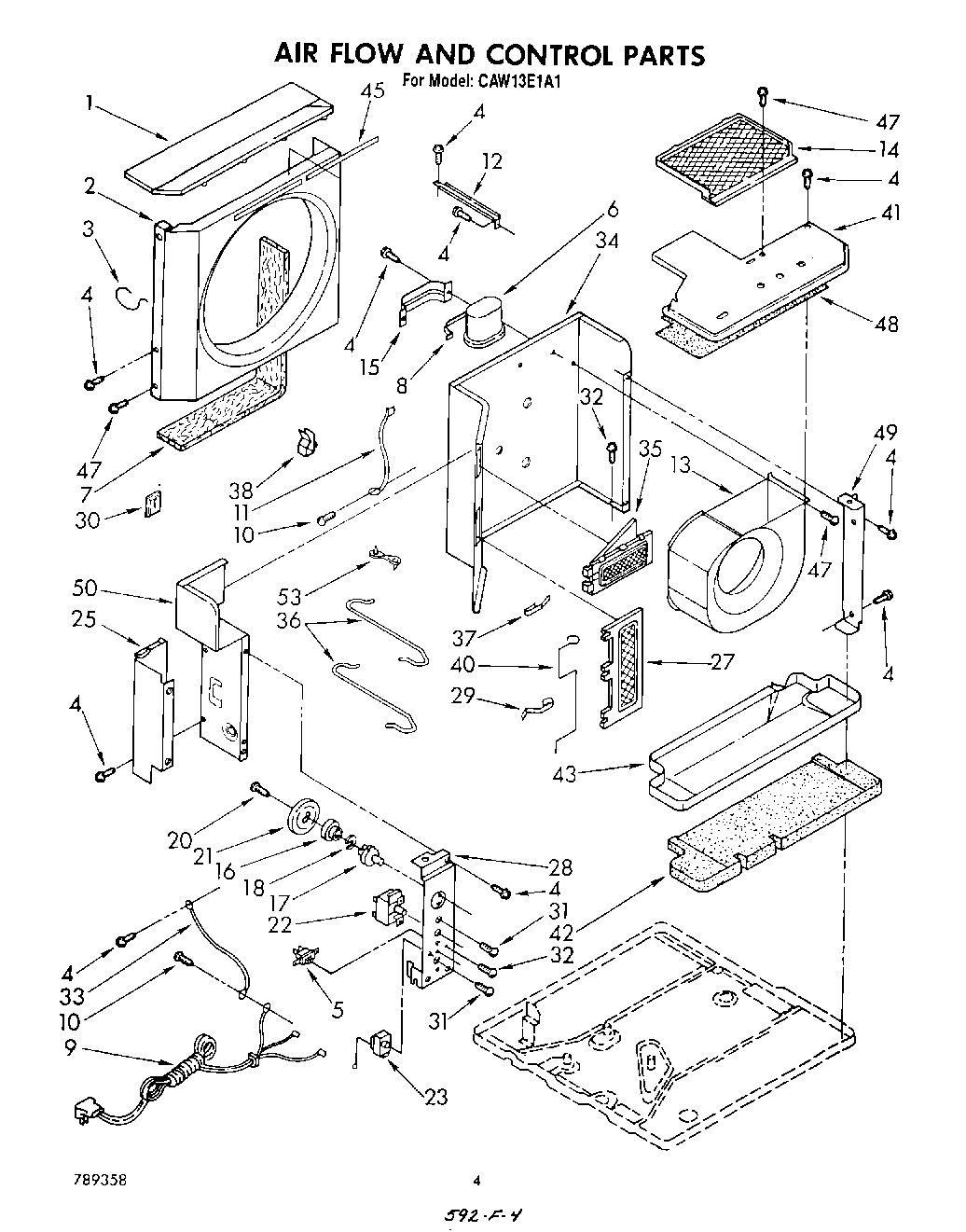

CAW13E1A1 03 – AIR FLOW AND CONTROL , LIT/OPTIONAL

Products

Position	Product
1	Cover, Condenser Shroud
2	Shroud (Requires Insulation No. 469938)
3	Clip, Shroud (2)
4	WP489069 Whirlpool Compactor Screw
4	WP308685 Whirlpool Microwave Screw
5	Switch, Sliding
6	WPL 951655
7	Seal, Condenser Fin
8	Bracket (Upper)
9	Cable, Appliance
10	WPW10141604 Whirlpool Screw
11	Wire, Ground (2)
12	support, unit (2)
13	Housing, Blower Wheel
14	Guard, Evaporator Impeller
15	Bracket (Lower)
16	Bushing, Shaft
17	Shaft, Control Exhaust
18	Washer
20	WP98165 Whirlpool Screw
21	Cam, Exhaust
22	Switch, Rotary (On – Off)
23	Control, Temperature
25	Cover, Control Access
27	Door, Fresh Air
28	Panel, Control
29	Spring, Door
30	Seal, Tube
31	Screw, 6-32 x .175
32	Screw, 8 x 3/8
33	Ground Wire
34	Wall, Dividing
35	Door, Exhaust
36	Wire, Control
36	Wire, C
37	Spring, Door
38	Clamp, Cable
40	Actuator, Door
41	Cover, Evaporator
42	Insulation, Pan
43	Pan, Condensate
45	seal, strip (shroud) (side)
45	Seal, Strip
45	WP854334 Whirlpool Air Conditioner Sealing Strip
47	WP488729 Whirlpool Refrigerator Door Screw
48	Insulation, Evaporator Cover
49	Adapter, Evaporator Header Plate
50	Extension Assembly, Divider Wall
53	Cover, Winter (27 x 19 x 6 to 27“)
53	212643 Whirlpool Refrigerator Permagum Sealer
53	WPL 854937
53	WPL 854938
53	Wire, 25“ Roll (Black 12 GA.)
53	Insulation, Base
53	WPL 998179
53	WPL 978317
53	WPL 855438
53	Clamp, Cable
53	Wire, Red, (25 Ft.)
53	Wire, 25“ Roll (White 12 GA.)
53	Retainer, Cord (Winter Cover)
53	WPL 485246
