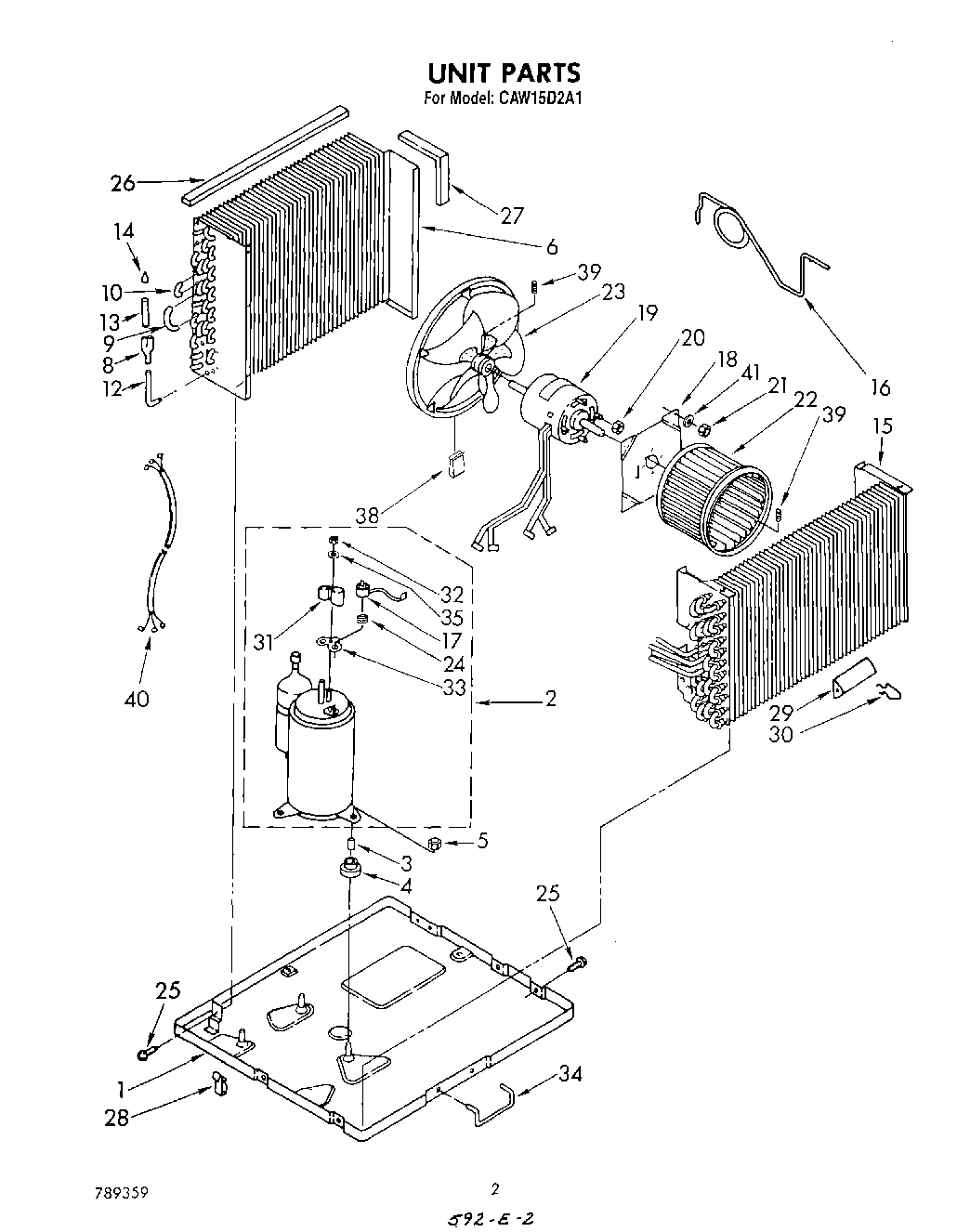

CAW15D2A1 02 – UNIT

Written by

CAW15D2A1 02 – UNIT

Products

Position	Product
1	Base
2	Compressor
3	Sleeve (3)
4	WP950021 Whirlpool Grommet
5	Locknut (3)
6	WPL 951296
8	Tube, Flow Divider
9	WP855199 Whirlpool Bend Return
10	Bend, Return Evaporator (11)
12	Tube, Outlet
13	Tube & Strainer (Includes Item 23)
14	Strainer
15	Evaporator
16	WPL 951295
17	Overload
18	WPL 998024
19	Motor, Fan
20	WP488130 Whirlpool Air Conditioner Nut
21	Nut, Hex (4)
22	Wheel, Blower
23	Blade, Fan
24	Spring, Overload
25	WP489069 Whirlpool Compactor Screw
26	WPL 649609
27	WPL 649610
28	Clamp, Restrictor Tube
29	Anticipator
30	Clip (2)
31	WP950036 Whirlpool Cover Assembly
32	WP950027 Whirlpool Mounting Nut
33	WP950035 Whirlpool Cover Gasket
34	WPL 647971
35	Gasket, Nut
38	Clip, Fan Balancing
39	Setscrew, 5/16 x 1/4
40	Harness, Wiring
41	Kit, Evaporator Repair (Aluminum Epoxy)
41	978026 Whirlpool Refrigerator Primary Valve
41	978027 Whirlpool Refrigerator Primary Valve
41	WP978025 Whirlpool Refrigerator Valve
41	978030 Whirlpool Refrigerator Valve
41	No Drip Tape (For Sweating Tubes)
41	VALVE, ACCESS (5/8“)
41	Washer, Repair (4)
41	Oil, Turbine 1 Fl. Oz.
41	VALVE, ACCESS (1/2“)
