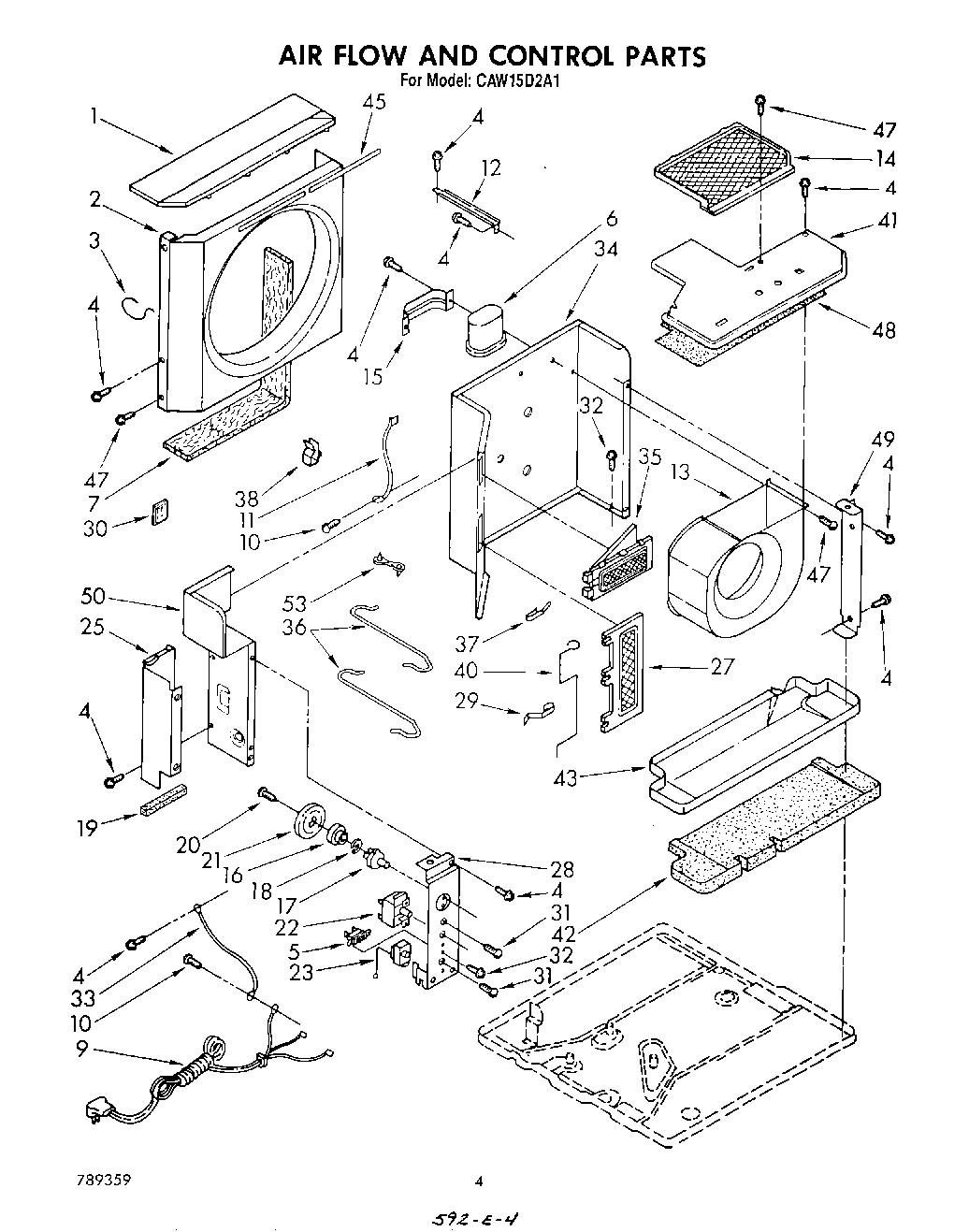

CAW15D2A1 03 – AIR FLOW AND CONTROL , LIT/OPTIONAL

Products

Position	Product
1	Cover, Condenser Shroud
2	Shroud, Condenser
3	Clip, Shroud (2)
4	WP489069 Whirlpool Compactor Screw
4	WP308685 Whirlpool Microwave Screw
5	Switch, Sliding
6	Capacitor, Running
7	Seal, Condenser Fin
9	Cable
10	WPW10141604 Whirlpool Screw
11	Wire, Ground (2)
12	support, unit (2)
13	Housing, Blower Wheel
14	Guard, Evaporator Impeller
15	Bracket (Lower)
16	Bushing, Shaft
17	Shaft, Control
18	Washer
19	Seal
20	WP98165 Whirlpool Screw
21	Cam, Exhaust
22	Switch, Rotary (On – Off)
23	WPL 951073
25	Cover, Control Access
27	Door, Fresh Air
28	Panel, Control
29	Spring, Door
30	Seal, Tube
31	Screw, 6-32 x .175
32	Screw, 8 x 3/8
33	Ground Wire
34	Wall, Dividing
35	Door, Exhaust
36	Wire, C
36	Wire, Control
37	Spring, Door
38	Clamp, Cable
40	Actuator, Door
41	Cover, Evaporator
42	Insulation, Pan
43	Pan, Condensate
45	Seal, Strip
45	seal, strip (shroud) (side)
45	WP854334 Whirlpool Air Conditioner Sealing Strip
47	WP488729 Whirlpool Refrigerator Door Screw
48	Insulation, Evaporator Cover
49	Adapter, Evaporator Header Plate
50	Extension, Dividing Wall
53	Wire, 25“ Roll (Black 12 GA.)
53	WPL 998179
53	212643 Whirlpool Refrigerator Permagum Sealer
53	Wire, Red, (25 Ft.)
53	Lacquer, Starlight Gray (1/2 Pt. Uncut)
53	Cover, Winter (27 x 19 x 6 to 27“)
53	WPL 854937
53	Retainer, Cord (Winter Cover)
53	Wire, 25“ Roll (White 12 GA.)
53	Clamp, Cable
53	Insulation, Base
53	WPL 855438
53	WPL 854938
53	WPL 978317
