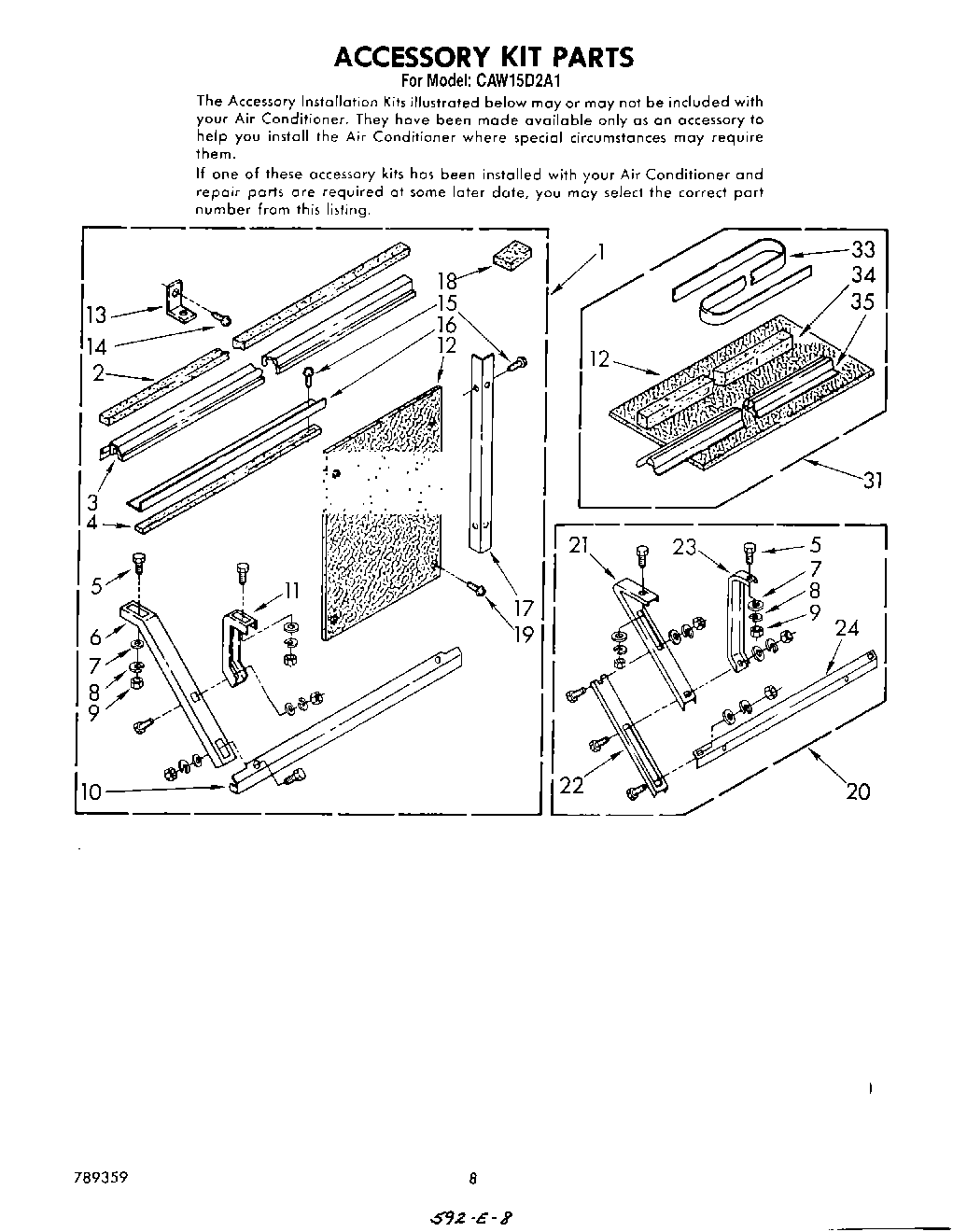

CAW15D2A1 05 – ACCESSORY KIT

Products

Position	Product
1	Kit, Standard Installation
2	Gasket, Meeting Rail
3	Gasket, Sash
4	Strip, Seal
5	Bolt, 1/4 x 3/4 (6)
6	Support, Cabinet (2)
7	WP120393 Whirlpool Washer Assembly
8	Lockwasher (6)
9	Nut, Hex (6)
10	Bracket, Support
11	Support, Retainer (2)
12	Board, Filler
13	Bracket
14	Screw (Window Lock Bracket)
15	WP308685 Whirlpool Microwave Screw
16	Angle, Top Mounting
17	Angle (2)
18	Spacer, Block (4)
19	WP965173 Whirlpool Dishwasher Screw
20	Kit, Outside Support
21	Support, Cabinet (2)
22	Extension, Support (2)
23	Retainer, Cabinet (2)
24	Bracket, Support
31	Kit, Wide Window
33	Strip, Seal
34	Seal, Meeting Rail
35	Gasket, Sash (54“)
35	Instructions, Installation (Standard and Wide Window Kits)
35	Instructions, Installation (Outside Support Kit
