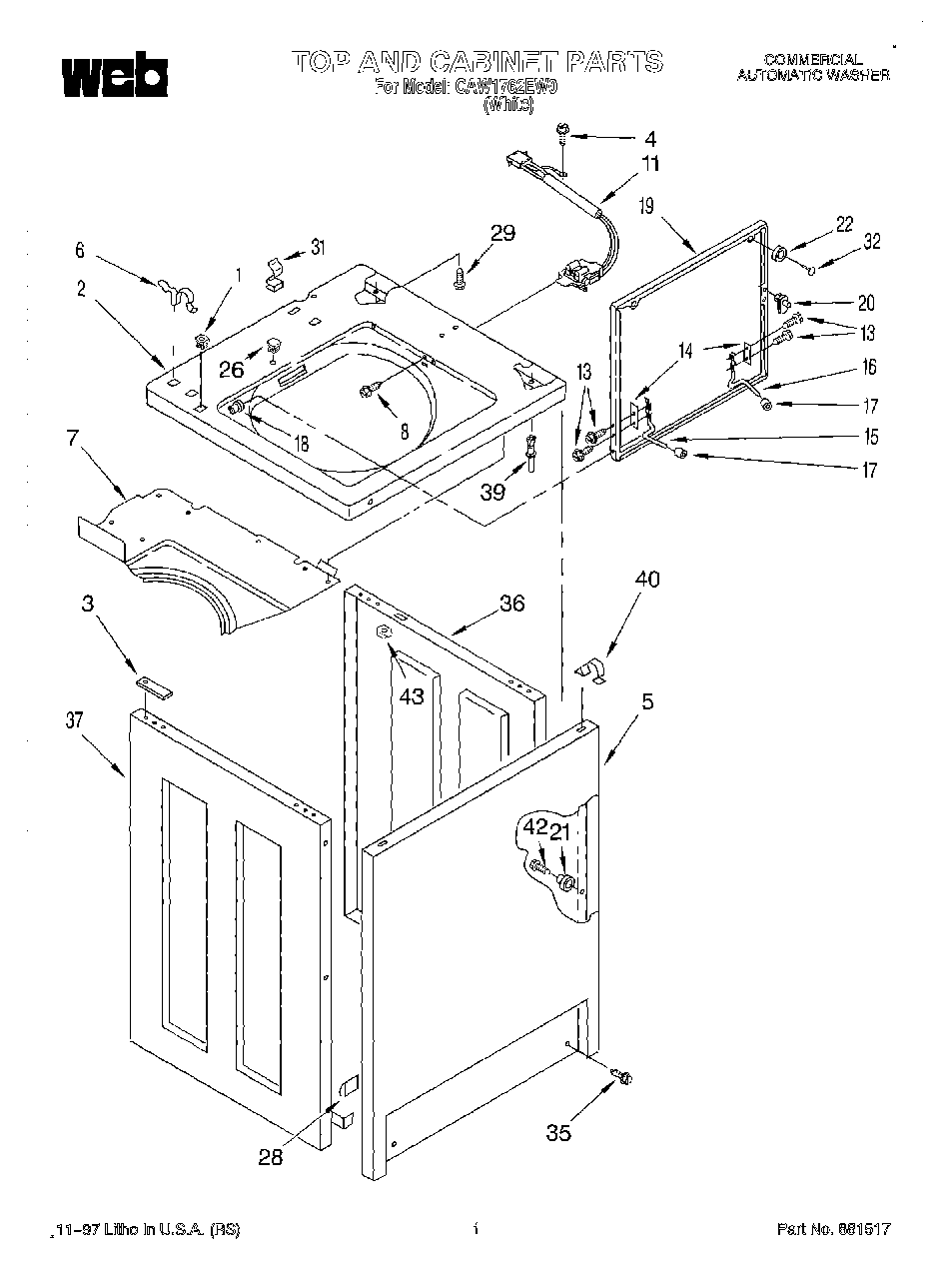

CAW1762EW0 01 – TOP AND CABINET

CAW1762EW0 01 – TOP AND CABINET

Written by

in

CAW1762EW0 01 – TOP AND CABINET

Products

PositionProduct
1Nut, Push-In (2)
2Top
3Spacer, Cabinet To Top (4)
4SCREW
5Panel, Front (Almond)
6WP62780 Whirlpool Cabinet Clip
7Shield, Lid
8WP3356311 Whirlpool Screw
11Switch, Lid
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193854 Whirlpool Lid Assembly
20WP358684 Whirlpool Strike Assembly
21Locator (4)
22BUMPER
26Stop, Push-In Top
28WP98234 Whirlpool Nut
29Screw (2)
31WP90016 Whirlpool Clip
32WP356907 Whirlpool Rivet
35WP3373329 Whirlpool Dishwasher Screw
36Panel, R. H.
37Panel, L. H. (White)
39Pin, Locator (2)
40WP18776 Whirlpool Lock
42WP9741232 Whirlpool Dishwasher Screw
43WP90406 Whirlpool Nut
