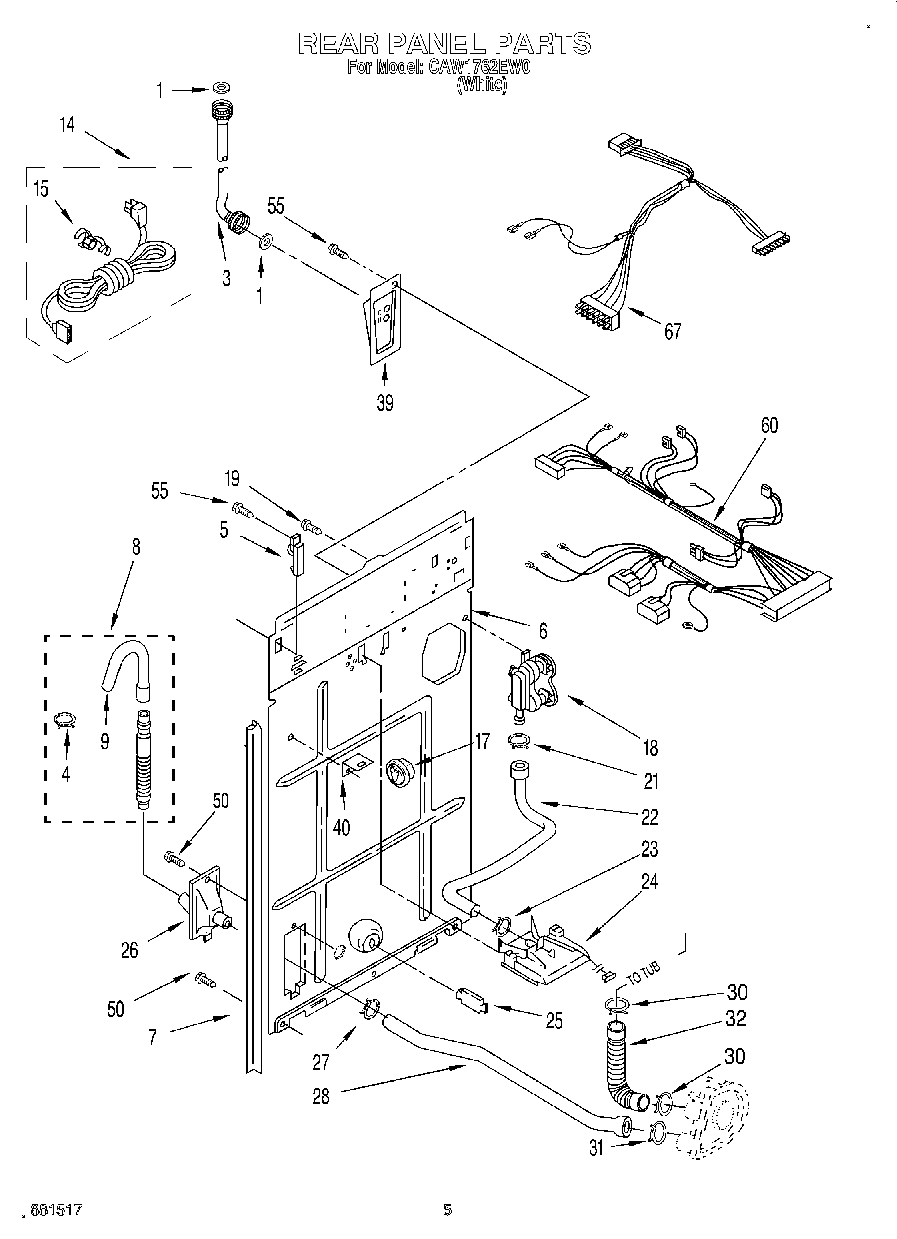

CAW1762EW0 04 – REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357331 Whirlpool Clamp
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	WP3357027 Whirlpool Nozzle Assembly
14	285928 Whirlpool Power Cord Assembly
15	Strain Relief, Power Cord
17	Switch, Water Level
18	285805 Whirlpool Washer Water Inlet Valve
21	WP596669 Whirlpool Hose Clamp
22	Hose, Vacuum Break
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP3348552 Whirlpool Hose
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
39	Plate, Mixing Valve
40	Bracket, Top Lock
50	WP3390631 Whirlpool Screw
55	WP308685 Whirlpool Microwave Screw
60	Harness, Wiring (For Detail See Page 8.) Also See Clips.
67	Harness, Timer
