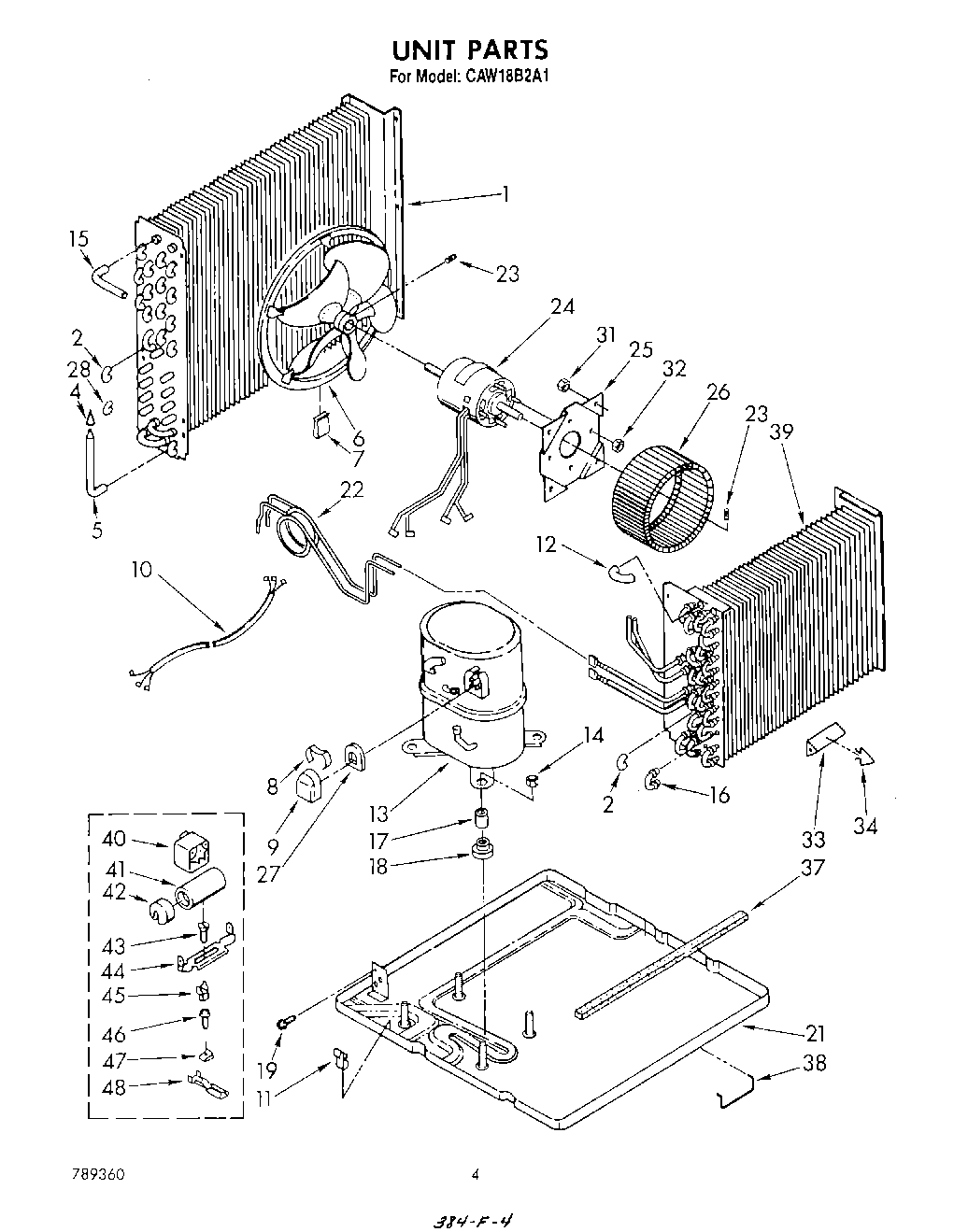

CAW18B2A1 03 – UNIT

Products

Position	Product
1	WPL 949956
2	Bend, Return Evaporator (11)
3	WPW10339879 Whirlpool Wire Tie
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Blade, Fan
7	Clip, Balancing
8	Strap, Terminal Cover
9	Cover, Terminal
10	Harness, Wiring
11	Clamp (2)
12	Bend, Return Condenser (3) Evaporator (1)
13	Compressor
14	Locknut (3)
15	Tube Inlet
16	WP855199 Whirlpool Bend Return
17	Sleeve (4)
18	Grommet (4)
19	WP488729 Whirlpool Refrigerator Door Screw
21	Base
22	Tube, Restrictor (41.0 Length) (2)
23	Setscrew, 5/16 x 1/4
24	WPL 998347
25	WPL 998024
26	Wheel, Blower
27	Gasket, Terminal
28	Bend, Return Evaporator (4)
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip
37	Seal
38	WPL 647971
39	WPL 947330
40	Relay (Component Of Start Kit)
41	Capacitor (Component Of Start Kit)
42	Cap, Capacitor (Component Of Start Kit)
43	Screw, 10 x 5/8 (Component Of Start Kit)
44	xMultiplier, Terminal
45	Multiplier, Terminal (Component Of Start Kit)
46	WP965173 Whirlpool Dishwasher Screw
47	488660 Whirlpool Refrigerator Nut
48	978030 Whirlpool Refrigerator Valve
48	978026 Whirlpool Refrigerator Primary Valve
48	WPL 484220
48	No Drip Tape (For Sweating Tubes)
48	WPL 485883
48	Clip, Terminal (Component Of Start Kit)
48	978027 Whirlpool Refrigerator Primary Valve
48	VALVE, ACCESS (1/2“)
48	VALVE, ACCESS (5/8“)
48	Oil, Turbine 1 Fl. Oz.
48	Kit, Evaporator Repair (Aluminum Epoxy)
48	WP978025 Whirlpool Refrigerator Valve
