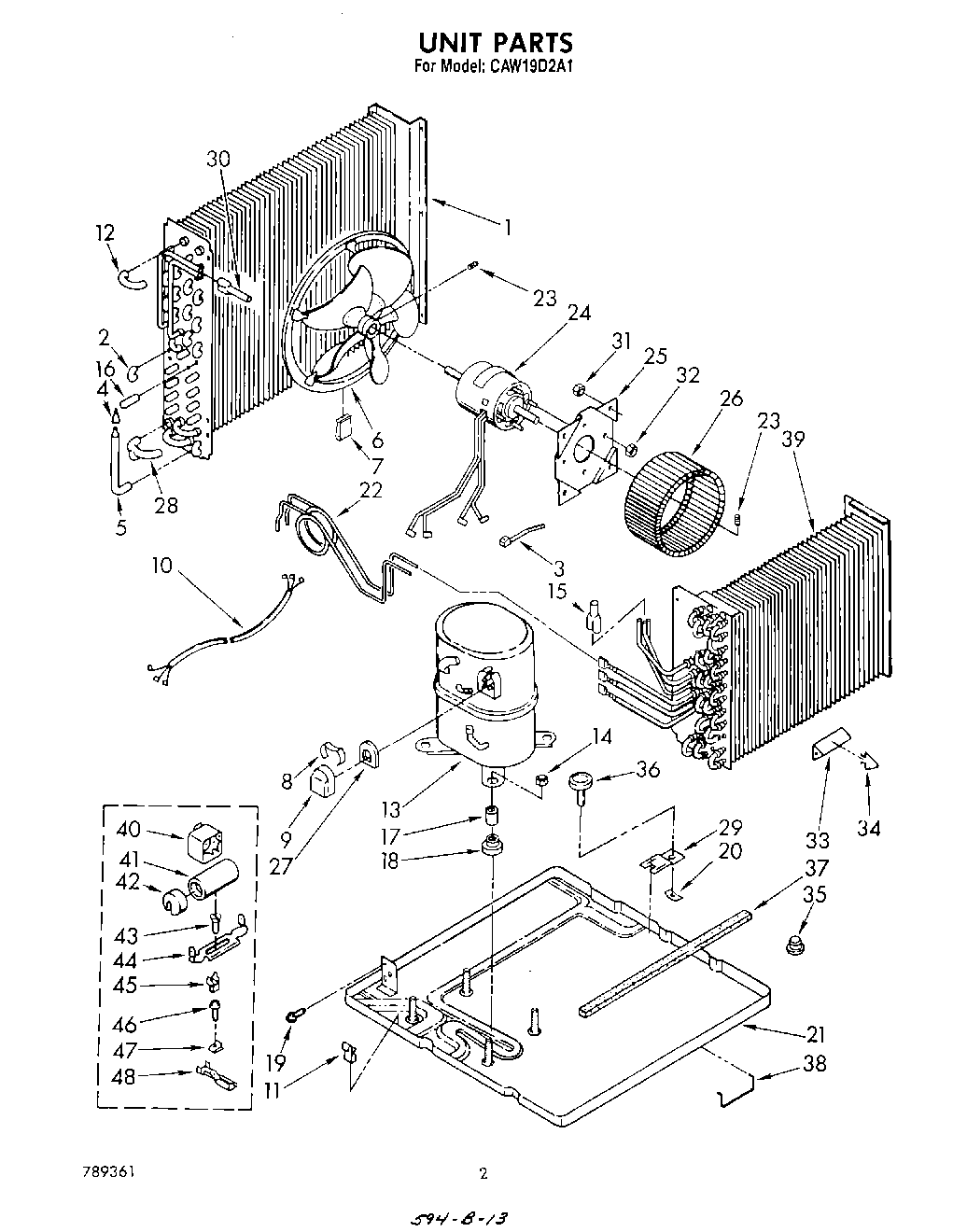

CAW19D2A1 02 – UNIT

CAW19D2A1 02 – UNIT

Written by

in

CAW19D2A1 02 – UNIT

Products

PositionProduct
1Condenser
2Bend, Return Evaporator (11)
3WPW10339879 Whirlpool Wire Tie
4Strainer
5Tube & Strainer (Includes Item 23)
6Blade, Fan
7Clip, Fan Balancing
8Strap, Terminal Cover
9Cover, Terminal
10Harness, Wiring
11Clamp (2)
12Bend, Return Evaporator (4)
12Bend, Return Condenser (3) Evaporator (1)
13Compressor
14Locknut (3)
15Tube, Flow Divider
16WP855199 Whirlpool Bend Return
17Sleeve (4)
18Grommet (4)
19WP488729 Whirlpool Refrigerator Door Screw
20Speed Nut
21Base
22Tube Restrictor (3)
23Setscrew, 5/16 x 1/4
24Motor, Fan
25WPL 998024
26Wheel, Blower
27Gasket, Terminal Cover
28Bend, Return (3-Way)
29Holder, Cup
30Tube, Flow Divider
31Nut, Hex (4)
32WP488130 Whirlpool Air Conditioner Nut
33Anticipator
34Clip (2)
35Bushing, Base
36Cup, Condensate Drain
37Seal
38WPL 647971
39Evaporator
40xRelay
41xCapacitor
42xCap, Capacitor
43Screw, 10 x 5/8 (Component Of Start Kit)
44xMultiplier, Terminal
45multiplier, terminal
46WP965173 Whirlpool Dishwasher Screw
47488660 Whirlpool Refrigerator Nut
48WP978025 Whirlpool Refrigerator Valve
48978026 Whirlpool Refrigerator Primary Valve
48VALVE, ACCESS (5/8“)
48Hard Start Kit
48978027 Whirlpool Refrigerator Primary Valve
48978030 Whirlpool Refrigerator Valve
48VALVE, ACCESS (1/2“)
48Oil, Turbine 1 Fl. Oz.
48Kit, Evaporator Repair (Aluminum Epoxy)
48No Drip Tape (For Sweating Tubes)
48WPL 484220
48Clip, Terminal (Component Of Start Kit)
