CAW19D2A1 04 – CABINET

CAW19D2A1 04 – CABINET

Written by

in

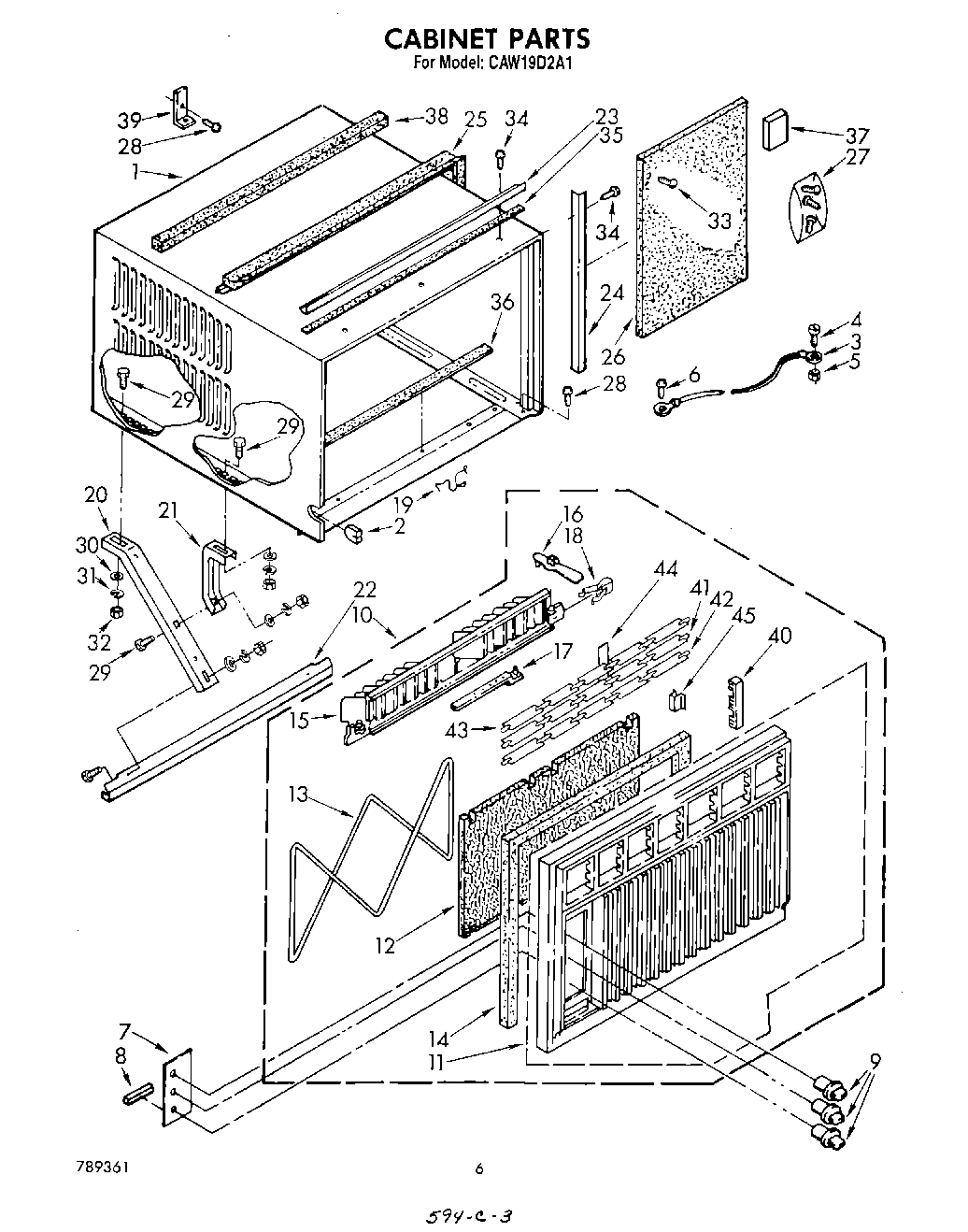

CAW19D2A1 04 – CABINET

Products

PositionProduct
1Cabinet Also order Insulation NO.1157053 (3)
2Grommet, Appliance Cable
3Wire, Ground
4Screw, 8 x 3/8
5WP486255 Whirlpool Air Conditioner Nut
6Screw, 8 x 3/8
7WPL 953005
8Spacer, Escutcheon Plate (2)
9Knob, Control (3)
10Front, Complete
11WPL 953018
12Filter, Air
13Retainer, Filter
14Seal, Front (Bottom)
14Seal, Front (Top & Sides)
15Louver, Vertical
16Handle, Louver (2)
17Link, Louver (2)
18Detent Spring (2)
19Clip, Mtg. (2) (Base to Front)
20Support, Cabinet (2)
21Support, Retainer (2)
22Bracket, Support
23Angle, Top Mounting
24Angle (2)
26Board, Filler
27Bag, Accessory
28Screw (Window Lock Bracket)
29Bolt, 1/4 x 3/4 (6)
30WP120393 Whirlpool Washer Assembly
31Lockwasher (6)
32Nut, Hex (6)
33WP965173 Whirlpool Dishwasher Screw
34WP308685 Whirlpool Microwave Screw
35Strip, Seal
36Seal, Bottom
37Spacer, Block (4)
38Gasket, Meeting Rail
39Gasket, Sash
40Rack, Louver (2)
41louver, horizontal (handle)
42louver, horizontal (notched)
43Louver, Horizontal (4)
44Retainer (4)
45Clip, Retainer (4)
