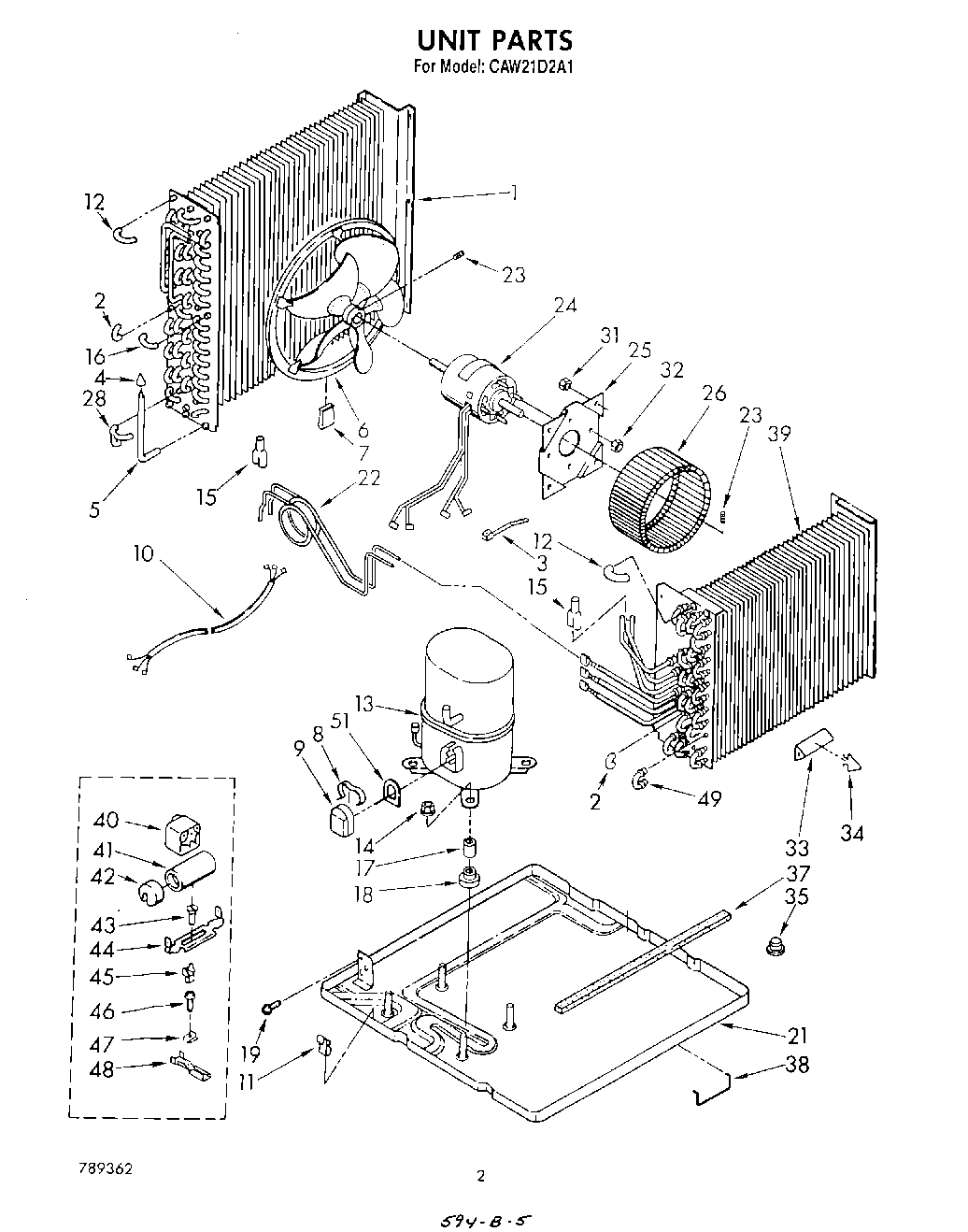

| 1 | Condenser |
| 2 | Bend, Return Evaporator (11) |
| 3 | WPW10339879 Whirlpool Wire Tie |
| 4 | Strainer |
| 5 | Tube & Strainer (Includes Item 23) |
| 6 | Blade, Fan |
| 7 | Clip, Fan Balancing |
| 8 | Retainer, Cover |
| 9 | Cover, Terminal |
| 10 | Harness, Wiring |
| 11 | Clamp (2) |
| 12 | Bend, Return Evaporator (4) |
| 12 | Bend, Return Condenser (3) Evaporator (1) |
| 13 | Compressor |
| 14 | Locknut (3) |
| 15 | Tube, Flow Divider |
| 16 | WP855199 Whirlpool Bend Return |
| 17 | Sleeve (4) |
| 18 | Grommet (4) |
| 19 | WP488729 Whirlpool Refrigerator Door Screw |
| 21 | Base |
| 22 | Tube Restrictor (3) |
| 23 | Setscrew, 5/16 x 1/4 |
| 24 | Motor, Fan |
| 25 | WPL 998024 |
| 26 | Wheel, Blower |
| 28 | Bend, Return (3-Way) |
| 31 | Nut, Hex (4) |
| 32 | WP488130 Whirlpool Air Conditioner Nut |
| 33 | Anticipator, Temperature |
| 34 | WPL 949564 |
| 35 | Bushing, Base |
| 37 | Seal |
| 38 | WPL 647971 |
| 39 | Evaporator |
| 40 | xRelay |
| 41 | xCapacitor |
| 42 | xCap, Capacitor |
| 43 | Screw, 10 x 5/8 (Component Of Start Kit) |
| 44 | xMultiplier, Terminal |
| 45 | multiplier, terminal |
| 46 | WP965173 Whirlpool Dishwasher Screw |
| 47 | 488660 Whirlpool Refrigerator Nut |
| 48 | Clip, Terminal (Component Of Start Kit) |
| 49 | Bend, Return (4) |
| 51 | Gasket, Terminal Cover |
| 51 | 978026 Whirlpool Refrigerator Primary Valve |
| 51 | Oil, Turbine 1 Fl. Oz. |
| 51 | VALVE, ACCESS (5/8``) |
| 51 | 978027 Whirlpool Refrigerator Primary Valve |
| 51 | WP978025 Whirlpool Refrigerator Valve |
| 51 | WPL 484220 |
| 51 | No Drip Tape (For Sweating Tubes) |
| 51 | Kit, Evaporator Repair (Aluminum Epoxy) |
| 51 | 978030 Whirlpool Refrigerator Valve |
| 51 | VALVE, ACCESS (1/2``) |
| 51 | Hard Start Kit |
