CAW21D2A1 04 – CABINET

CAW21D2A1 04 – CABINET

Written by

in

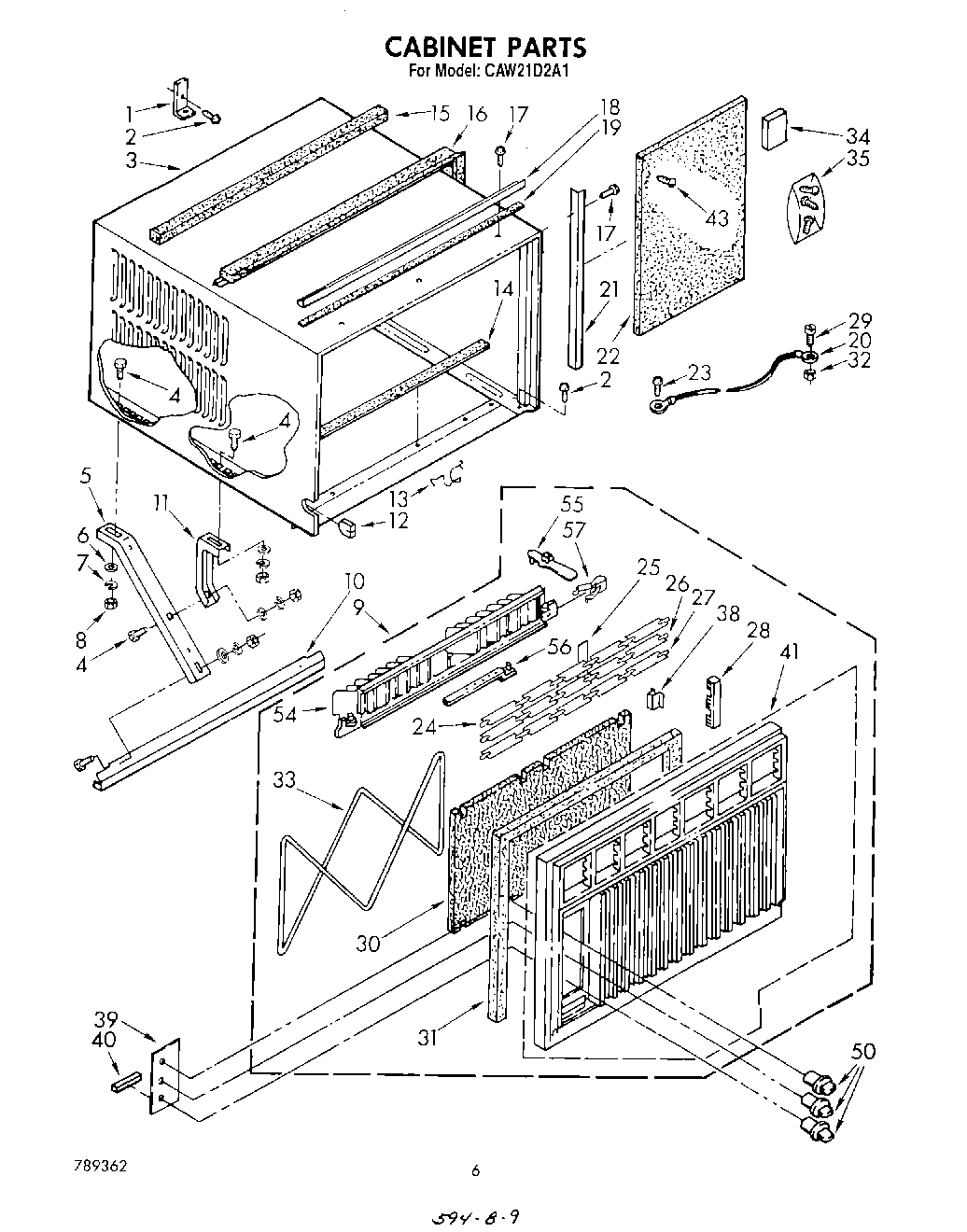

CAW21D2A1 04 – CABINET

Products

PositionProduct
1Bracket
2Screw (Window Lock Bracket)
3Cabinet Also order Insulation NO.1157053 (3)
4Bolt, 1/4 x 3/4 (6)
5Support, Cabinet (2)
6WP120393 Whirlpool Washer Assembly
7Lockwasher (6)
8Nut, Hex (6)
10Bracket, Support
11Support, Retainer (2)
12Grommet, Appliance Cable
13Clip, Mtg. (3)
14Seal, Bottom
15Gasket, Meeting Rail
16Gasket, Sash
17WP308685 Whirlpool Microwave Screw
18Angle, Top Mounting
19Strip, Seal
20Wire, Ground
21Angle (2)
22Board, Filler
23Screw, 8 x 3/8
24Louver, Horizontal (4)
25Retainer (4)
26louver, horizontal (handle)
27louver, horizontal (notched)
28Rack, Louver (2)
29Screw, 8 x 3/8
30Filter, Air
31Seal, Front (Bottom)
31Seal, Front (Top & Sides)
32WP486255 Whirlpool Air Conditioner Nut
33Retainer, Filter
34Spacer, Block (4)
35Bag, Accessory
38Clip, Retainer (4)
39WPL 953005
40Spacer, Escutcheon Plate (2)
41Front, Complete
43WP965173 Whirlpool Dishwasher Screw
50Knob, Control (3)
54WPL 953064
55Handle, Vertical Louver (2)
56Link, Louver (2)
57Detent Spring (2)
