CAW25C2A1 02 – CABINET

CAW25C2A1 02 – CABINET

Written by

in

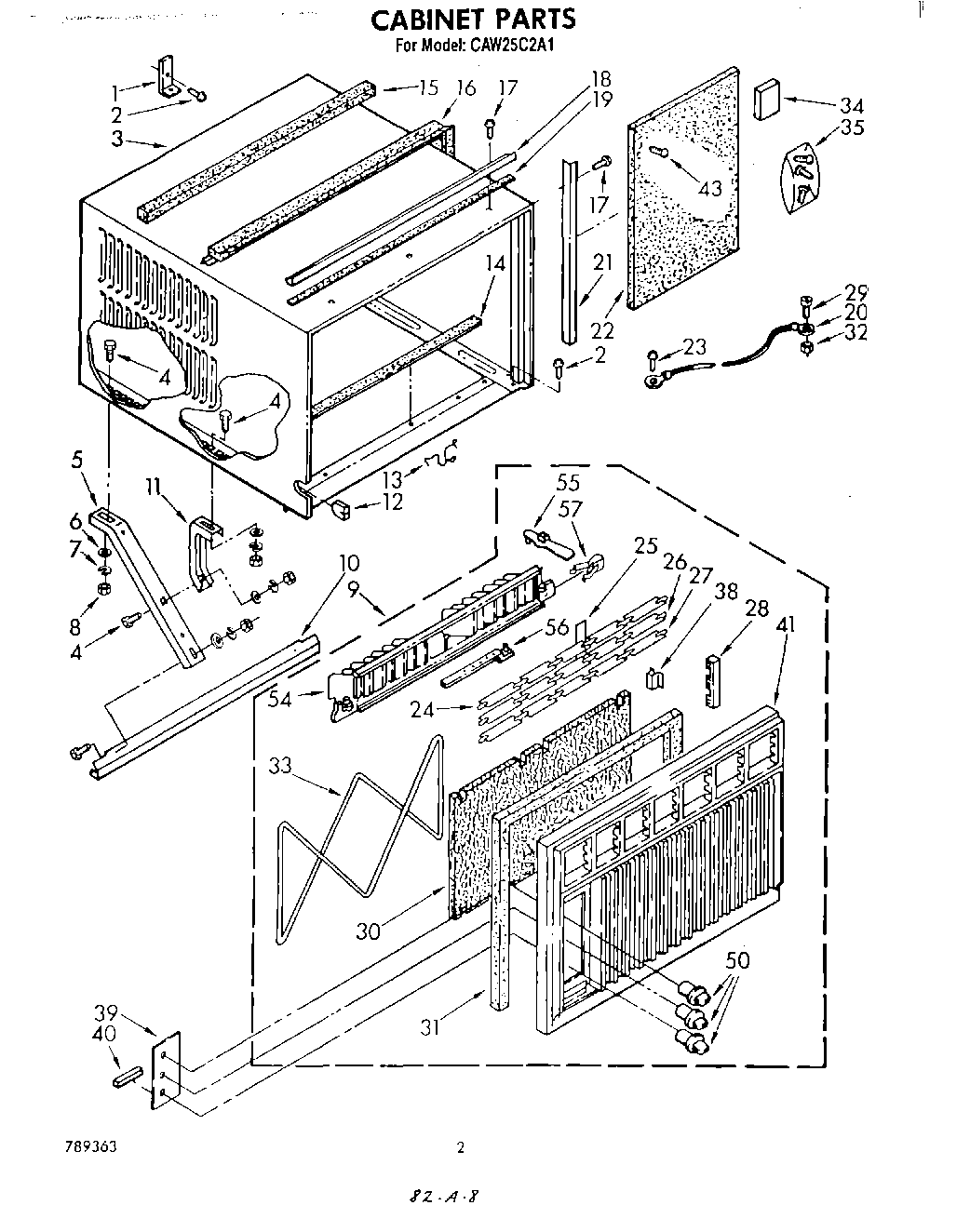

CAW25C2A1 02 – CABINET

Products

PositionProduct
1Bracket
2Screw (Window Lock Bracket)
3Cabinet Also order Insulation NO.1157053 (3)
4Bolt, 1/4 x 3/4 (6)
5Support, Cabinet (2)
6WP120393 Whirlpool Washer Assembly
7Lockwasher (6)
8Nut, Hex (6)
9Front, Complete
10Bracket, Support
11Support, Retainer (2)
12Grommet, Appliance Cable
13Clip, Mtg. (3)
14Seal, Bottom
15Gasket, Meeting Rail
16Gasket, Sash
17WP308685 Whirlpool Microwave Screw
18Angle, Top Mounting
19Strip, Seal
20Wire, Ground
21Angle (2)
22Board, Filler
23Screw, 8 x 3/8
24Louver, Horizontal (4)
25Retainer (4)
26louver, horizontal (handle)
27louver, horizontal (notched)
28Rack, Louver (2)
29Screw, 8 x 3/8
30Filter, Air
31Seal, Front (Top & Sides)
31Seal, Front (Bottom)
32WP486255 Whirlpool Air Conditioner Nut
33Retainer, Filter
34Spacer, Block (4)
35Bag, Accessory
38Clip, Retainer (4)
39Plate, Escutcheon
40Spacer, Escutcheon Plate (2)
41WPL 953018
43WP965173 Whirlpool Dishwasher Screw
50Knob, Control (3)
54WPL 953064
55Handle, Louver (2)
56Link, Louver (2)
57Detent Spring (2)
