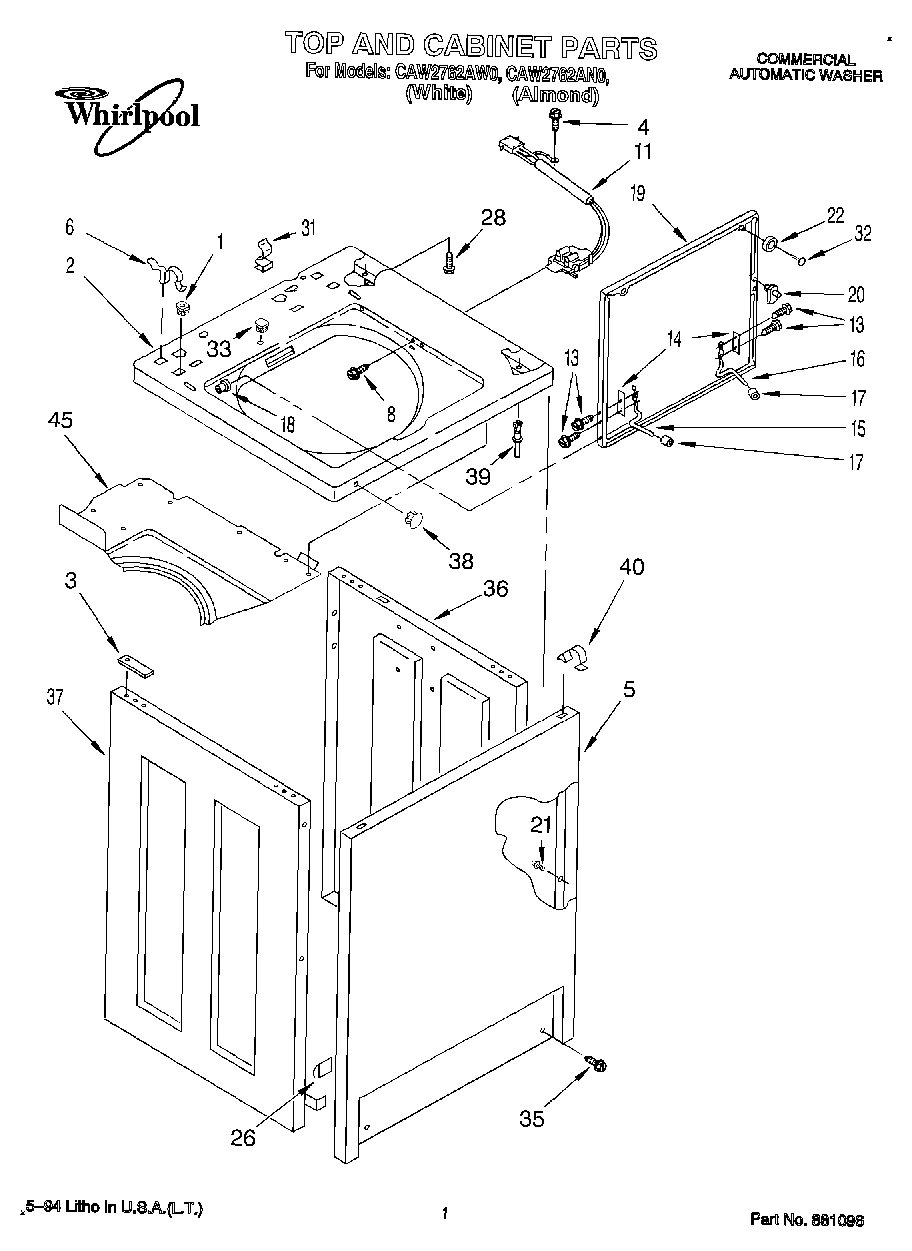

CAW2762AN0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WPL LIT3360614
	WP285195 Whirlpool Sealer Assembly
	WPL LIT881096
	WPL LIT3363472
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	Almond (Uncut)
	Leveler (Thinner)
1	Nut, Push-In (2)
2	Top
2	Top (For Almond Model)
3	Spacer, Cabinet To Top (4)
4	SCREW
5	Panel, Front (Almond)
5	Panel, Front (White)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	Switch, Lid
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (For Almond Model)
19	WPW10193854 Whirlpool Lid Assembly
20	WP358684 Whirlpool Strike Assembly
21	Locator (4)
22	BUMPER
26	WP98234 Whirlpool Nut
28	Screw (2)
31	WP90016 Whirlpool Clip
32	WP356907 Whirlpool Rivet
33	Stop, Push-In Top
35	WP3373329 Whirlpool Dishwasher Screw
36	Panel, R. H. (For Almond Model)
36	Panel, R. H.
37	Panel, L. H. (Almond)
37	Panel, L. H. (White)
38	WP387371 Whirlpool Plug
39	Pin, Locator (2)
40	WP18776 Whirlpool Lock
44	WP90406 Whirlpool Nut
45	Shield, Lid
