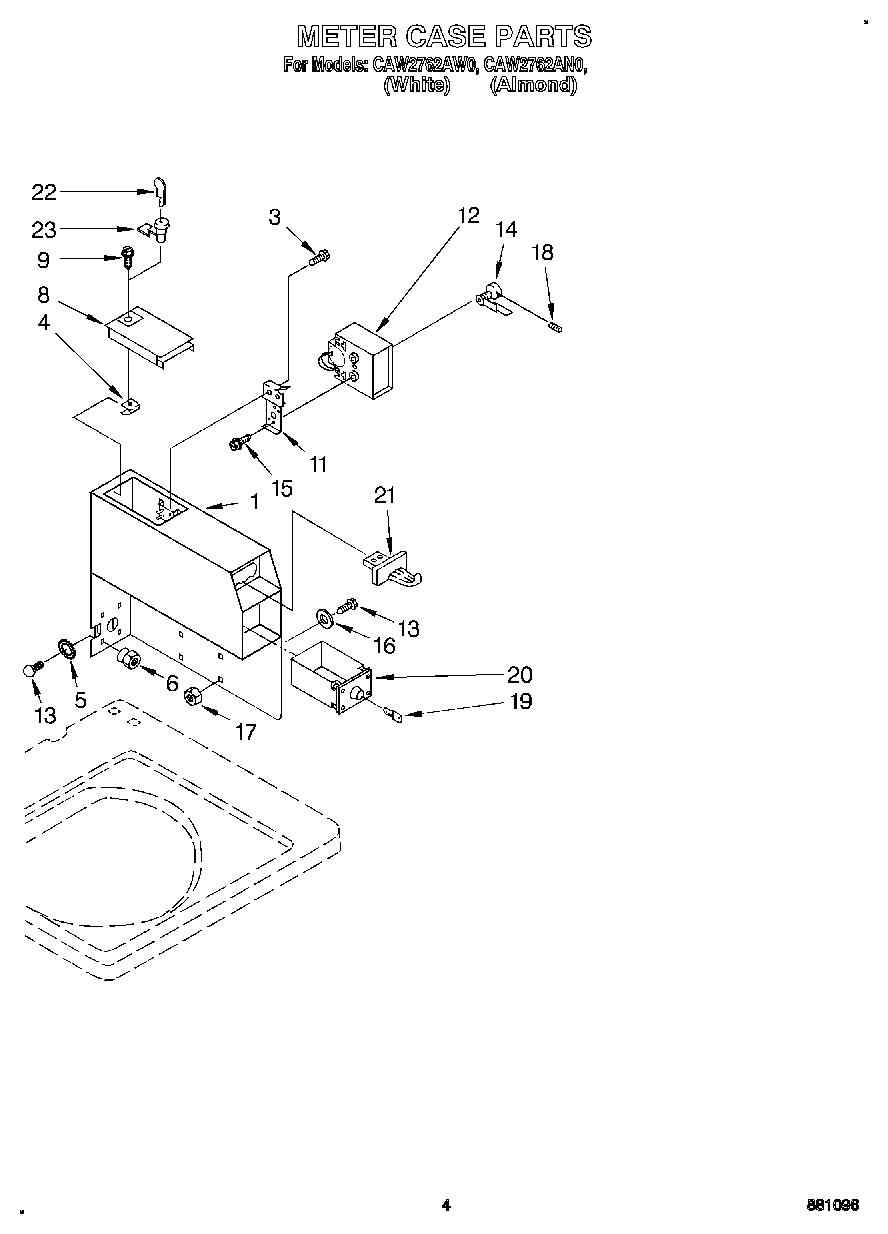

CAW2762AN0 03 – METER CASE

Products

Position	Product
1	Meter Case (For Almond Model)
1	Meter Case (For White Model)
3	Screw, 1/4 x 20 x 3/8
4	WP90406 Whirlpool Nut
5	Washer
6	Nut, Break- A-Way (2)
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
8	Door, Service (For Almond Model)
9	Screw & Washer
11	Bracket, Timer
12	Timer, 115V. – 60Hz.
13	Bolt, 5/16-18 x 3/4 (3)
14	WP354987 Whirlpool C-Clip
14	Clutch, Timer
15	WP356418 Whirlpool Screw
16	WP348197 Whirlpool Washer Assembly
17	90984 Whirlpool Nut
18	Setscrew, 10-32
