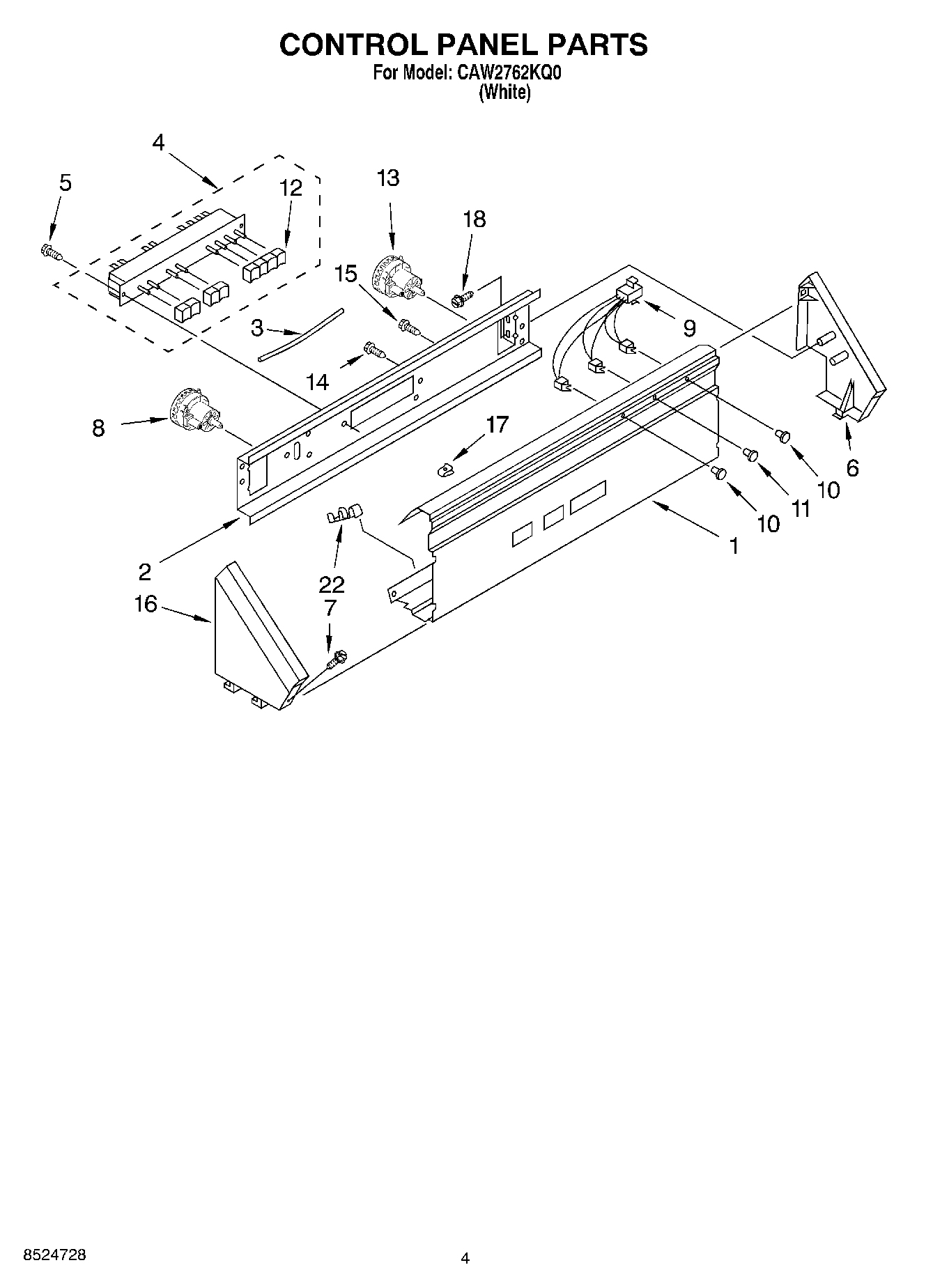

CAW2762KQ0 03 – CONTROL PANEL

Products

PositionProduct
1Panel, Console
2Bracket, Control
3WP353244 Whirlpool Hose
4Switch, Cycle Selector (Includes Illus. No. 12)
5WPW10139210 Whirlpool Screw
6End Cap (R.H.)
7WP8281182 Whirlpool Screw Assembly
8W10339319 Whirlpool Washer Water Level Switch
10WP3348109 Whirlpool Light Lens
11WP3348110 Whirlpool Light Lens
12SWITCH-PB
13Assembly, Pressure Switch-T
143400073 Whirlpool Screw
15WP90767 Whirlpool Screw
16W11686050 Whirlpool Drive Motor
17WP689559 Whirlpool Nut
18WPW10109200 Whirlpool Screw
22W10113937 Whirlpool Clamp
