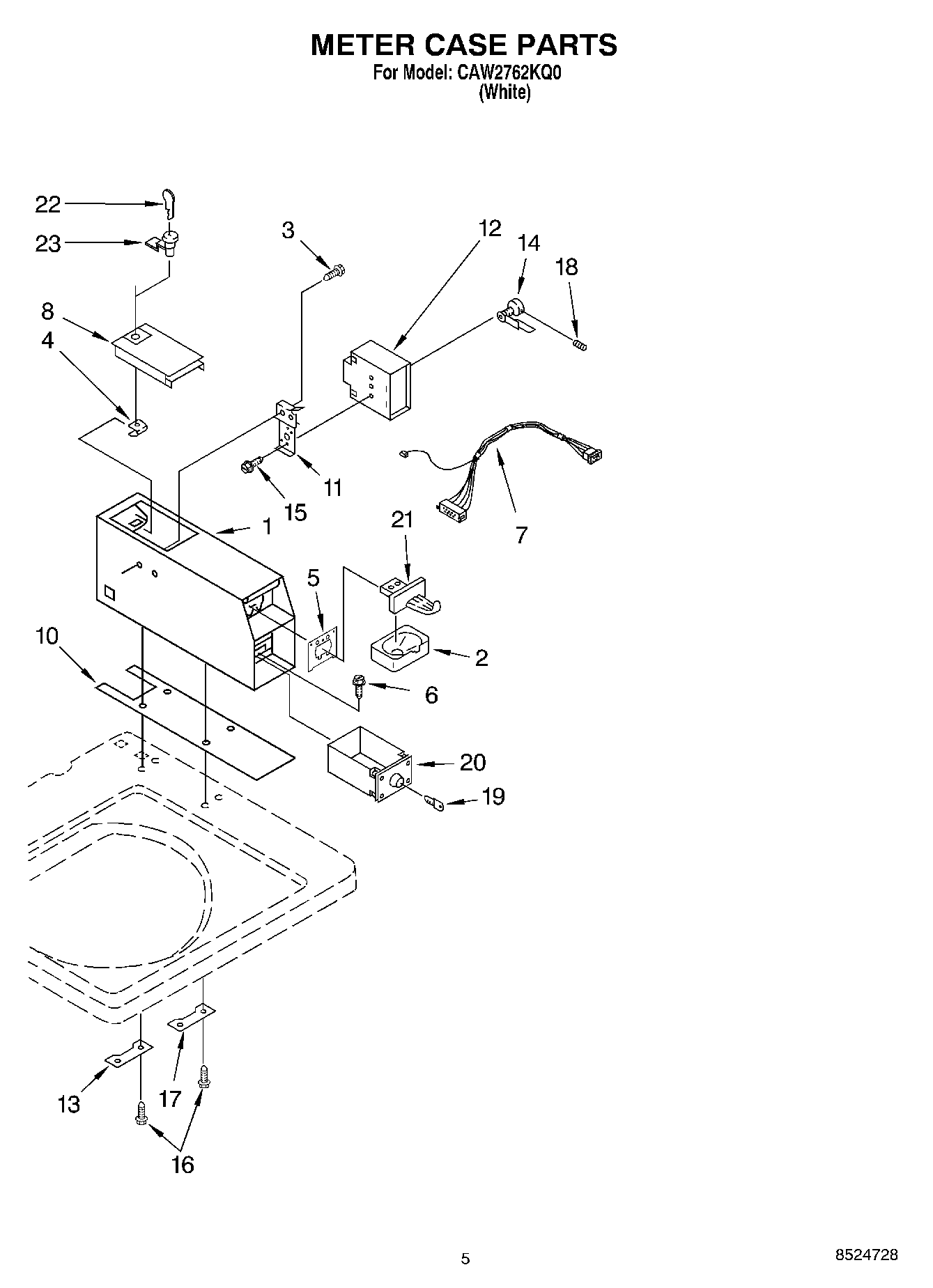

CAW2762KQ0 04 – METER CASE

Products

Position	Product
1	WPW10461200 Whirlpool Case
2	WP385421 Whirlpool Coin Operated Laundry Funnel
3	339805 Whirlpool Screw
4	WP90406 Whirlpool Nut
5	279950 Whirlpool Funnel
6	W11715721 Whirlpool Screw Assembly
6	3353994 Whirlpool Screw Assembly
7	Wire Harness, Timer
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
10	WP3954812 Whirlpool Cushion
11	Bracket, Timer
12	Timer, 60 Hz.
13	Plate, Mounting
14	Clutch, Timer
14	WP354987 Whirlpool C-Clip
15	WP3400064 Whirlpool Screw
16	W10841059 Whirlpool Screw
17	3347825 Whirlpool Plate
18	Setscrew, 10-32
19	Key, Money Box
20	Money Box With Lock
22	Fascia, Disp (Black)
23	Security Lock & Cam Assembly
