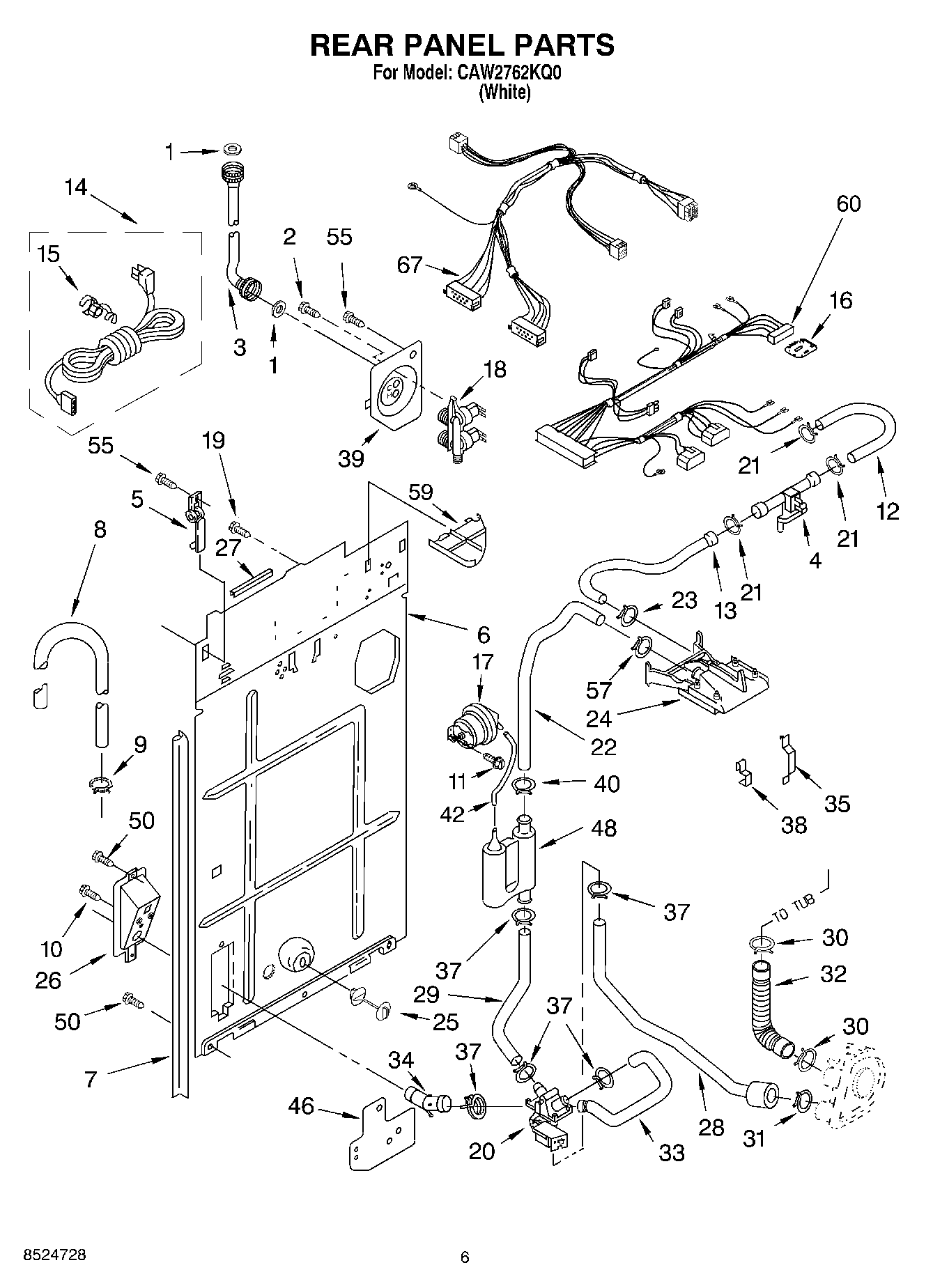

CAW2762KQ0 05 – REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP3949380 Whirlpool Fill Hose
3	WP3949381 Whirlpool Fill Hose
4	Sensor-ETC-Inline
5	Hinge, Console (2)
6	285929 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WP96743 Whirlpool Hose
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
9	WP371502 Whirlpool Clamp
10	Screw (2)
11	WP3351614 Whirlpool Screw
12	Hose, Sensor (Upper)
13	Hose, Sensor (Lower)
14	285928 Whirlpool Power Cord Assembly
15	Strain Relief, Power Cord
16	E.T.C. Control
17	Pressure Switch
18	285805 Whirlpool Washer Water Inlet Valve
20	Valve, Two-Way
21	WP596669 Whirlpool Hose Clamp
22	Hose, Air-Dome To Vacuum Break
24	Break, Vacuum
25	WP8519200 Whirlpool Support Assembly
26	Bracket, Valve Mounting
27	Edge Protector
28	Hose, Pump To Two-Way Valve
29	Hose/Two-way Valve To Air Dome
30	WP616099 Whirlpool Clamp
31	WP356138 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Hose-Two Way Valve/ To Drain
34	Connector, Hose
35	Clip, Harness
37	WP285655 Whirlpool Hose Clamp
38	Clip, Harness
39	285930 Whirlpool Plate
42	WP353244 Whirlpool Hose
46	Shield, Valve
48	Air Dome
50	WP3390631 Whirlpool Screw
55	WP488729 Whirlpool Refrigerator Door Screw
57	3363365 Whirlpool Clamp
59	WPL 3348424
60	Harness, Wiring (For Detail See Page 12.) Als
67	WPL 3954900
